5.
Click OK and the Add Device screen closes. The start-up screen, which was behind
it, is now visible. The device configuration tree, in the panel to the left of the main
screen, shows the IPL 250 and the available ports:

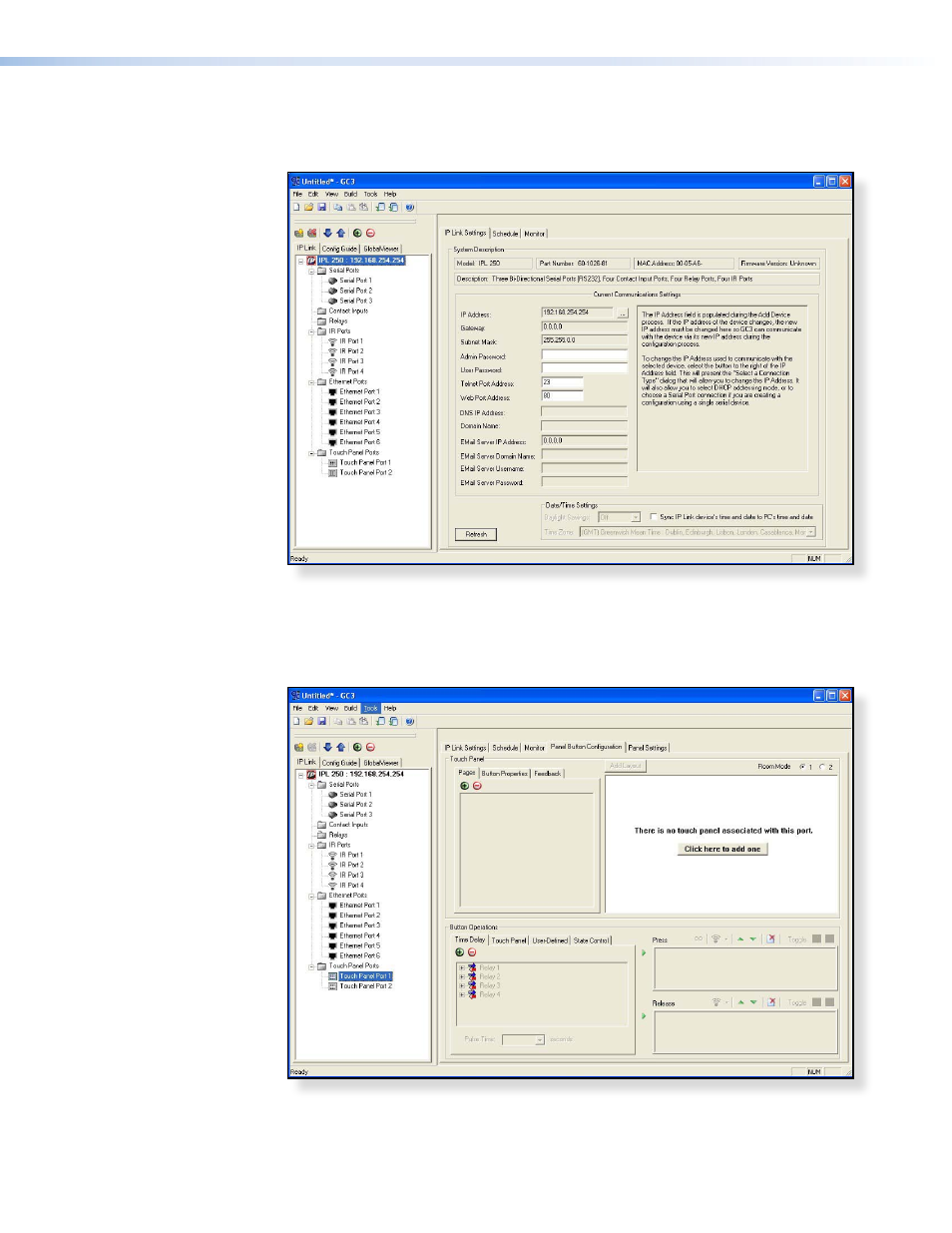

Figure 27.
Configuring an IP Link Device
6.
Select Touchpanel Port 1. The screen shows the available options for the
TouchLink Panel. To add the GUI Configurator project that was uploaded to the
TouchLink Panel, click Click here to add one.
Figure 28.
Adding a TouchLink panel
TLP 700MV and TLP 700TV • Control Software
29
