Using GUI Configurator
This section provides an overview of the GUI Configurator program. For complete
information about the program, consult the GUI Configurator help file (click on
Contents in the Help menu or press the
To use the GUI Configurator program, follow these instructions:
1.
Click on the desktop icon. The program opens at the main screen with the GUI
Configurator Start Options dialog box in front.

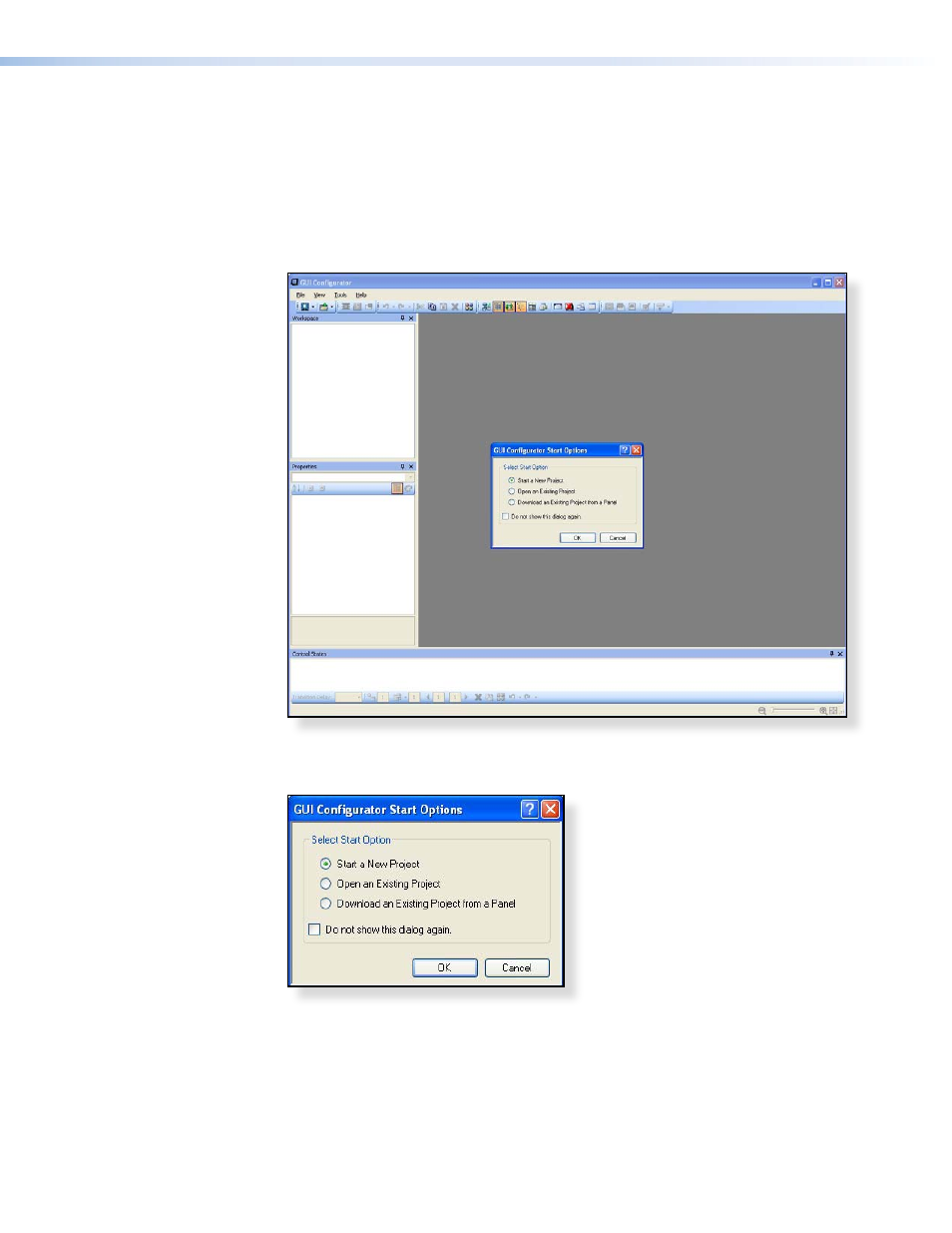

Figure 16.
GUI Configurator: Main and GUI Configurator Start Options
Screens
Figure 17.
GUI Configurator Start Options Dialog Box
TLP 700MV and TLP 700TV • Control Software
21
