TLP 700TV Base Features
17
C Gain Vid /
Y
Gain Sharp 33-1814-01
A
19
18

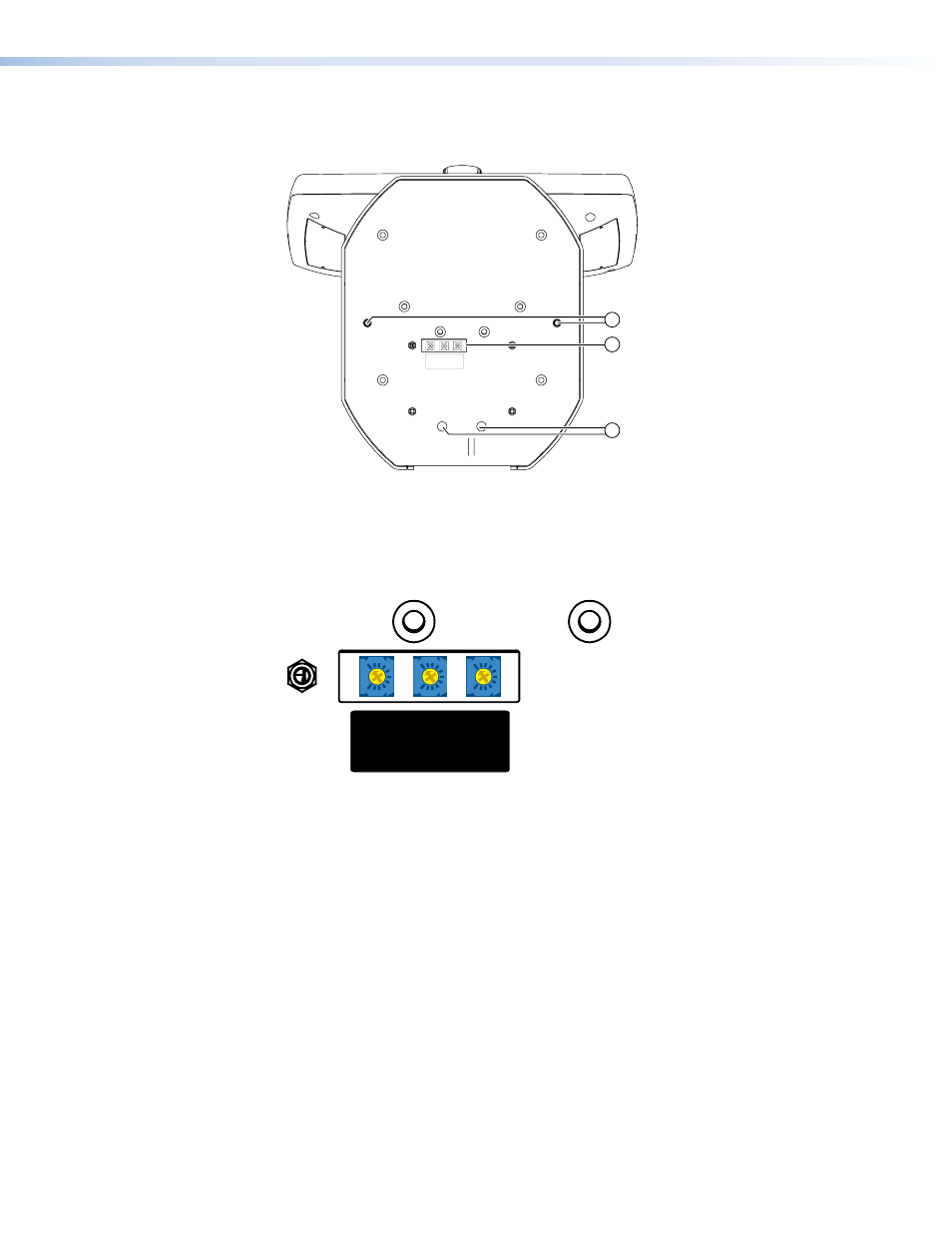

Figure 8. TLP 700TV Base Features
The TLP 700TV stand, which can be removed for VESA mounting, has:
q
Three adjustable potentiometers — These are used to control sharpness and gain
for both S-video luminance (Y) and S-video chrominance (C). If a composite video
signal is being used, the gain is controlled by the center potentiometer (Vid/Y).
C Gain Vid/Y Gain Sharp
33-1814-01
A
Figure 9. TLP 700TV Potentiometers
r
Access for disconnecting RJ-45 connectors — When RJ-45 connectors are covered
with a protective boot, it can be difficult to remove them from their sockets. The two
holes are directly underneath the two RJ-45 jacks (
see figure 7 ). Pushing the tip of a
pen or pencil through the holes makes it easy to disconnect the RJ-45 connectors.
s
Security mounting — If required, secure the unit to the desktop , using two
screws, as described on page 41.
TLP 700MV and TLP 700TV • Panel Features 10
