MKP 1000/1200 • Specifications and Part Numbers MKP 1000/1200 • Specifications and Part Numbers
Specifications, Part Numbers, and Accessories
Height of silicone gask
et = 4.63" (11.7 cm)
Width of silicone gasket = 4.69" (11.9 cm)
The dotted line is the recommended
cut-out area for the circuit board.
3.63" x 3.0" (9.2 cm x 7.6 cm)
A-6 A-7

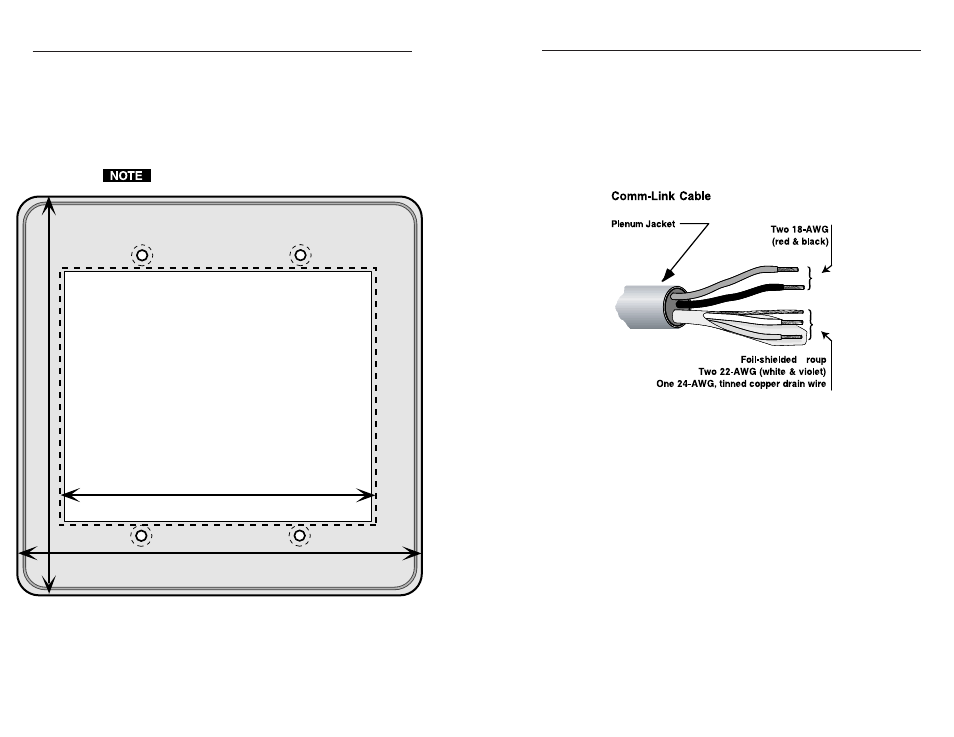

Template for Panel Mount Cutout
Figure A-5 is a drawing that shows the dimensions for cutting a hole to
accommodate the keypad circuit board for mounting the keypad on a flat
surface. This type of installation can include a desk or podium, or a
control panel or dash board, where the back is protected and does not
require an electrical box.
Drawn to scale; may be used as a template.
Figure A-5 — Template for panel mount cutout
(drawn to scale)
Extron Comm-Link cable
Wire specifications are as follows:
A (red) = 18 AWG
B (violet or blue) = 22 AWG (grouped and shielded)
C (white) = 22 AWG
D (Drain) = 24 AWG
E (black) = 18 AWG
Figure A-6 — Extron’s Comm-Link cable was
designed for use with MKP keypads
