MKP 1000/1200 • Specifications and Part Numbers MKP 1000/1200 • Specifications and Part Numbers
Specifications, Part Numbers, and Accessories
Dimensions
It is not necessary to use the electrical box described here. Any standard
box (wet location rated box for the MKP 1000 WT) that meets the local
electrical codes may be used.
Because tolerances on standard electrical box dimensions are
very loose, be sure to measure the actual box that you plan to use
before making precise cuts.

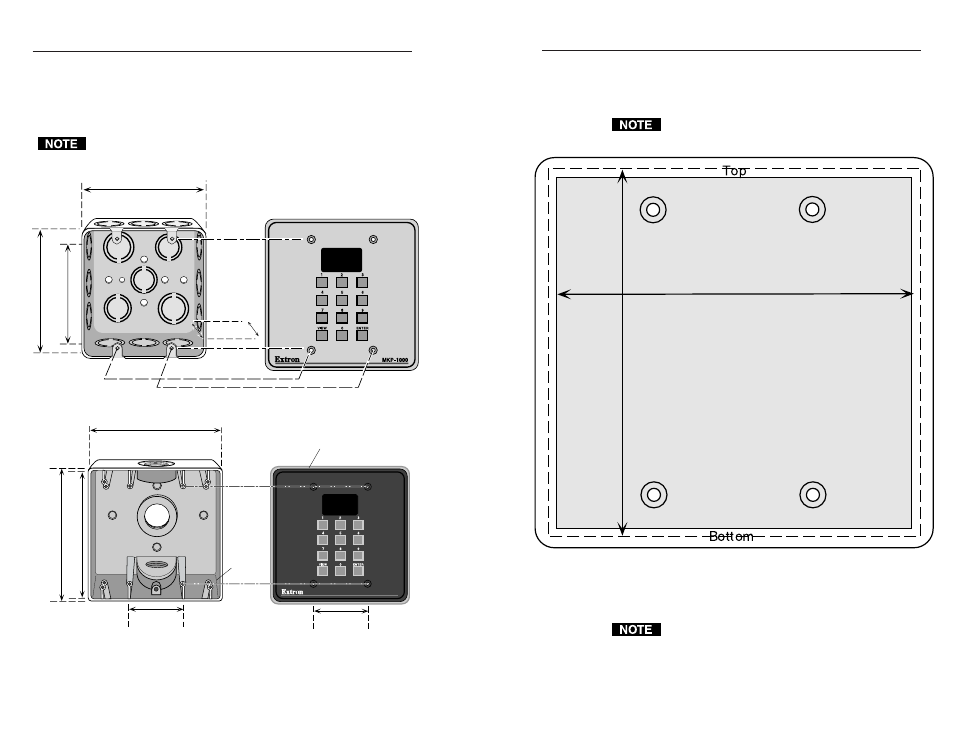

Figure A-1 — Dimensions of wall plate and 2-gang
electrical wall box
Figure A-2 — Dimensions of wall plate and wet
location rated, 2-gang electrical box
Inside Depth
= 2.20" (5.59 cm)
Outside Width of Box
= 4.10 (10.41 cm)
Inside = 3.89" (9.88 cm)
Hole Spacing
= 1.8" (4.57 cm)
Inside Clearance Height
= 2.90" (7.37 cm)
Height of Box = 4.05" (10.29 cm)
Inside Depth
= 2.25" (5.2 cm)
Waterproof Silicone Shield
MKP-1000WT
Hole Spacing
= 1.875" (4.7 cm)
Outside Width of Box
= 4.5" (11.5 cm)
Inside = 4.375" (11 cm)
Height of Bo
x = 4.5" (11.5 cm)
Inside Clear
ance Height
= 4.5" (11.5 cm)
Hole Spacing
= 1.875" (4.7 cm)
Template for Electrical Box Cutout
Figure A-2 is a drawing that shows the dimensions for cutting a hole to
accommodate a standard, 2-gang electrical box for the MKP keypads.
Drawn to scale; may be used as a template.
Figure A-4 — Template for electrical box cutout
(drawn to scale)
Because the tolerances on electrical boxes are loose, it is
recommended that measure the actual box that you plan
to use before making the cutout.
A-4 A-5
(4.1 x 4.1 inches)
(10.4 cm x 10.3 cm )
(4.3 x 4.25 inches)
(10.9 cm x 10.8 cm)
The light gray area is the layout of the electrical
box against the dress panel
The dotted line is the recommended
cut-out area for the electrical box
