MKP 1000/1200 • Specifications and Part Numbers MKP 1000/1200 • Specifications and Part Numbers
Specifications, Part Numbers, and Accessories
A-3 A-2
Specifications
The MKP 1000 WT is electrically and functionally identical to
the MKP 1000. The MKP 1000 WT includes a watertight,
silicone seal designed to keep moisture out of the enclosure. A
wet location rated, 2-gang electrical box is included with every
MKP 1000 WT. The MKP 1200 specifications are different
where noted.
Control/remote — keypad
Extron remote key pad control .. (2) 3.5 mm 5-pole captive screw connectors
General
Power
MKP 1000 and WT ........... Supplied by the matrix switcher or MCP
1000 Master
MKP 1200 .......................... Supplied by Matrix 12800 or 100VAC to
240VAC, 50/60 Hz, 12 watts, external,
autoswitchable; to 12VDC, 1 A power
supply (#70-055-01).
Temperature/humidity .............. Storage -40° to +158°F (-40° to +70°C) /
10% to 90%, non-condensing
Operating +32° to +122°F (0° to +50°C) /
10% to 90%, non-condensing
Rack mount ................................... No, but furniture/wall mountable in a
wall box
Enclosure type .............................. Metal
Enclosure dimensions ................. Plate ........... 4.5" H x 4.6" W x 0.1” D (2
gang) (11.4 cm H x 11.7 cm W
x 0.3 cm D)
Box ............. 4.1" H x 4.1" W x 2.4" D (2
gang) 10.4 cm H x 10.4 cm W
x 6.1 cm D
Boards ........ 2.9" H x 3.5" W x 1.0" D
(7.4 cm H x 8.9 cm W x 2.5
cm D) Allow at least 1” (2.5
cm) D for connectors and
cable. (Depth excludes
connectors.)
Product weight
MKP 1000 .......................... 0.3 lbs (0.1 kg)
MKP 1000WT .................... 0.4 lbs (0.2 kg)
MKP 1200 .......................... 0.4 lbs (0.2 kg)
Shipping weight
MKP 1000 .......................... 2 lbs (0.9 kg)
MKP 1000WT .................... 3 lbs (1.4 kg)
MKP 1200 .......................... 2 lbs (0.9 kg)
Vibration ....................................... ISTA/NSTA 1A in carton (International
Safe Transit Association)
Listings .......................................... UL, CUL
Compliances ................................. CE, FCC Class A
MTBF ............................................. 30,000 hours
Warranty ....................................... 3 years parts and labor
Specifications are subject to change without notice.
Engineering Drawing

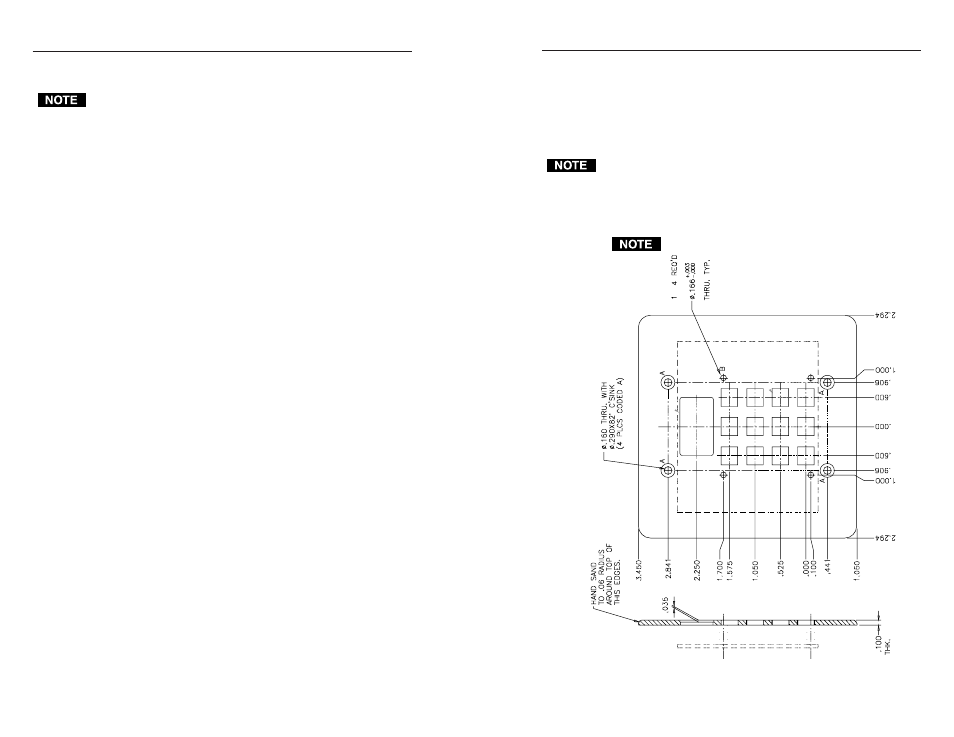

Figure A-3 is an engineering drawing showing the mechanics of the MKP
wall plate. Use these dimensions if you are making custom wall plates.
The drawing is not to scale.
Figure A-3 — Engineering drawing for MKP Wall
Plate (not to scale)
