MKP 1000/1200 • Operating the MKP Keypads MKP 1000/1200 • Operating the MKP Keypads
Operating the MKP Keypads, cont’d
3-7 3-6
Programming the MKP 1200
These procedures must be done by a programmer or a technician and not
by the user.
Checking the MKP 1200 Program
To check the current settings for a keypad, enter the program mode and
note the displayed information as you press the Enter key to step
through the sequence shown in Figure 3-6. If an error occurs at any time
during the configuration process, you must start at #1 again.
1. Press the 4-key combination and
hold until the display shows
[Add]
, and then a number. This
number is the current address
assigned to this keypad (1-128).
2. Press Enter to display the current
mode:
Gpr
= Global Preset mode
out = Output to Input mode
rPr = Room Preset mode
For this example, the MKP 1200 is
in Room Preset [rPr] mode.
3. Press Enter to view the current
setting (“room” number for this
example).
Because this example is
for Room Preset [rPr]
mode, 6 is the room
number. If the keypad
were in Output [out]
mode, the assigned
output number would
be now be displayed. In
Global [Gpr] mode, this
step (#4) would be
skipped.
4. Press Enter the last time to return
to the default display.

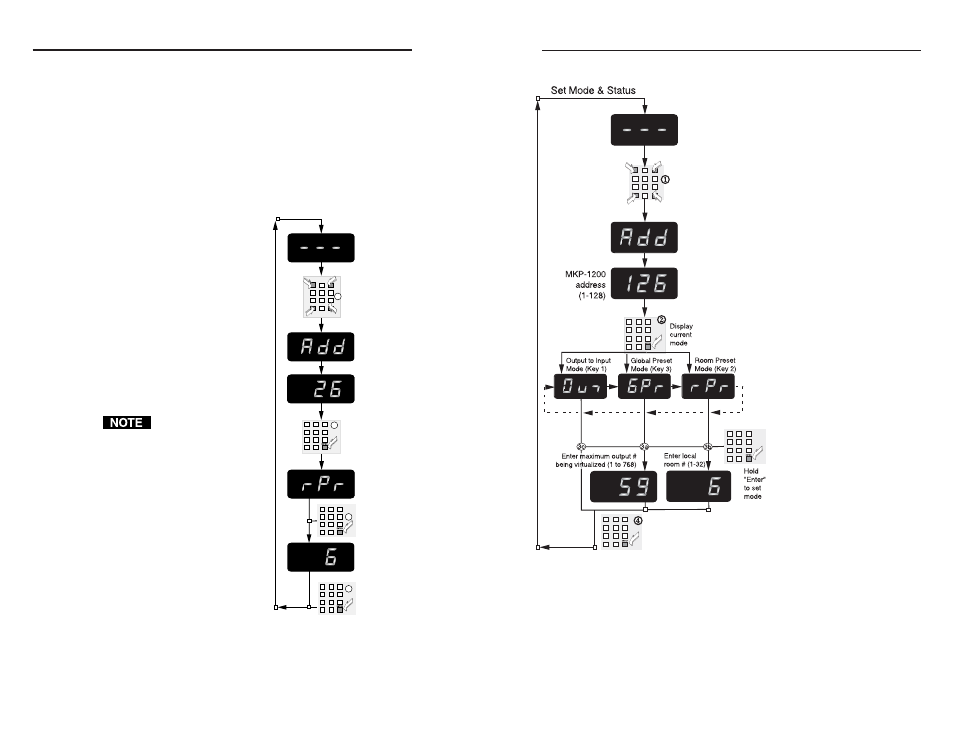

Figure 3-6 — Display the
current mode and settings
Changing a Program in an MKP 1200
To change the current settings for a keypad,
enter the program mode and press the Enter
key to step through the sequence the same
as on page 3-9, but this example shows how
to change the MKP 1200 address, its mode
and/or the output or room number. Follow
the example shown in Figure 3-7.
1. Press the 4-key combination and hold it
until the display shows [Add], and then a
number. This number is the current address
assigned to this keypad (1-128). This
example shows [126].
2. Press Enter to display the current mode.
3. Press Enter to accept the mode.
3a. If out: display current Output number
or enter a new number.
3b. If rPr: display Room number or enter
new room number.
3c. If Gpr: no number will
display; skip to 4.
4. Press Enter to accept current
settings and return to the default
display.
Figure 3-7 —
Configure the MKP
1200 for address,
mode, room, and
output option
Programming the MKP 1200 from the switcher
MKP 1200 Remote Keypads can also be programmed from the Matrix
12800 using the Extron 12800/6400/3200 Virtualization/Control program
via a network or RS-232 connection.
To program the keypad from the switcher:
1. Access the switcher using the Extron 12800/6400/3200
Virtualization/Control program.
2. Click on Tools at the top of the initial screen.
Room
Preset
mode
MKP-1200
address
(1-128)
Local room
# (1-32)
Press "Enter"
to display
current mode
Press "Enter"
to display
current setting.
Press "Enter" to
accept current
mode and setting.
If the wrong rPr
number is entered,
press "Clear"
and enter the
correct number.
Press and hold
4-key combination
until display shows
"Add", then the
address number.
4
3
2
1
Accept current
mode and setting.
