Activating the USB Port for the First Time
NOTE: When DataViewer is installed on your computer, the Extron USB Driver is
installed at the same time. This driver is required to connect your computer to
any Extron product with a USB port.

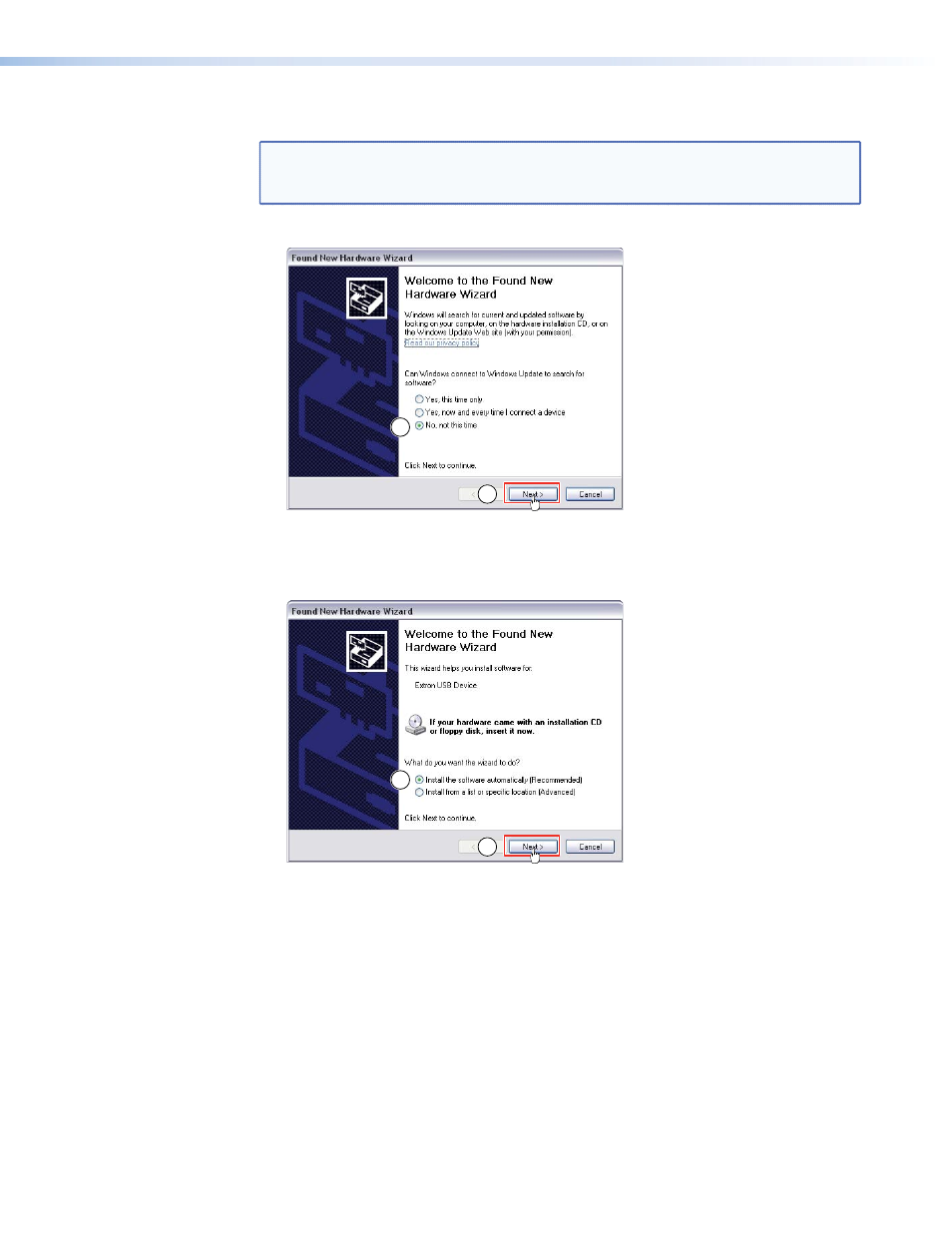

When the USB connection is made, the Found New Hardware Wizard opens automatically.
1
1
Figure 10.
Hardware Wizard — 1
1.
Select
No,
not
this
time
and click
Next
.
The second Hardware Wizard screen opens:
2
2
Figure 11.
Hardware Wizard — 2
2.
Select
Install
the
software
automatically
and click
Next
.
Follow the on-screen instructions. The wizard installs the driver necessary to access the
MLA VC10 Plus USB port (this may take a few minutes).
3.
Click
Finish
to exit the wizard.
Using DataViewer
To use DataViewer, see the help file that comes with the program. The help file can be
accessed by opening the program and either press the
key or clicking on
Use help
in
the
Help
menu.
MLA VC10 Plus • Software Control
17
