RS-232 Connections
Connections to an Extron Control Processor
Control processors issue SIS commands to the MLA VC10 Plus. For a list of SIS commands,
see the “
Command and Response Table for SIS Commands ,” starting on page 33.
NOTE: For permanent installations, use the RS-232 port, not the front panel USB port.
Serial drivers for Extron control processors are available for free download from the Extron
website . These drivers are used to configure the control processor quickly and efficiently
so that it will work with the MLA VC10 Plus. See the user guide for your control processor,
which is also available on the Extron website.
Connect the MLA VC10 Plus to a MediaLink or IP Link control processor, as follows.
Connecting the MLA VC10 Plus to a MediaLink control processor
TIP: When connecting to a MediaLink control processor, Extron recommends using the
MLS port, as shown in figure 8 , although other serial ports may also be used.
1. Connect the Transmit (Tx) socket on the rear panel of the MLA VC10 Plus to the
Receive (Rx) socket (labeled “A”) on the MediaLink control processor.
2. Connect the Receive (Rx) socket of the MLA VC10 Plus to the Transmit socket (labeled
“B”) on the MediaLink control processor (see figure 8 below).
3. Connect the ground (G) socket of the MLA VC10 Plus to the ground socket of the
MediaLink control processor.
RS-232 12V
MLS PWR
A B
Rx Tx
GR
OUND
GR
OUND
+12V IN
Extron MLA VC10 Plus
MLC 104 IP Plus
Serial Port
OR
COM1
TX RX TX RX
COM2
IPL T SFI244
Serial Port
Rx -
Tx
Tx - Rx Ground (G)
RS-232
Tx Rx G

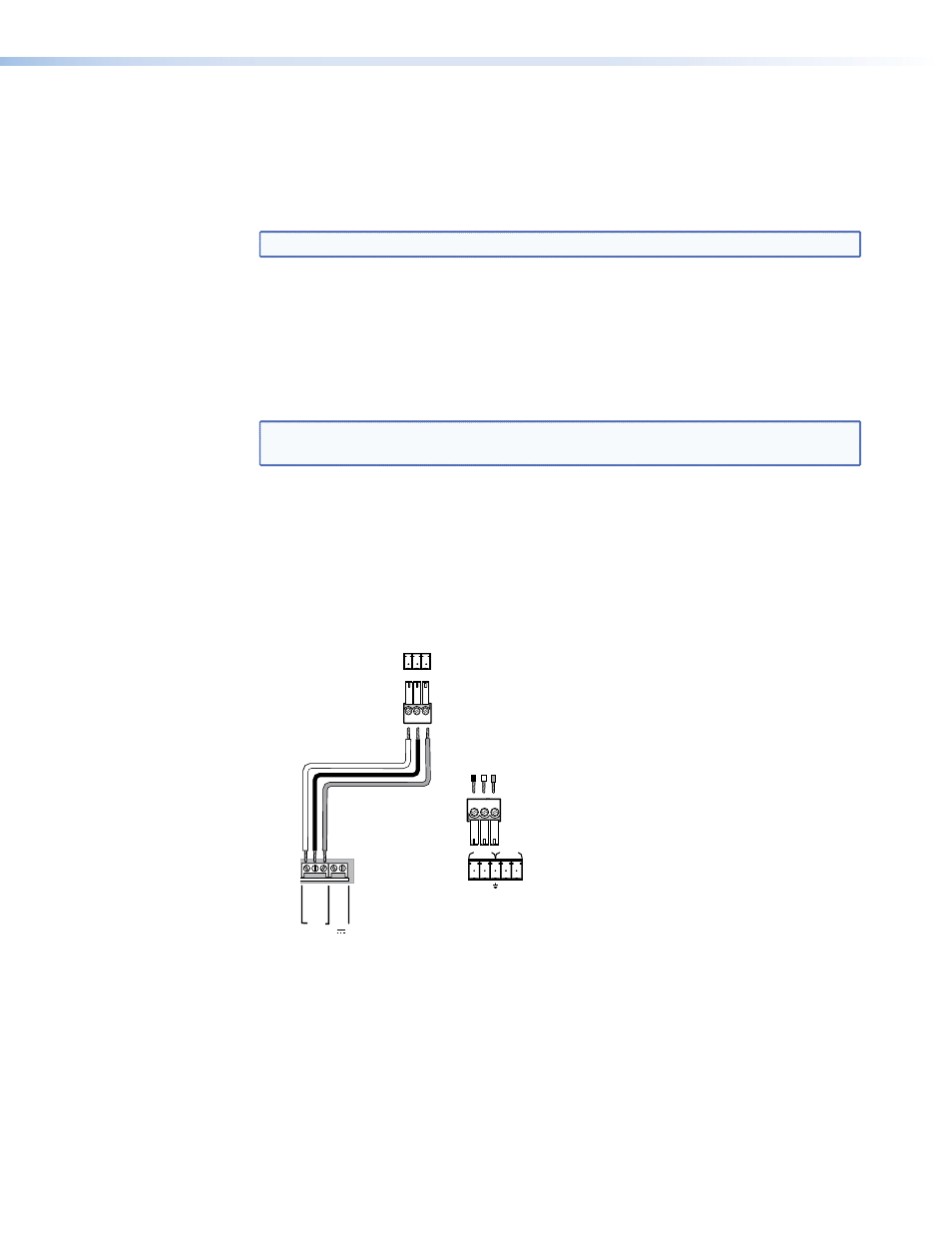

Figure 8. Connecting an Extron Control Processor to the MLA VC10 Plus
