4-21 MAV 44 / 48 / 84 / 88 Matrix Switchers • Remote Operation

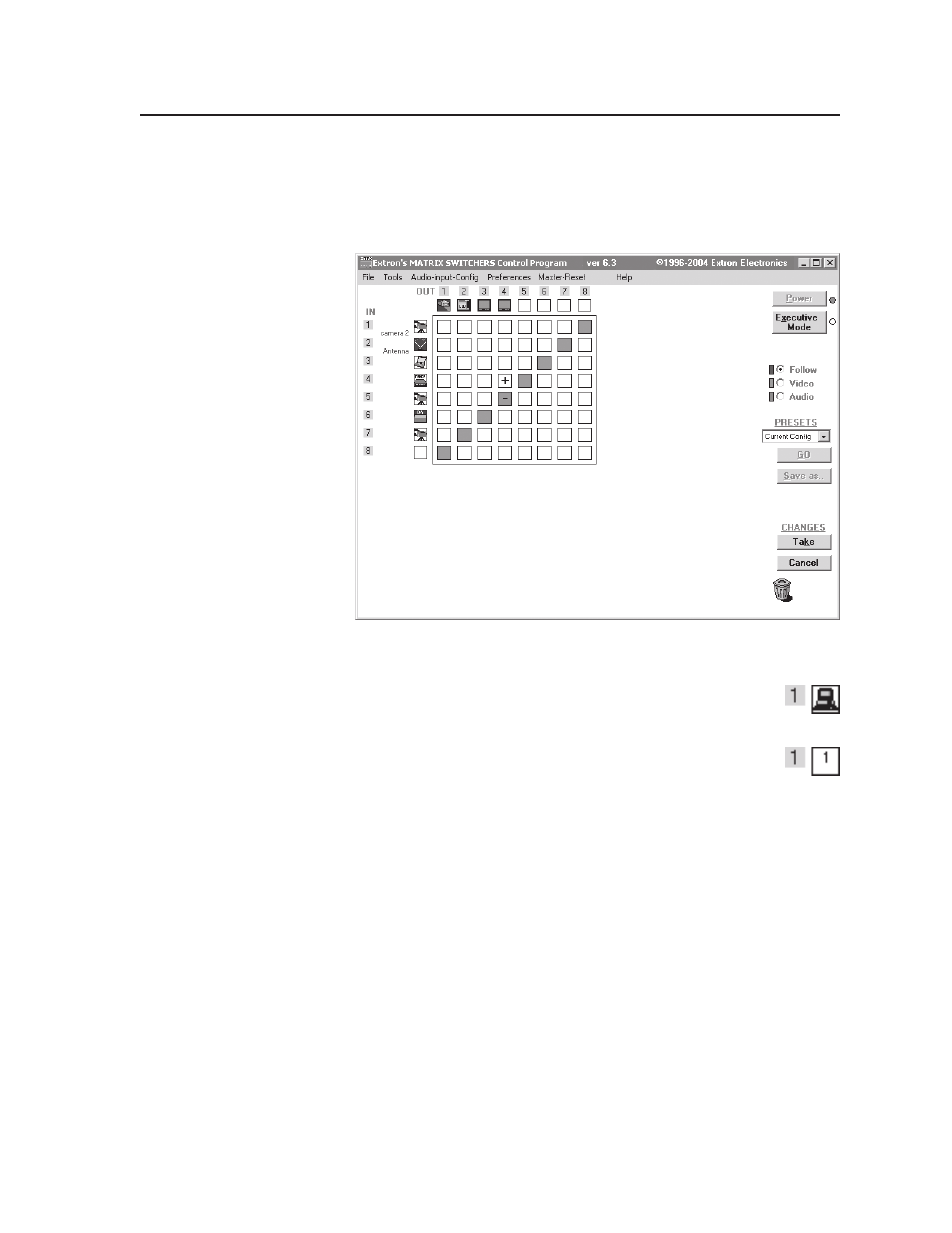

Ties as crosspoints — Displays ties as a grid of inputs and outputs
(figure 4-18). Existing ties are indicated as orange (video and audio),
green (video only), or red (audio only) boxes. New ties that will take
effect when you click the Take button are indicated by +. Ties that will be
broken when you click the Take button are indicated by –.
Figure 4-18 — Ties shown as crosspoints
Icons in I/O boxes — Erases any numbers in the I/O boxes in either
the the ties-as-lines window or ties-as-boxes window. You can
place icons in the boxes.
Numbers in I/O boxes — Erases any icons in the I/O boxes in
either the ties-as-lines window or ties-as-boxes window and
fills each box with the associated input or output number.
Master-Reset selection
Clears all ties and presets, clears all video and audio mutes, sets all input
audio gains to unity gain (+0dB), and sets all output levels to the factory
default (-12 dB for captive screw audio connector [A] models, 0 dB for
RCA audio connector [A RCA] models).
