Operation, cont’d
MAV 44 / 48 / 84 / 88 Matrix Switchers • Operation 3-18
Example 7: Recall a preset
The following steps show an example in which a preset is recalled to become the
current configuration. The example shows the front panel indications that result
from your actions.

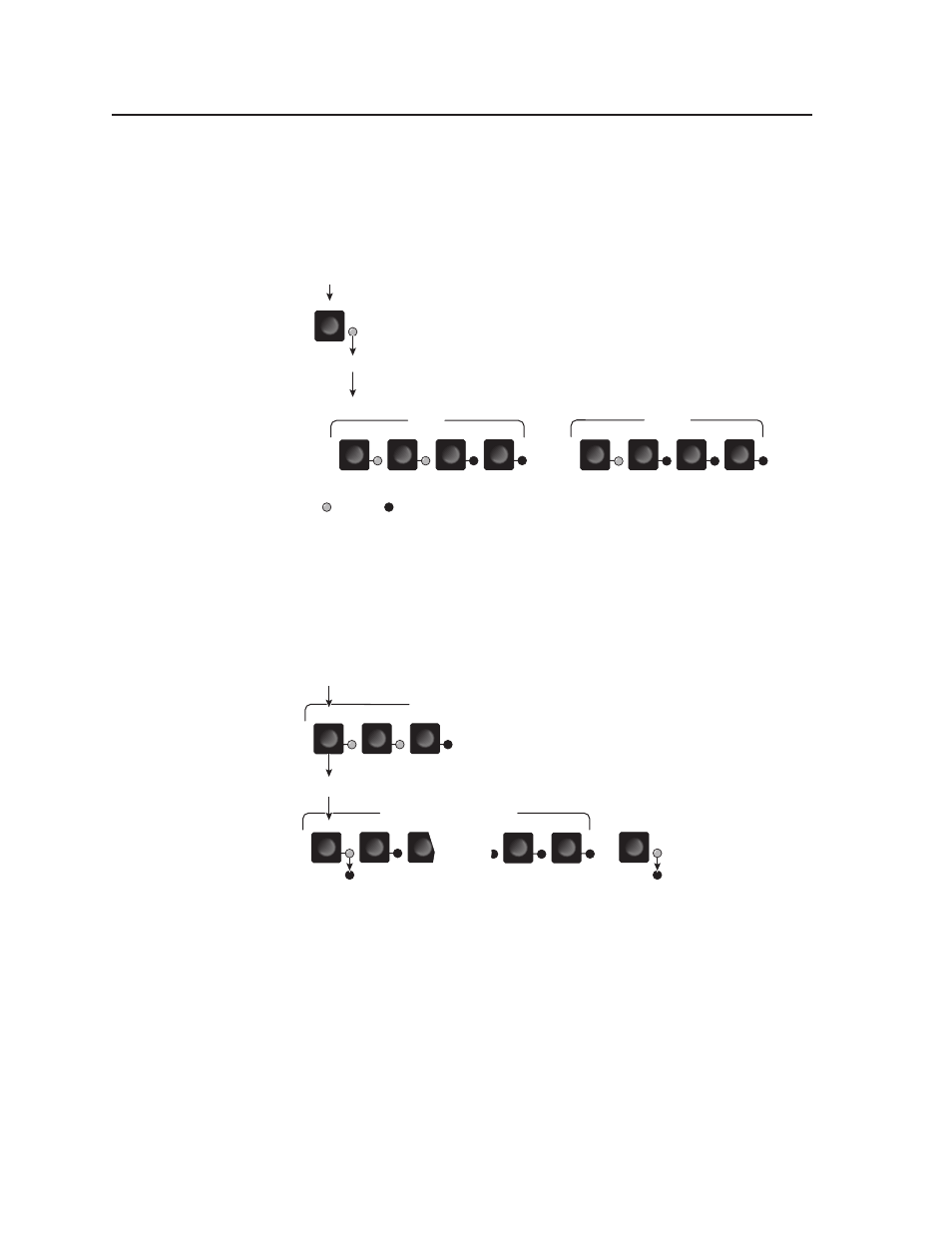

1 . Press and release the Preset button (figure 3-29).
PRESET
2 1 4 3
OUTPUTS
2 4 1
INPUTS
3
Press and release the button.
The LED lights to indicate Recall Preset mode.
= lit LED, = unlit LED.
Preset 2 Preset 3 Preset 4 Preset 5 Preset 6 Preset 7 Preset 8 Preset 1
All input and output buttons with assigned presets light.
Figure 3-29 — Select Recall Preset mode, MAV 44
2 . Press and release the Input 1 button (figure 3-30).
All LEDs but Input 1 and the Preset LED go out. The Input 1 LED and Preset
LED remain lit for 1 second to indicate the recalled preset number and then go
out.
2 1 3
2 1
INPUTS
3 PRESET 3 4
OUTPUTS
Press and release the Input 1 button to select preset 1.
Preset 2 Preset 3
The LED for the recalled preset and the Preset LED
remain lit for 1 second then go out.
All LEDs except the recalled preset's LED go out.
Figure 3-30 — Select the preset, MAV 48
