3-13 MAV 44 / 48 / 84 / 88 Matrix Switchers • Operation
Example 4: View ties by selecting an input
The following steps show an example of viewing the video and audio, audio-only,
and video-only ties in the current configuration by selecting an input. The example
shows the front panel indications that result from your actions.
This example assumes that you have performed example 1, example 2,
and example 3.
1 . Audio/video switchers only — Select both video and audio for viewing
(figure 3-19).
I/O
AUD
VID
Press the button to cycle
through the selections.
The video LED lights when video is selected.
The audio LED lights when audio is selected.

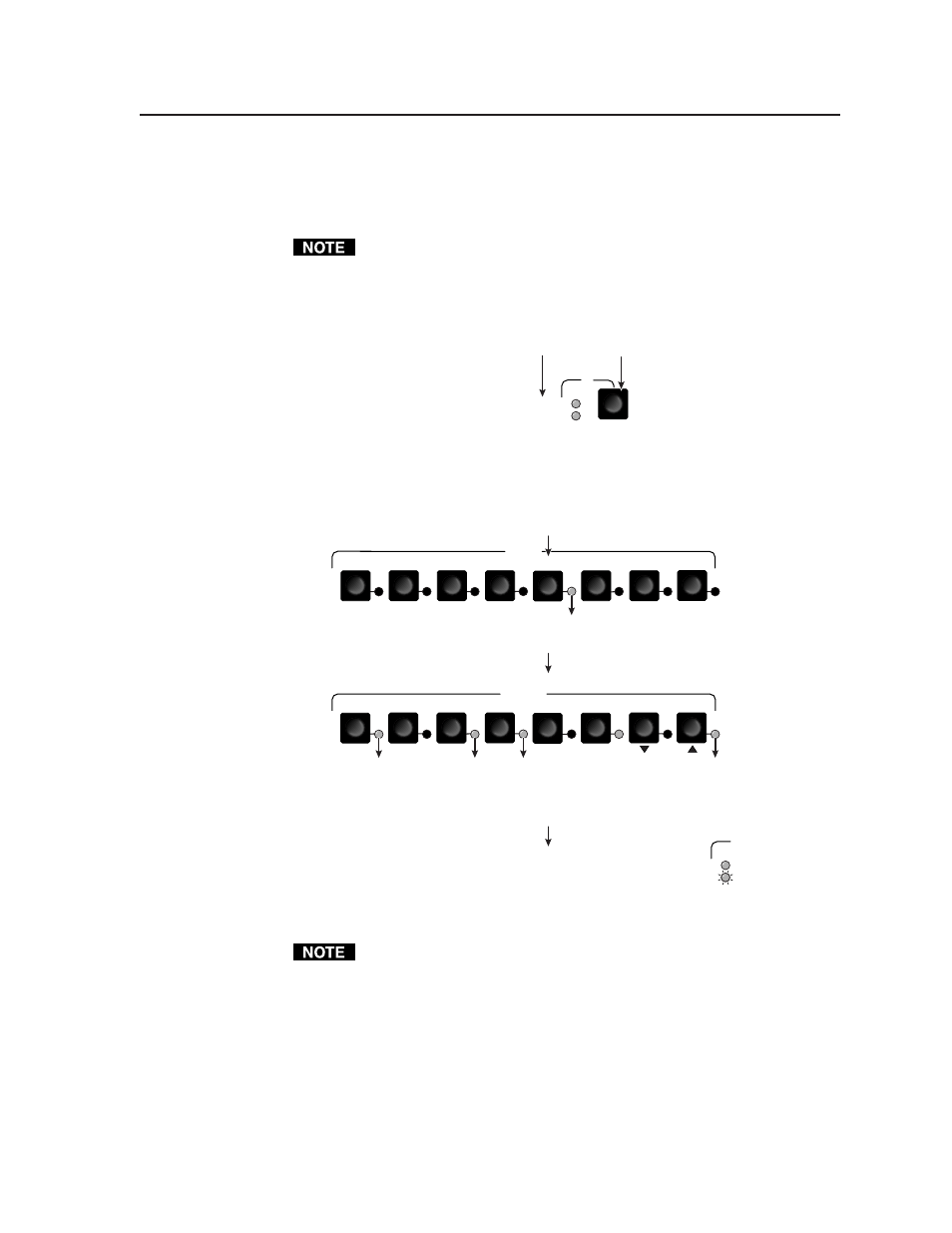

Figure 3-19 — Select video and audio
2 . Press and release the Input 5 button (figure 3-20).
2
7 6 5 2 4 1
INPUTS
OUTPUTS
8 3
1 8 6 5 4 3 7
I/O
AUD
VID +dB
- dB
Press and release the Input 5 button.
The Input 5 LED lights to
indicate that input 5 is selected.
Video-only switcher — The Output 1, Output 3, and Output 8 LEDs light
to indicate the ties created in examples 1, 2, and 3.
Audio/video switcher — The Output 1, Output 3, Output 4, and Output 8
LEDs light to indicate the video ties created in examples 1, 2, and 3.
The audio LED blinks to indicate that for at least one tie audio is
routed from a different source or not tied at all (audio breakaway).
Figure 3-20 — Select an input
Steps 3 and 4 can be performed on an audio/video switcher only. If you have a
video-only switcher, allow the 5-second input and output button timeout to
deselect the input.
