Remote Operation, cont’d
MAV 44 / 48 / 84 / 88 Matrix Switchers • Remote Operation 4-14

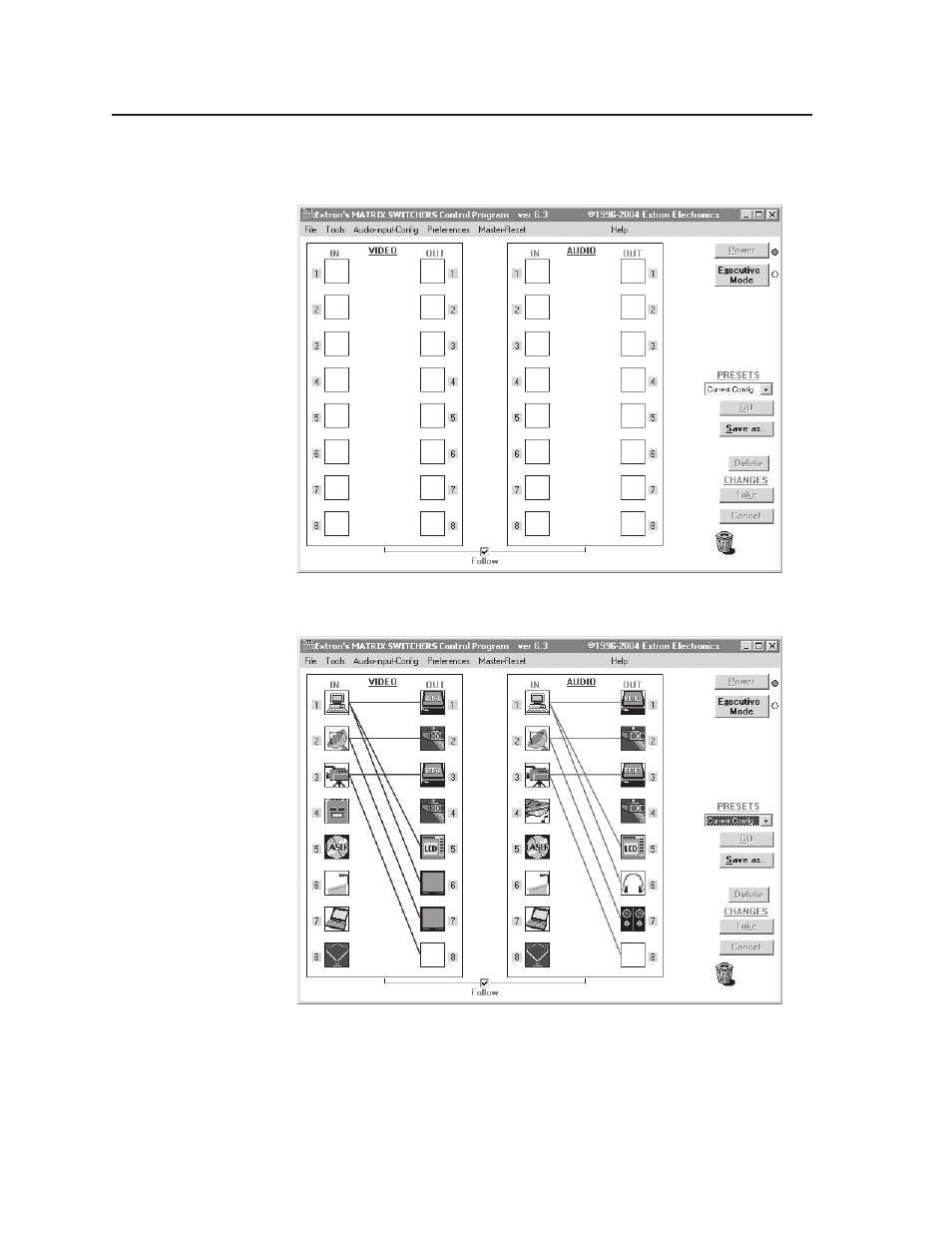

3 . The Extron Matrix Switchers Control Program window (figure 4-9 and
figure 4-10) displays the current configuration of the attached matrix.
Figure 4-9 — Extron Matrix Switchers Control Program window (blank)
Figure 4-10 — Sample program window (complete)
4. To set up audio to follow video (audio and video have the same tie
configuration), select the Follow checkbox at the bottom of the window. To
set up audio to breakaway (audio and video have different tie configurations),
deselect the Follow checkbox.
