Remote Operation, cont’d
MAV 44 / 48 / 84 / 88 Matrix Switchers • Remote Operation 4-20

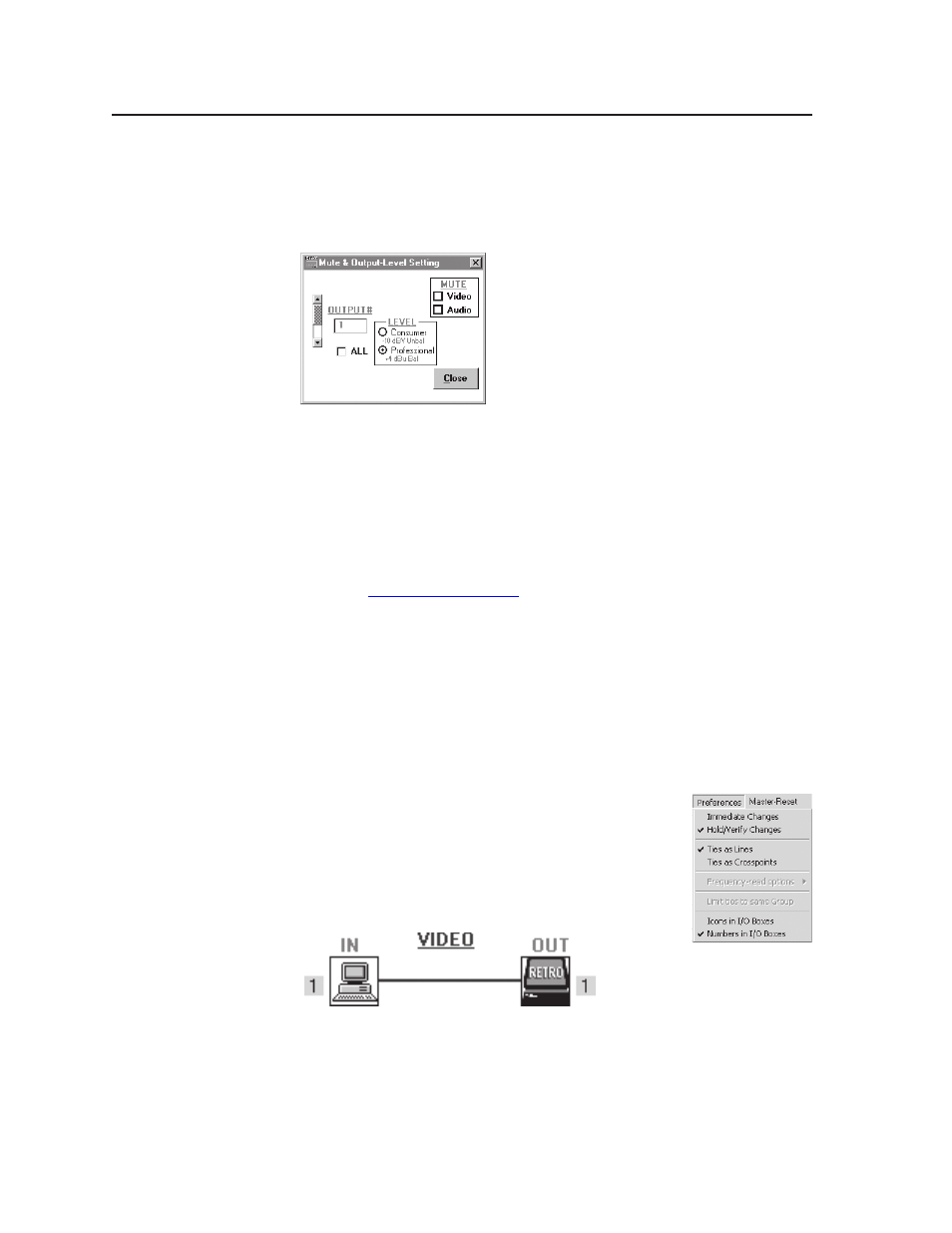

Audio-Output volume settings — Displays the Mute & Output-Level
window (figure 4-16), which displays the output volume level
(consumer [-10 dBV] or professional [+4 dBu], for a single output or for
all outputs and allows you to change it. This window also allows you to
mute and unmute the video and audio output.
Figure 4-16 — Mute & Output-Level window
Mute-output settings — Displays the Mute & Output-Level window
(figure 4-16), which allows you to mute and unmute the video and audio
output for a single output or for all outputs. This window also displays
the output volume level settings and allows you to change them.
Update firmware — Allows you to replace the firmware that is coded on the
switcher’s control board without taking the switcher out of service.
See “Updating the firmware” on page 4-15.
Name presets — Allows you to name each of the 16 memory presets.
Show RS-232 strings — Displays the ASCII commands that are used by the
current configuration. You can refer to these for RS-232 programming.
Initialize — Initializes and clears any or all of the following: ties, presets,
audio configuration, preset titles, icon names, and icons.
Audio-input Configuration selection
Displays the Configure Audio Options window (figure 4-15), which shows the
audio gain level settings for each input and allows you to change them.
Preferences menu
Immediate changes — Causes changes to take effect
immediately.
Hold/verify changes — Delays implementation of
changes until the Changes – Take button is pressed.
Ties as lines — Displays ties as lines (figure 4-17).
Figure 4-17 — Ties shown as lines
