Introduction, cont’d
MAV 44 / 48 / 84 / 88 Matrix Switchers • Introduction 1-2
Introduction
About the Switchers
The Extron MAV Series AV matrix switchers (figure 1-1) are a family of broadcast
quality matrix switchers that distribute any composite video or S-video input with
audio to any combination of outputs. The MAV Series switchers can route multiple
input/output ties simultaneously. The MAV Series switchers have a wide array of
input and output configurations, video formats, and audio connections.
Depending on the model, the switchers route a combination of S-video or
composite video with audio on captive screw or RCA connectors.
The MAV 88 matrix size has models without audio.
100-240V 0.3A
IN
OUT
SYNC
RS 232
3
4
5
6 7
8
1
2
1
2 3
4
5
6
7
8 INPUTS
OUTPUTS
INPUTS
MA V 88 A V
OUTPUTS
L R 7
L R 8 L R 5
L R 6 L R 3
L R 4 L R 1
L R 2
L R 7
L R 8 L R 5
L R 6
L R 3
L R 4
L R 1
L R 2
DVD
Sound System
Laserdisc Player Video Camera
Monitor
Monitor
LCD
Projector
VCR
Extron
MAV 88 AV
Matrix Switcher
Extron
BBG 6 A
Blackburst Video Generator
System Control
CD Player
CRT
Projector
Amplifier
Speakers DISTRIB UTION AMPLIFIER
50-60Hz

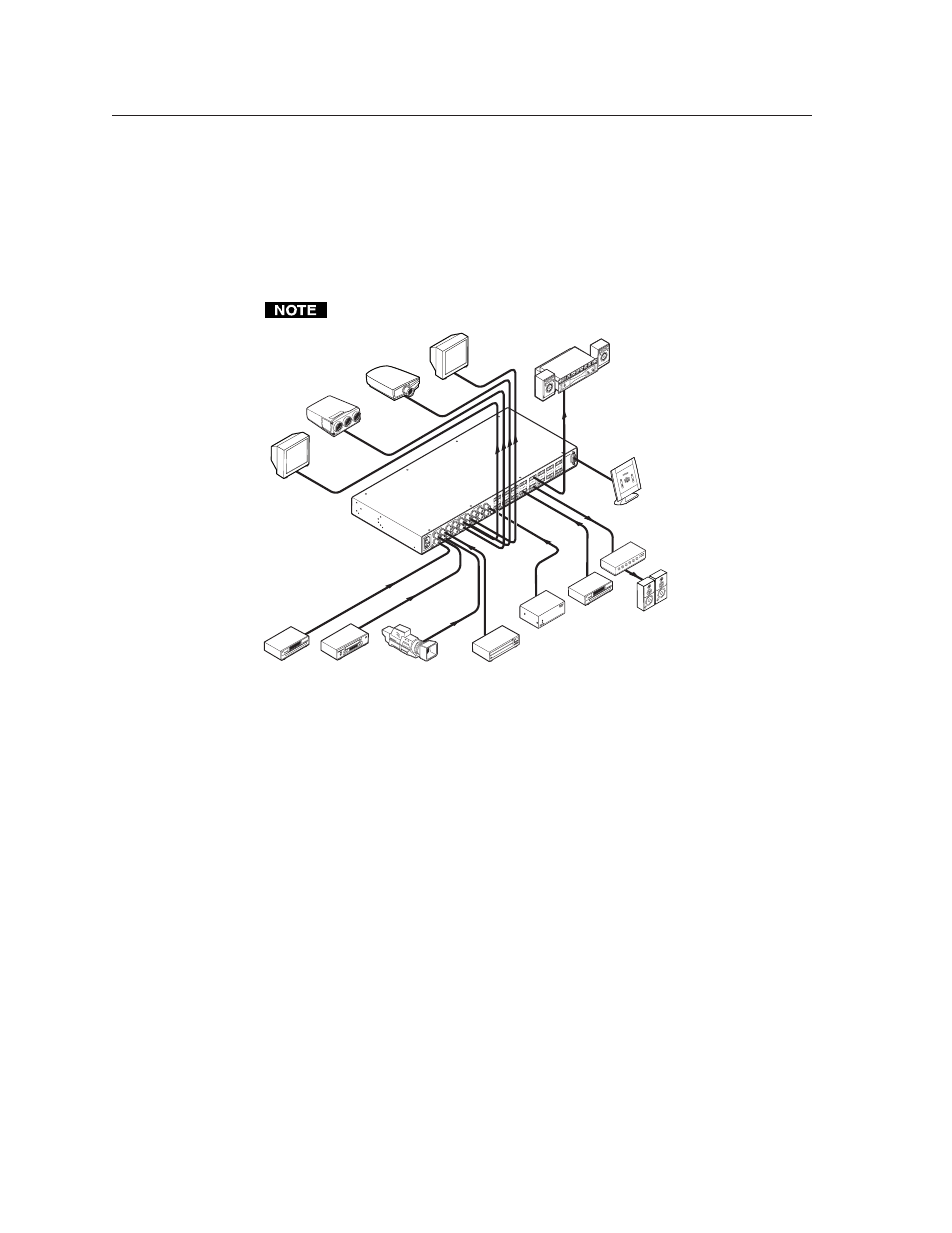

Figure 1-1 — Typical MAV 88 AV application
The table on the following page lists the models and the combinations of inputs
and outputs available in the MAV Series switcher family.
The MAV switcher can be locally controlled on the front panel or remotely
controlled via its rear panel RS-232 serial port or an optional IR 501 Small Matrix
Infrared (IR) Remote Control (part # 70-336-01).
