IPCP Pro Series • Hardware Features and Installation
18
G
Relay ports — Relay ports provide control for power, screen/projector lifts, window
coverings, and similar items, when trigger events occur.
RELAYS
2
1
4
3
C
C
RELAYS
1
2
5
6
3
4
7
8
RELAYS
5
6
7
8
2
1
3
4
Rear Panels
Front Panel
1
2
To Room
Control
Equipment
To Room
Control
Equipment
Closed
Normally
Open
Normally Open (2)
Common
Normally Open (1)
Common
Relays
• Connect devices for contact control.
• Do not exceed a total of 24 V at 1 A for each port.
Relay LEDs
Light when the corresponding
relays are activated (tied to GND).
or
Common
Relay 2
Relay 1
All relays
are
normally
open.

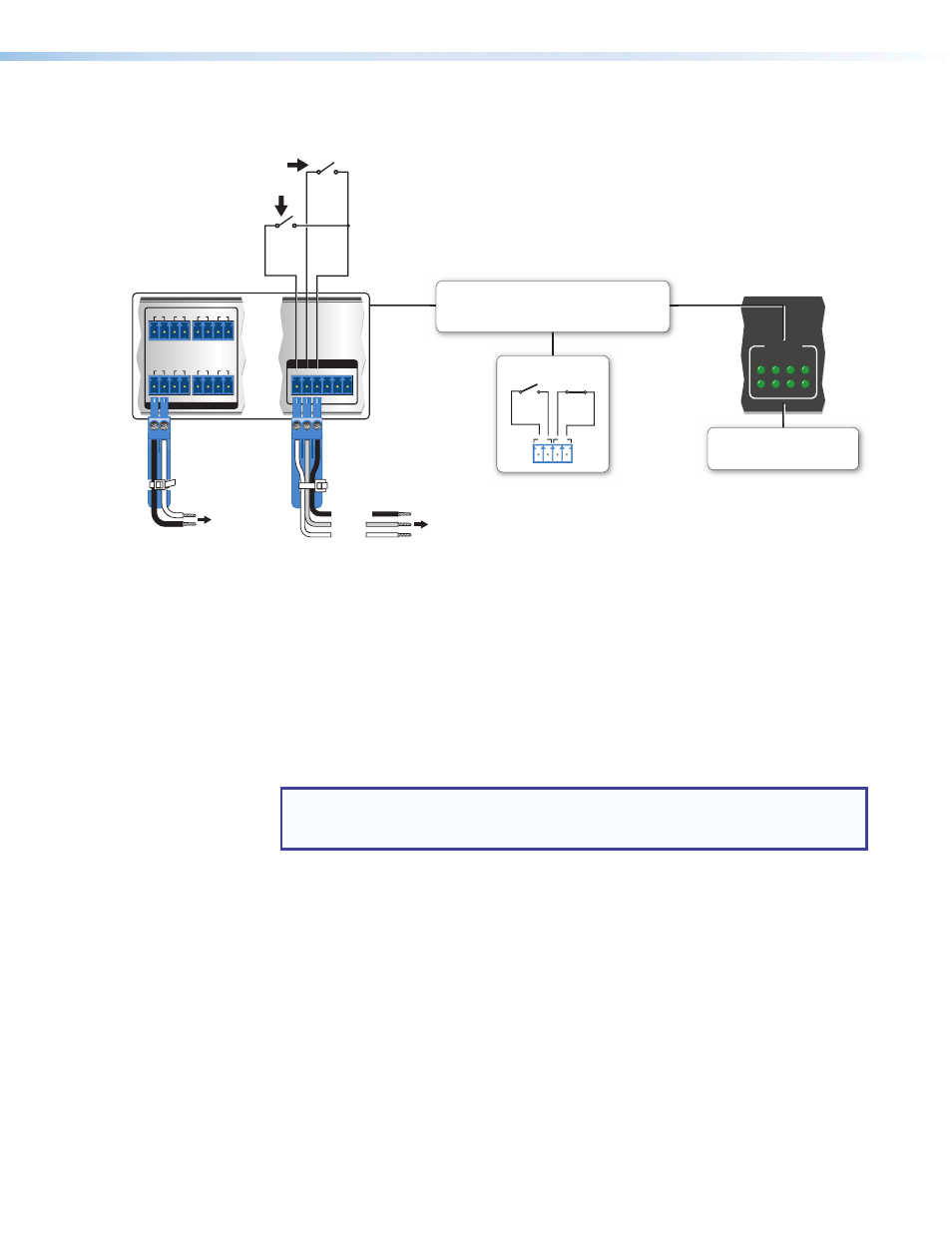

Figure 13.
Cabling Relay Ports
These relay contacts may be used to control any equipment as long as the contact
specifications of a total of 24 volts at 1 ampere are not exceeded for each port. These
relays are normally open by default.
When activated, the open contacts close. They can be set up to operate in one of two
ways:
•
Latching (brief contact) (press to turn on, press to turn off), or
•
Pulsed (timed cycle) (press to turn on, timeout to turn off, with automatic repeat).
In pulse mode the default timeout period (hold time) is ½ second (500 ms). Use Global
Configurator to change the length of the timeout period.
NOTE: The pulse function is absolute: it always sets the relay state to closed, times
out (briefly), then opens the contact. It overrides the previously selected setting
(on state, off state, or toggle).
