Power connections, Power input, Connector (internal – Extron Electronics IPCP Pro Series User Guide User Manual

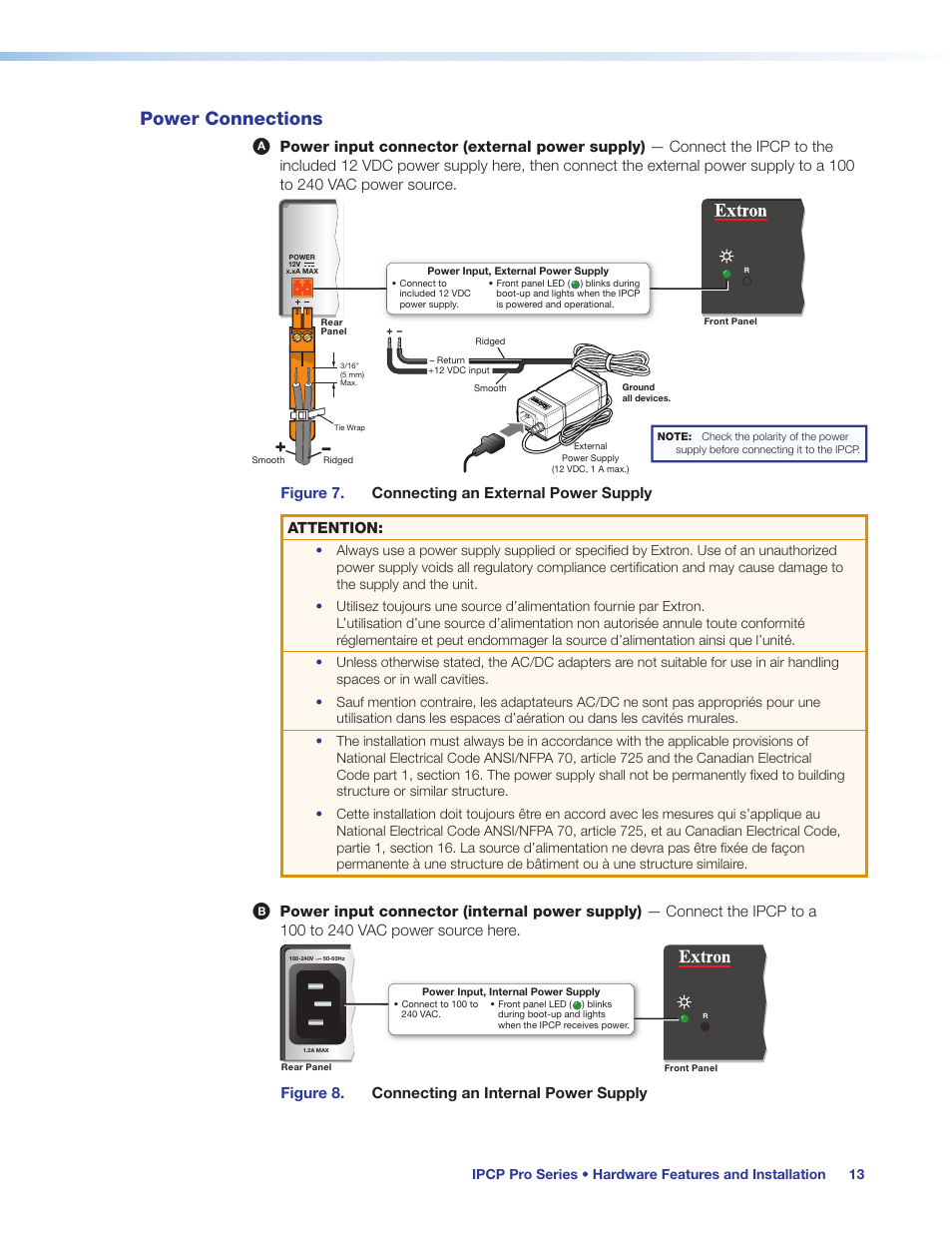

Page 19: Power supply), Connector (external, Preliminary, Figure 8. connecting an internal power supply
