2 IPL T Series • Introduction

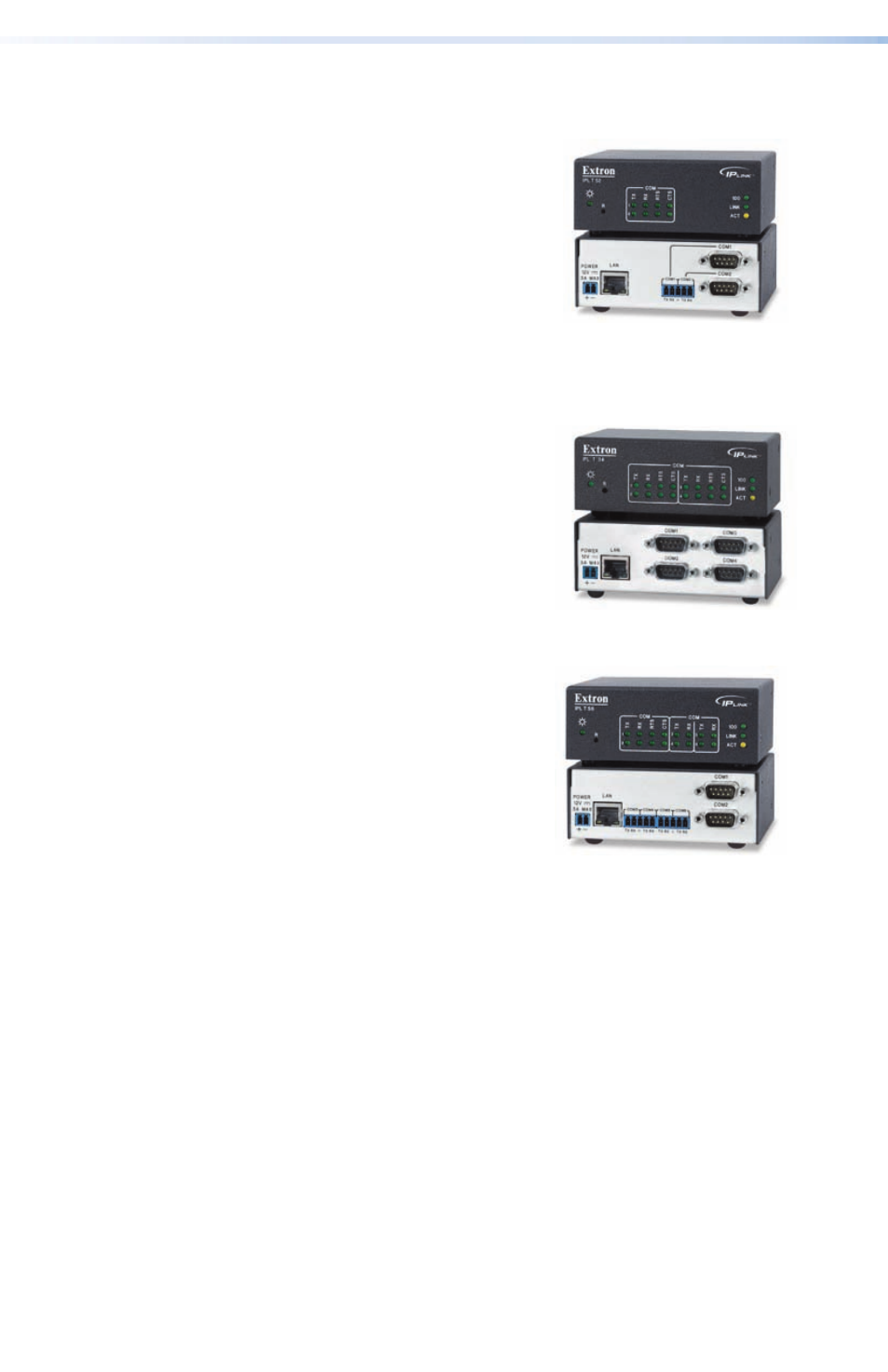

IPL T S2
Features of the IPL T S2 include:
z z
12 VDC, 1 A desktop power supply
z z
RJ-45 Ethernet receptacle
z z
Two (2) 9-pin D RS-232, RS-422, or
RS-485 serial ports
- or -
Two (2) 3.5 millimeter captive screw
RS-232 serial ports (common to the
two 9-pin D serial ports)
z z
Six (6) Ethernet control ports
IPL T S4
Features of the IPL T S4 include:
z z
12 VDC, 1 A desktop power supply
z z
RJ-45 Ethernet receptacle
z z
Four (4) 9-pin D RS-232, RS-422, or
RS-485 serial ports
z z
Six (6) Ethernet control ports
IPL T S6
Features of the IPL T S6 include:
z z
12 VDC, 1 A desktop power supply
z z
RJ-45 Ethernet receptacle
z z
Two (2) 9-pin D RS-232, RS-422, or
RS-485 serial ports
z z
Four (4) 3.5 millimeter captive
screw RS-232 serial ports
z z
Six (6) Ethernet control ports
