IPL T Series • Setup
9
Setup
This section describes the hardware setup and configuration of the
IPL T Series controllers. Topics that are covered include:
z
z
z
z
z
z
z
z
z
z
Configuring for Network Communication
z
z
Configuring the IPL T Series with Global Configurator

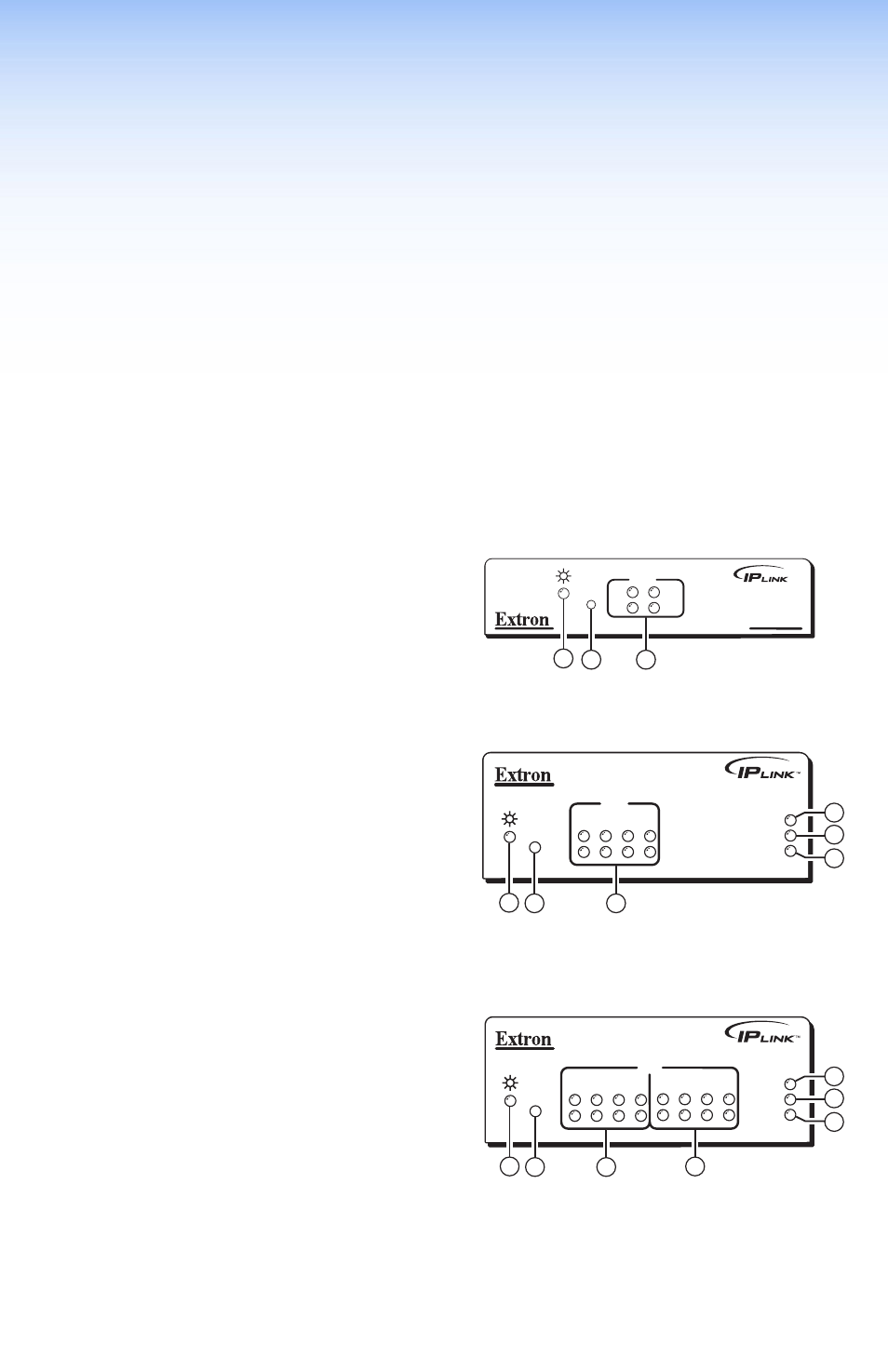

Front Panel Features
IPL T S Series
a
Power LED — A green LED
lights to indicate that the
unit is receiving power.
b
Reset button — Recessed
multiple function Reset
button. See
for more
information.
c
COM LEDs
z
z
TX — A green LED
lights to indicate
that data is being
transmitted.
z
z
RX — A green LED
lights to indicate that
data is being received.
z
z
RTS — A green LED
lights to indicate that
the controller is ready
to send data.
z
z
CTS — A green LED
lights to indicate that
a connected device is
ready to receive data.
d
100 LED — A green LED
lights to indicate that the
connection speed is
100 Mbps. If the LED is not
lit, the connection speed is
10 Mbps.
IPL T S4
R
100
LINK
ACT
1
TX
2
RX
R
TS
CTS
1
3
2
3
3
TX
4
RX
R
TS
CTS
COM
4
5
6
IPL T S2
R
100
LINK
ACT
1
COM
TX
2
RX
R
TS
CTS
1
3
2
4
5
6
IPL T S1
COM
TX
RX
RTS
CTS
R
1
3
2
