IPL T Series • Setup
e
LINK LED — A green LED
lights to indicate that the
unit is connected to an
active network.
f
ACT LED — A yellow LED
lights to indicate that data
is being sent or received.
IPL T SFI244
IPL T SFI244
1
R
100
COM
TX
LINK
ACT
2
RX
1
3
2
4
1
3
2
4
I/O
IR
7
8
9
1
3
2
4
5
6

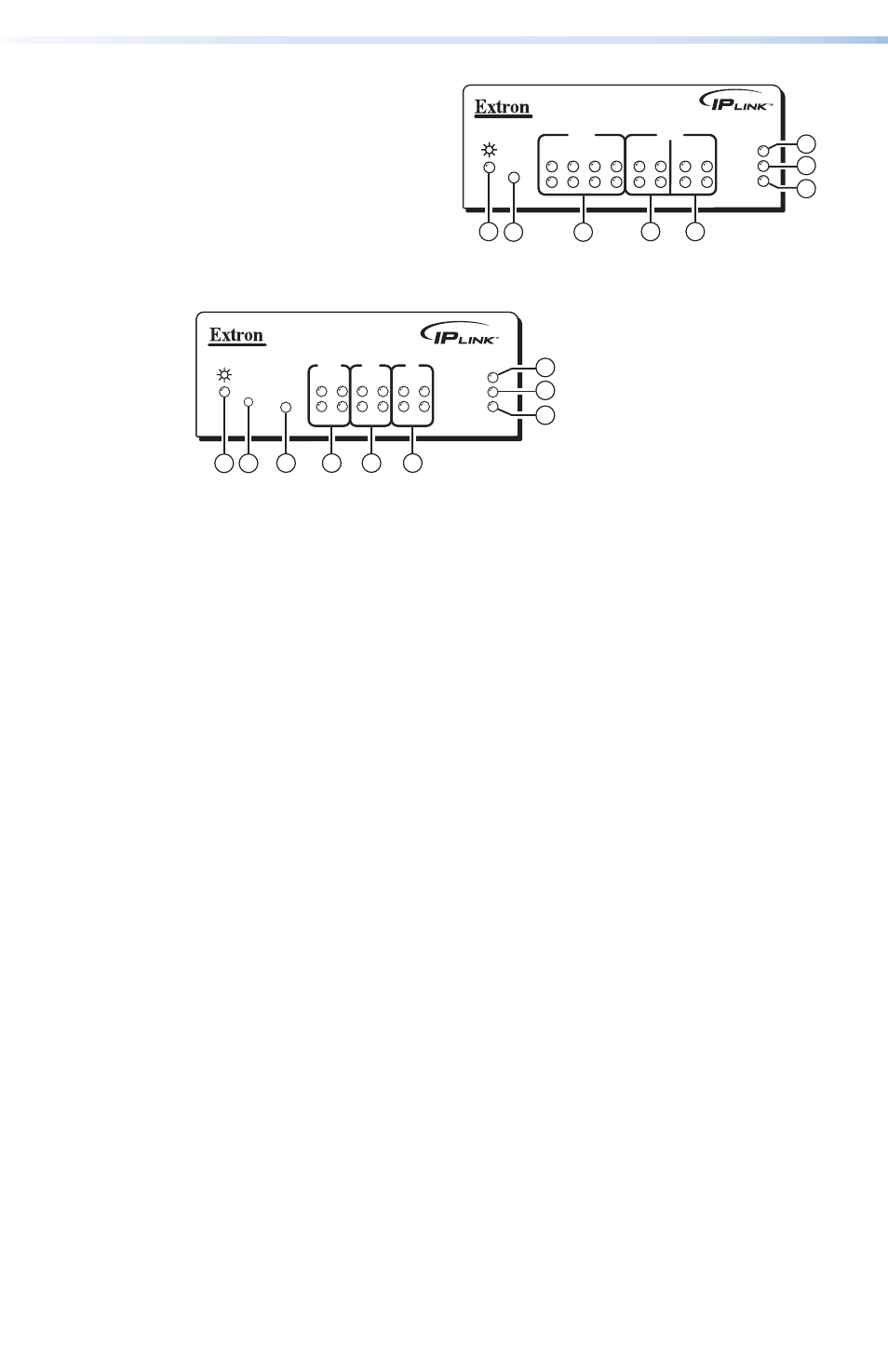

a
Power LED — A green LED lights to indicate that the unit is
receiving power.
b
Reset button — Recessed multiple function Reset button. See
for more information.
c
IR learning receiver — This infrared receiver "learns"commands
from device IR remote controls. Refer to the IR Learner Software
Help file for IR learning procedures.
d
COM LEDs
z
z
TX — A green LED lights to indicate that data is being
transmitted.
z
z
RX — A green LED lights to indicate that data is being
received.
e
I/O LEDs — A green LED lights to indicate that an I/O port
(1 through 4) is active.
f
IR LEDs — A green LED lights to indicate that an IR port
(1 through 4) is transmitting data.
g
100 LED — A green LED lights to indicate that the connection
speed is 100 Mbps. If the LED is not lit, the connection speed is
10 Mbps.
h
LINK LED — A green LED lights to indicate that the unit is
connected to an active network.
i
ACT LED — A yellow LED lights to indicate that data is being sent
or received.
IPL T S6
R
100
LINK
ACT
1
COM
TX
2
RX
R
TS
CTS
3
COM
TX
4
5
6
RX
TX
RX
1
3
2
3
3
4
5
6
