12 IPL T Series • Setup

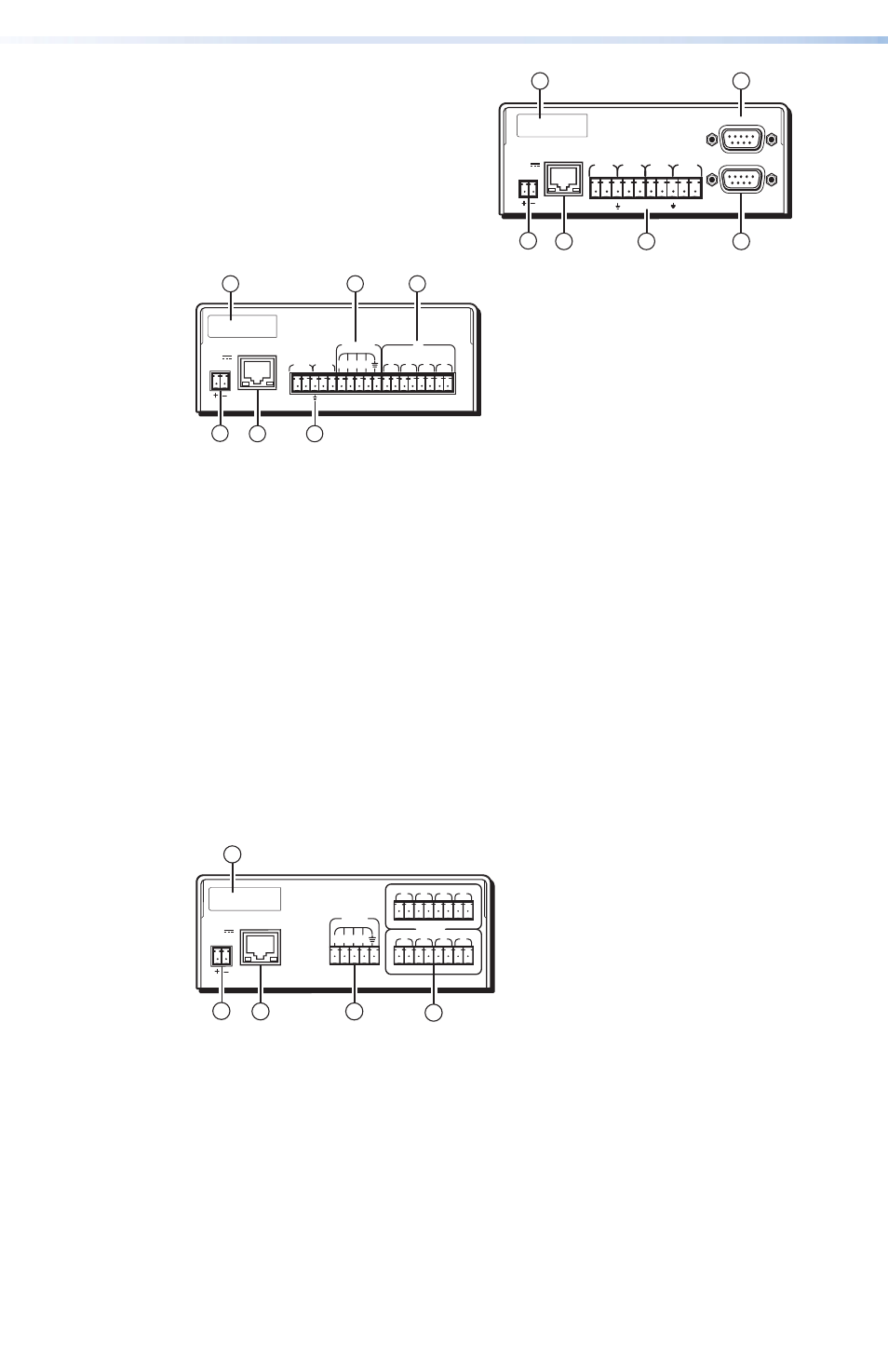

IPL T SFI244
COM1 COM2
LAN POWER
12V
.5A MAX
FLEX I/O
2 1 3 4 1
IR
2 3 4
TX RX TX RX G S G S G S G S
MAC: 00-05-A6-XX-XX-XX
S/N:
IPL T SFI244
6
2 1
5
3
4
a
Power connection — Connect the supplied 12 VDC power supply
b
LAN port — RJ-45 receptacle for network connection
c
COM ports — 3.5 millimeter captive screw receptacles for serial
ports COM1 and COM2
d
Flex I/O ports — Four ports that can be configured as digital
inputs (for switches or sensors), digital outputs (for power, screen,
or projector lift control), or analog inputs (for photo sensors or
level feedback)
e
IR ports — 3.5 millimeter captive screw receptacles for infrared
device connection
f
MAC address — The unique hardware ID number (MAC address)
of the unit (for example, 00-05-A6-00-00-01)
IPL T CR48
LAN POWER
12V
.5A MAX
MAC: 00-05-A6-XX-XX-XX
S/N:
IPL T CR48
5
2 1 3
INPUT
RELAY
2 1 3 4 5 6 7 8
1 2 3 4
4
a
Power connection — Connect the supplied 12 VDC power supply.
b
LAN port — RJ-45 receptacle for network connection
c
Input (contact closure) ports — Four inputs permit connection
of switches and sensors to provide input (trigger events) to the
system.
d
Relay ports — Eight relay ports provide contact closure activation
of relays (for power, screen projector lift control, and so on) when
trigger events occur.
e
MAC address — The unique hardware ID number (MAC address)
of the unit (for example, 00-05-A6-00-00-01)
g
COM4 — 9-pin D connector for
serial port 4
h
MAC address — The unique
hardware ID number (MAC
address) of the unit (for
example, 00-05-A6-00-00-01)
COM1
COM2
IPL T S6
2 1
LAN
POWER
12V
.5A MAX
MAC: 00-05-A6-XX-XX-XX
S/N:
8
5
4
COM5
TX RX TX RX
COM6 COM3
TX RX TX RX
COM4
3
