20 IPL T Series • Setup
5. Execute a ping command by typing ping followed by a space and
the new IP address at the command prompt. For example:
ping 10.13.170.15
After issuing this command, the controller changes to the new
address and starts responding to the ping requests, as described.
You must ping the IPL T controller in order for the IP address
change to take place.

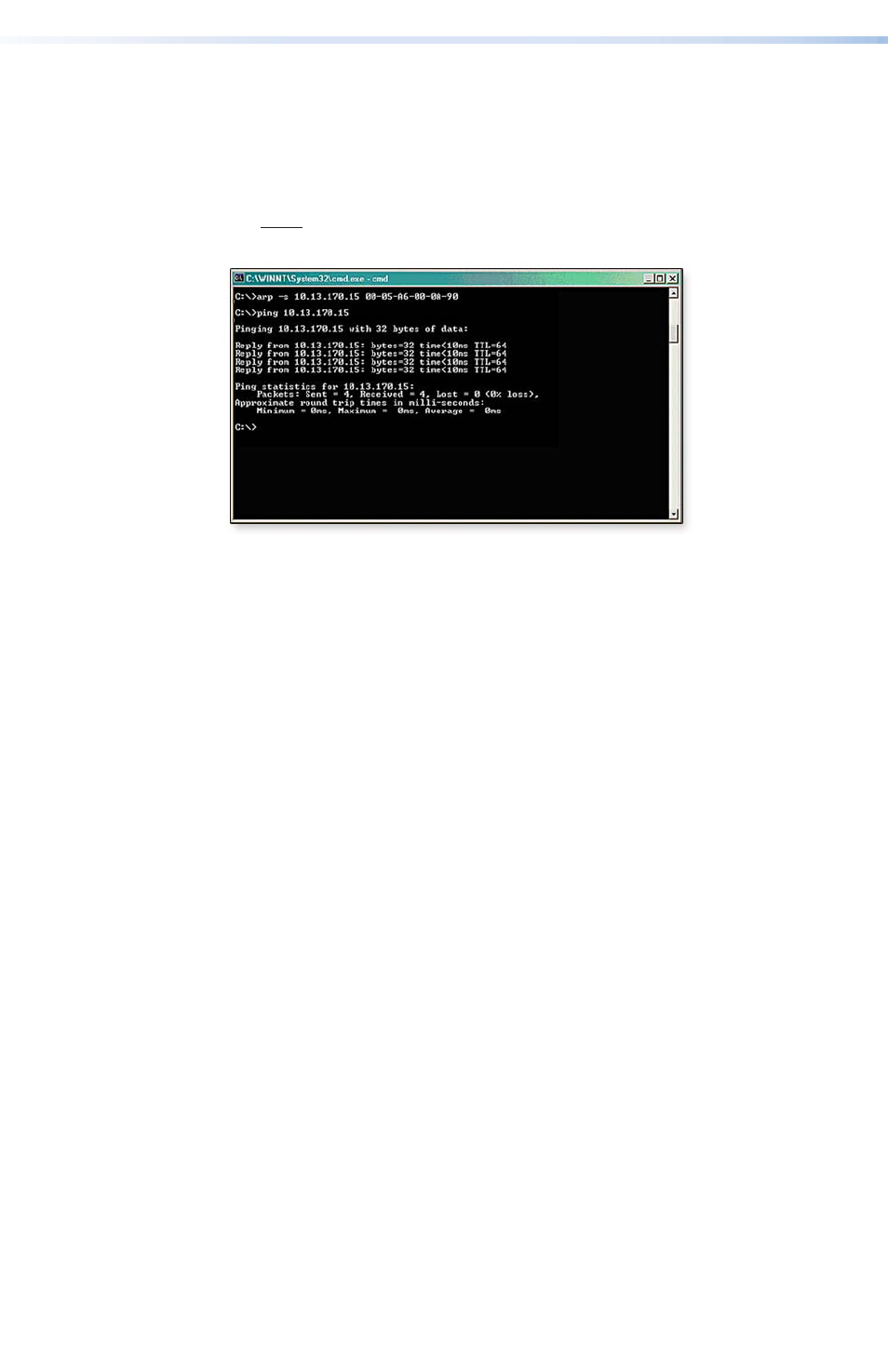

Figure 15. Controller Response to a Ping Request
You can reconnect using either Telnet or a Web browser to verify
that the update was successful.
6. After verifying that the change was successful, enter and issue the
Arp -d command at the command prompt. For example:
arp -d 10.13.170.15 removes the 10.13.170.15 from the ARP
table
- or -
arp -d* removes all static IP addresses from the ARP table.
Configuring the IPL T Series with Global Configurator
After you have installed the Global Configurator (GC) software on the
PC and downloaded device drivers, do the following:
1. Create a GC project file.
2. Configure the IPL T Series controller and other devices.
3. Launch the GlobalViewer ® interface.
4. Test the configuration and the system.
Refer to the Global Configurator Help file for these procedures.
The Global Configurator Help file includes an introduction to the
software and a section on how to start a Global Configurator project.
It also features step-by-step instructions on the basic tasks involved in
configuring an IPL T controller.
If you have questions during installation and setup, you can call the
Extron S3 Sales & Technical Support Hotline or the Extron S3 Control
Systems Support Hotline.
