Introduction, cont’d
DDS 100 Introduction 1-2
About This Manual
This manual contains installation, configuration, and operating
information for Extron’s DDS 100 digital display scaler.
This chapter describes the scaler’s features. Chapter 2 describes how to
install the scaler. Chapter 3 describes how to operate the scaler’s
features. Chapter 4 describes RS-232 programming for the scaler.
Chapter 5 describes the control software for Windows, which the scaler
uses. Chapter 6 provides troubleshooting information. Appendix A lists
the scaler’s specifications. Appendix B describes how to perform
updates and repairs, lists the part numbers associated with the cables,
and provides a glossary of terms.
About the Scaler
The DDS 100 digital display scaler converts high-resolution input
signals to one of several output resolutions. The scaler was designed
especially for displaying images on projectors with limited display
resolutions, such as LCD (liquid-crystal display) projectors, DLP (digital
light processor) projectors, and plasma projectors.

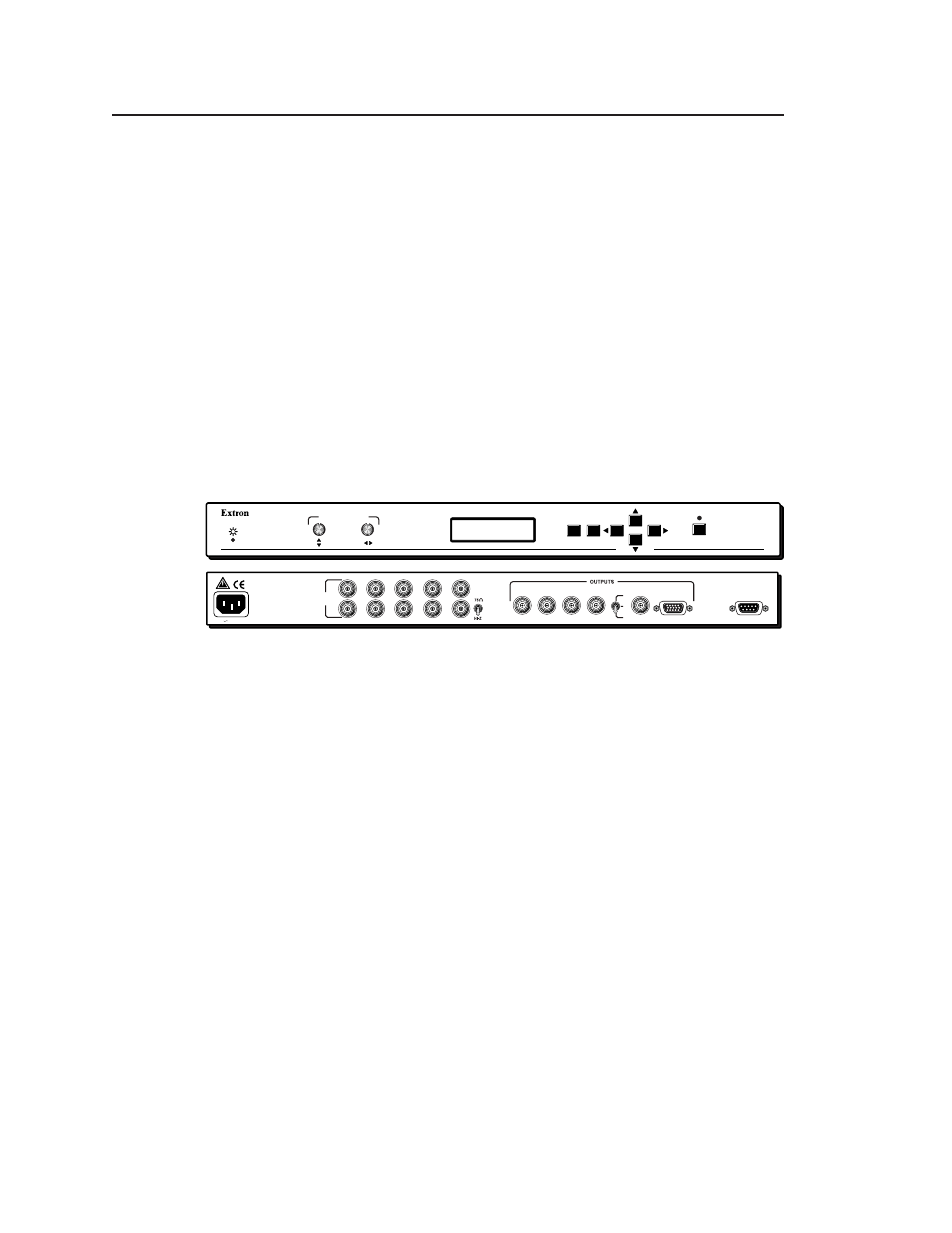

Figure 1 — DDS 100 digital display scaler
Features
• Autoscanning — Automatically recognizes and converts the incoming
computer image, up to 1600 x 1280 resolution, 100 kHz horizontal
and 120 Hz vertical scan rates.
• Executive mode — Locks out all menu functions. When executive
mode is active, the centering controls and the RS-232 port are still
active.
• Freeze — Locks the output display to the current image. When the
freeze function is active, the freeze LED (light-emitting diode) is
lit.
• High-quality color sampling — Uses 24-bit sampling and provides 8
bits per color, for a total of 16.8 million colors.
• High-quality zoom control — Uses increased pixel clocking for
variable zoom, providing better quality of the displayed image.
• Horizontal and vertical controls — Provides controls for sizing and
centering the image. This provides increased flexibility for
panning across the image while zooming.
• Horizontal and vertical filtering — Provides four levels of horizontal
filter control and ten levels of vertical filter control. These user-
selectable filtering controls reduce flicker and ensure that no
picture detail is dropped during scaling.
