Troubleshooting, cont’d
DDS 100 Troubleshooting
6-6
Wrap Around
Description

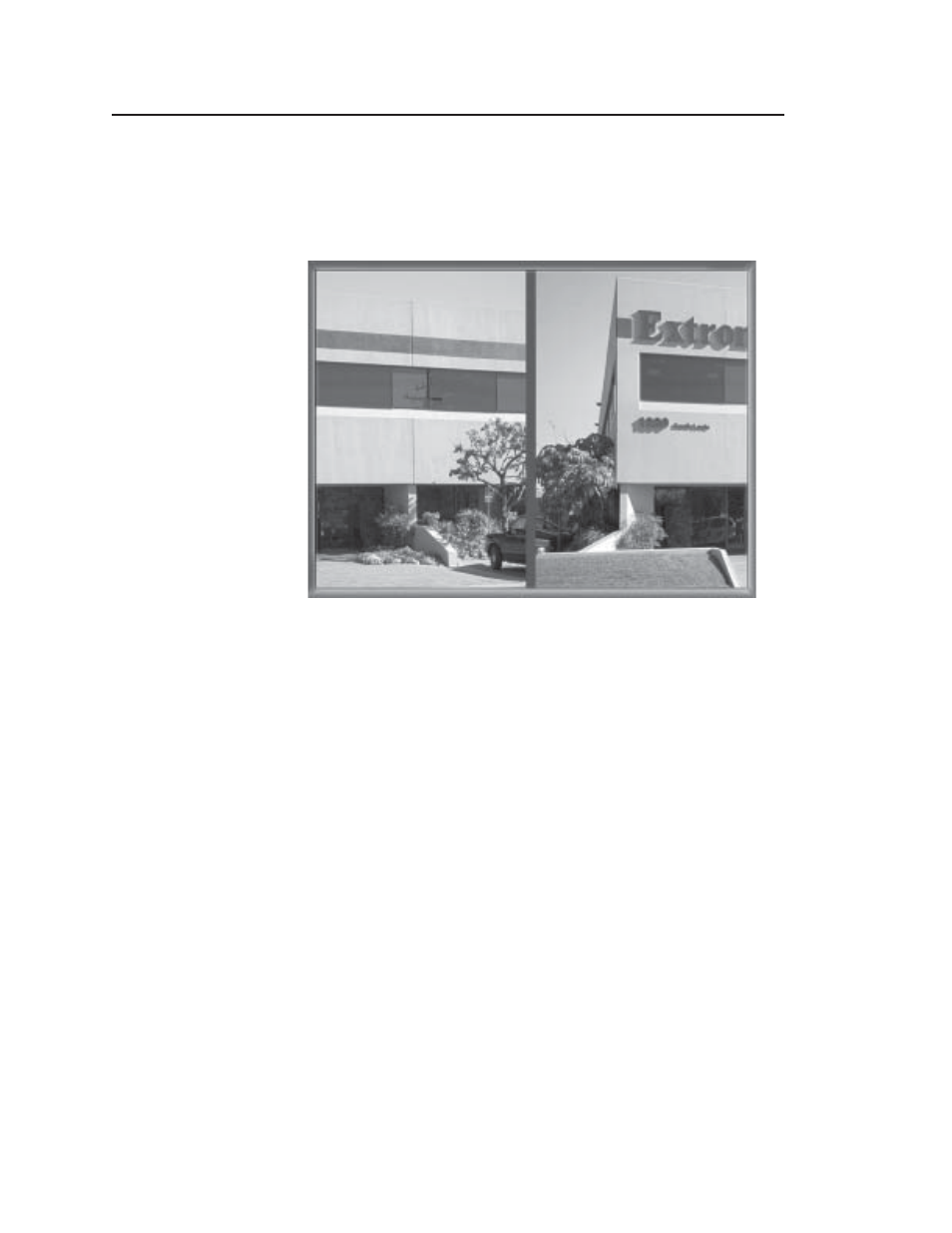

The left side of the image appears at the right side of the screen, and the
right side of the image appears on the left side of the screen.
Probable cause
The sync timing and video information are locked, but are not in phase,
or the display device may be locking in on the wrong edge of the sync.
Possible solutions
Adjust the horizontal shift on either the DDS 100 or the display device.
