Installation, cont’d
DDS 100 Installation 2-2
Front and Rear Panels
Front panel features

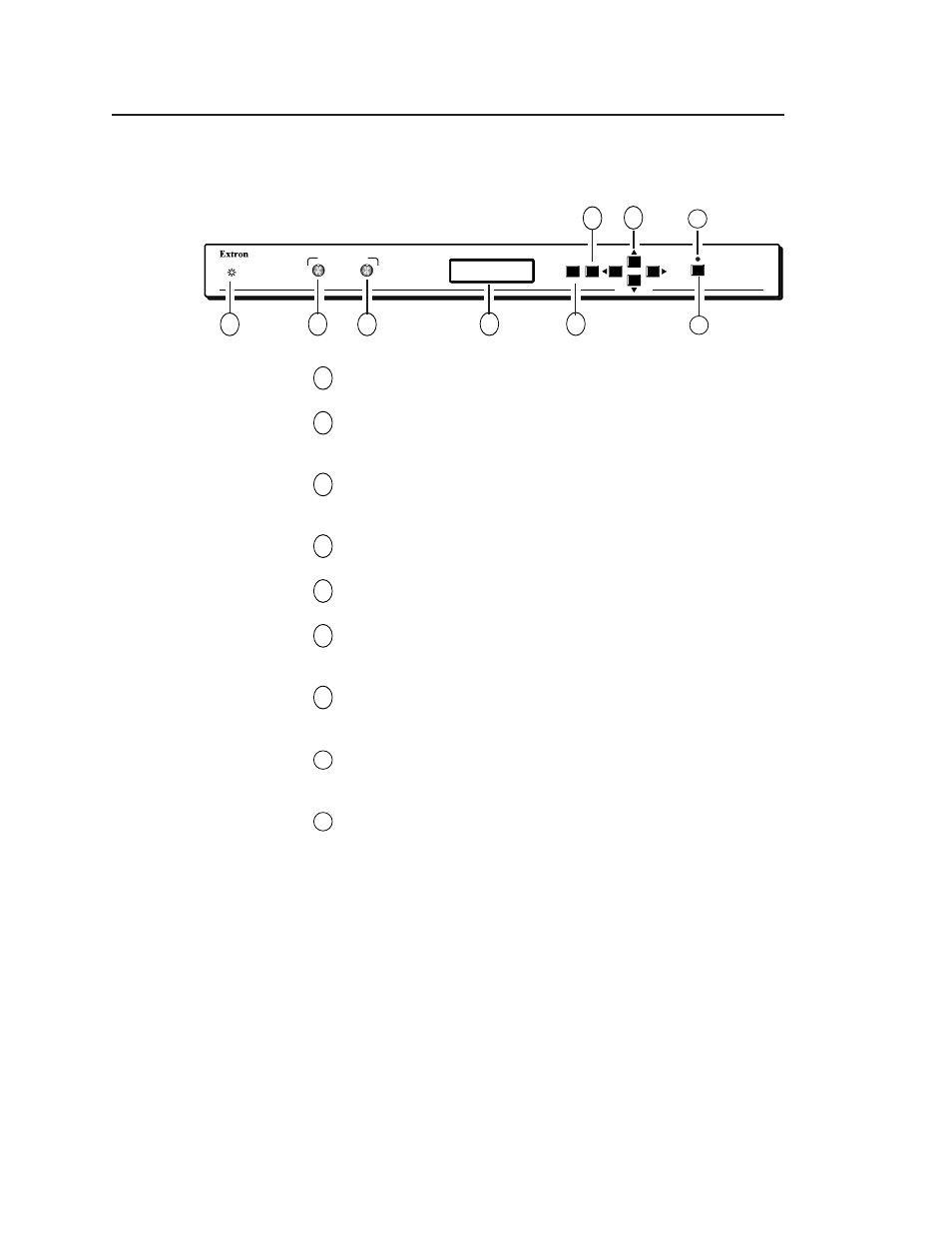

Figure 2 — DDS 100 front panel
1 Power indicator LED — Lights to indicate that the scaler is
receiving power.
2 Vertical centering/pan control — Allows you to pan or center the
image vertically. See “Adjusting an image” on page 3-5 for more
information.
3 Horizontal centering/pan control — Allows you to pan or center
the image horizontally. See “Adjusting an image” on page 3-5 for
more information.
4 LCD — Displays status information and menu screens. See
“Navigating the Menu Screens” on page 3-3 for more information.
5 Menu button — Steps through the LCD menus. See “Using the
Menu and Next buttons” on page 3-3 for more information.
6 Next button — Steps through LCD screens within a menu. See
“Using the Menu and Next buttons” on page 3-3 for more
information.
7 Cursor buttons — Allow you to adjust the image and select video
parameters. See “Adjusting an image” on page 3-5 for more
information.
8 Freeze/reset button — Freezes/unfreezes the displayed image, or
resets the zoom and size values. See “Adjusting an image” on
page 3-5.
9 Freeze LED — Lights to indicate the that the freeze feature is
active.
Installation
MENU FREEZE/
RESET
NEXT
DDS 100
DIGITAL DISPLAY SCALER
CENTERING/PAN
EXTRON DDS 100
DIGITAL SCALER
7
2 3 4 5 8
9
1
6
