2-5 DDS 100 Installation
To rack mount the scaler, do the following:
1. Attach the mounting brackets (supplied with the scaler) on either
side of the scaler, as shown in figure 4. Use four screws per
mounting bracket.

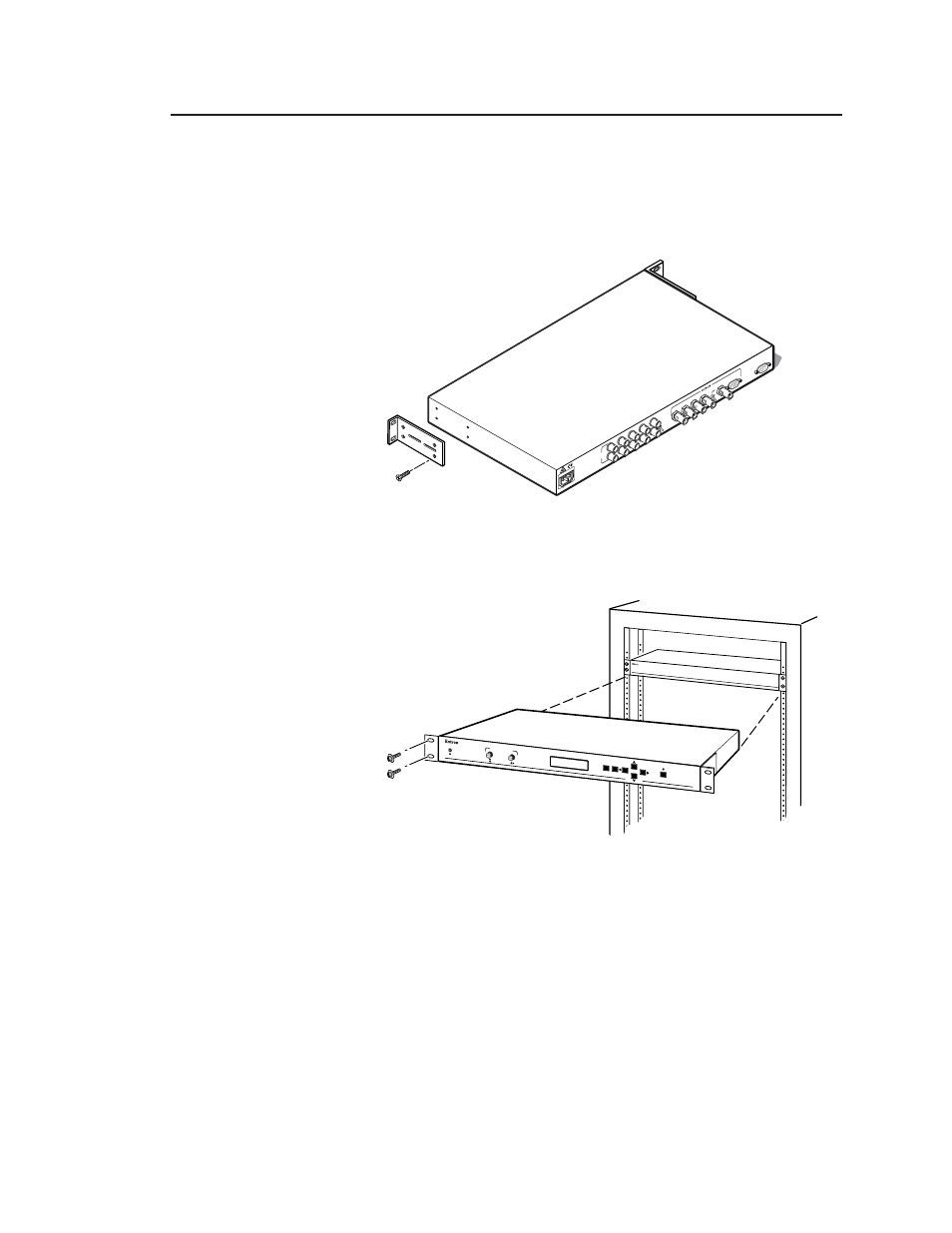

Figure 4 — Installing mounting brackets
2. Using two screws per mounting bracket, attach the scaler to the rack
as shown in figure 5.
Figure 5 — Mounting the scaler
Installing the rubber feet
The DDS 100 ships with four uninstalled rubber feet. Install the rubber
feet only if you are not rack mounting the scaler. To install the rubber
feet, do the following:
1. Turn the DDS 100 upside down and place it on a flat surface.
2. Remove the protective backing from a rubber foot.
MENU
FREEZE/ RESET
NEXT
DDS 100 DIGITAL DISPLA Y SCALER
CENTERING/PAN
50 /60 H z 0.5 A
10 0-2 40
INPUT/ LOOP OUT
R
G
B
H/HV
V
H
HV
SOG
R
G
B
H/HV
V
VG A OUT
RS-232
REMO TE
# 8 Screw (4 Plcs)
Each Side
