pHotoFlex / pHotoFlex Turb Commissioning
19 ba75491d04 07/2006
3.3 Connecting the LabStation
Note
The LabStation is available as an accessory (see section 8.1).
In order to use the functions of the LabStation for operation in the lab-
oratory, connect the LabStation and place the pHotoFlex (Turb) in the
LabStation.
Connecting the LabSta-
tion (optional)
Note
When the pHotoFlex (Turb) is operated in the LabStation, a barcode
reader can be connected. A barcode reader enables to select program
numbers in a simplified manner.
Recommended barcode readers can be found in section 8.2.
For the interface of your meter, set the same baud rate that is set for
the barcode reader (see section 4.4.3).
The baud rate of the barcode reader is given in the operating manual
of your barcode reader.

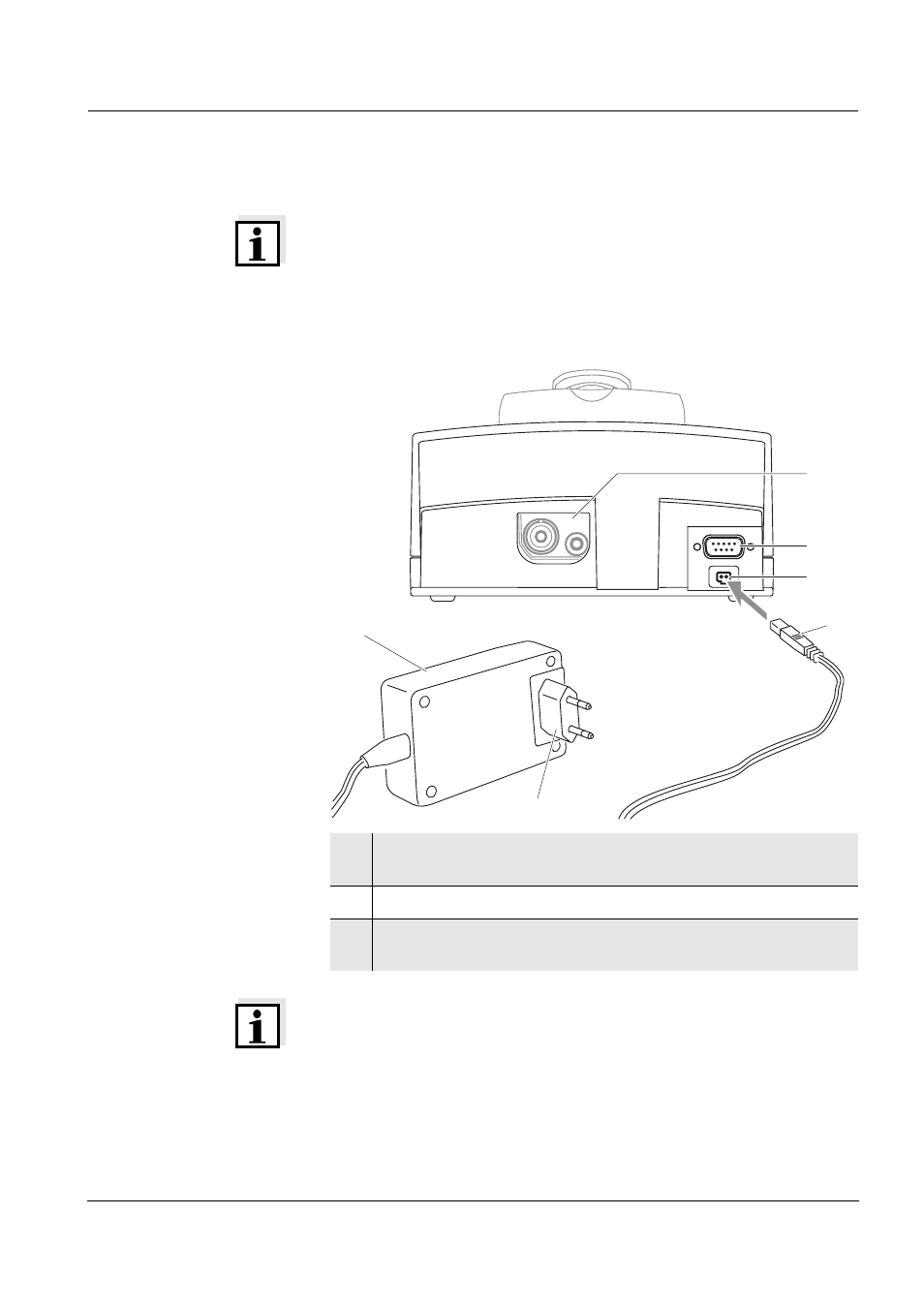

1 If necessary, replace the Euro plug (1) on the power pack (2)
by the country-specific plug suitable for your country.
2 Connect the plug (3) to the socket (4) of the LabStation.
3 Connect a PC, printer or barcode reader to the socket (5) of the
LabStation as necessary.
6
5
4
3
2
1
