94 GB Oxix Manual 080915
FW: 841013-009, 846001-002, 841513-009
Dissolved Oxygen Transmitter
E. Install/Add Languages
All languages are removed during a display firmware upgrade. Consequently
the required languages must be re-installed at this stage.

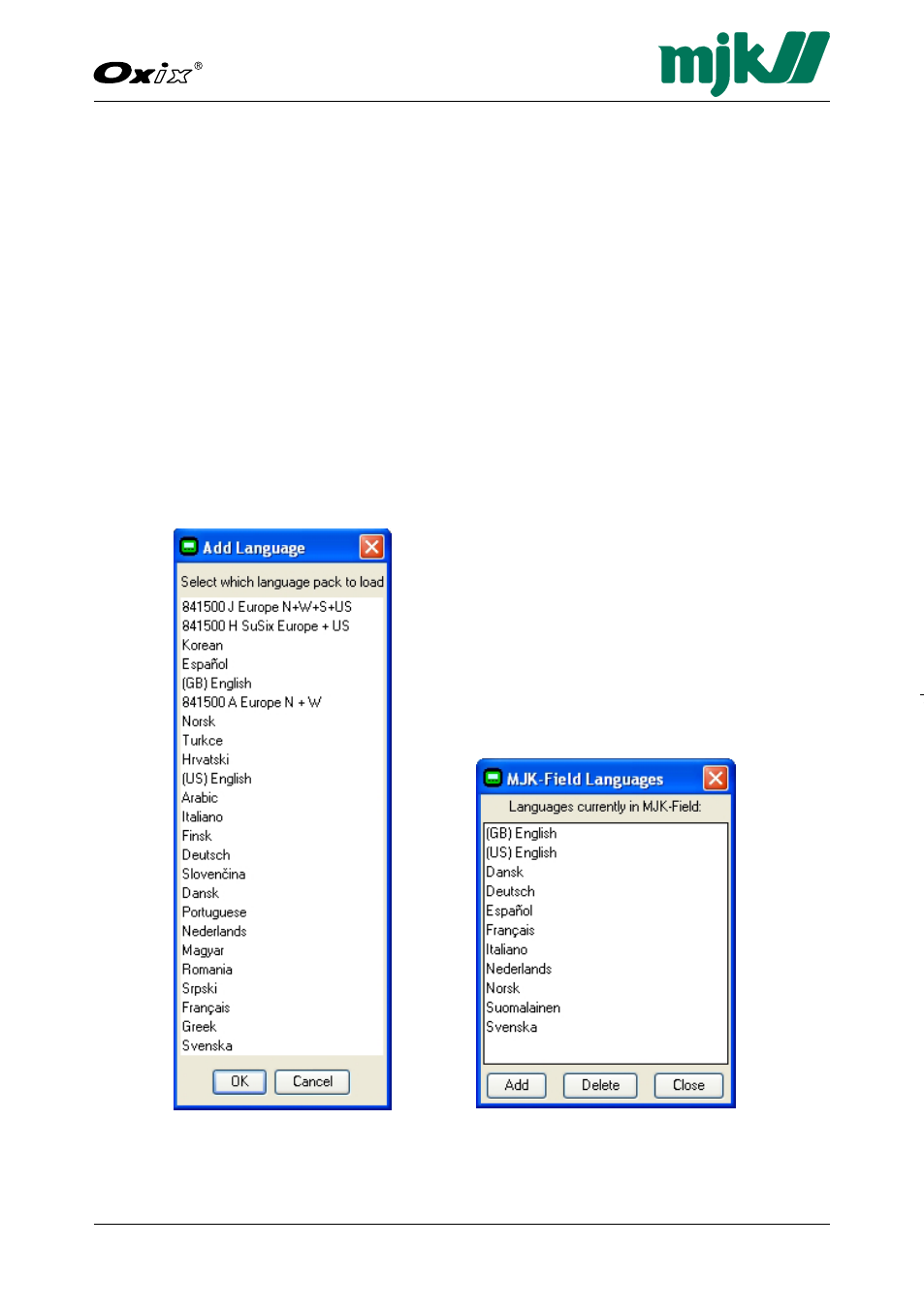

1. Select "File" in the menu bar and click "Languages".
2. A dialogue appears showing the currently installed languages (none follow-
ing a firmware upgrade).
You can now either add or delete the required languages.
3. Click "Add", select the required language text file (or language pack) in the
"MJK Field Display Unit text files" directory on the CD-ROM (for example
841513-008.txt) and click "Open".
4. Select for example "841500 J Europe N+W+S+US" in the "Add
Language" dialogue box (N+W+S+US = North, West, South and USA) and
click OK.
5. The languages are then transferred and loaded.
If required, you can remove one or more languages by selecting them from
the list, clicking "Delete" and "Close".
Appendix C. Front Panel Cut-out Drawing
The dotted line indicates the front panel outline and measures 155 x 145 mm.
Cut-out ar
ea
Frontpanel outline
Up
