23
Dissolved Oxygen Transmitter
GB Oxix Manual 080915
FW: 841013-009, 846001-002, 841513-009
6. Converter
Electrical Mounting
Warning!
The Oxix
® converter/display unit must not be mounted in
explosion hazardous areas!

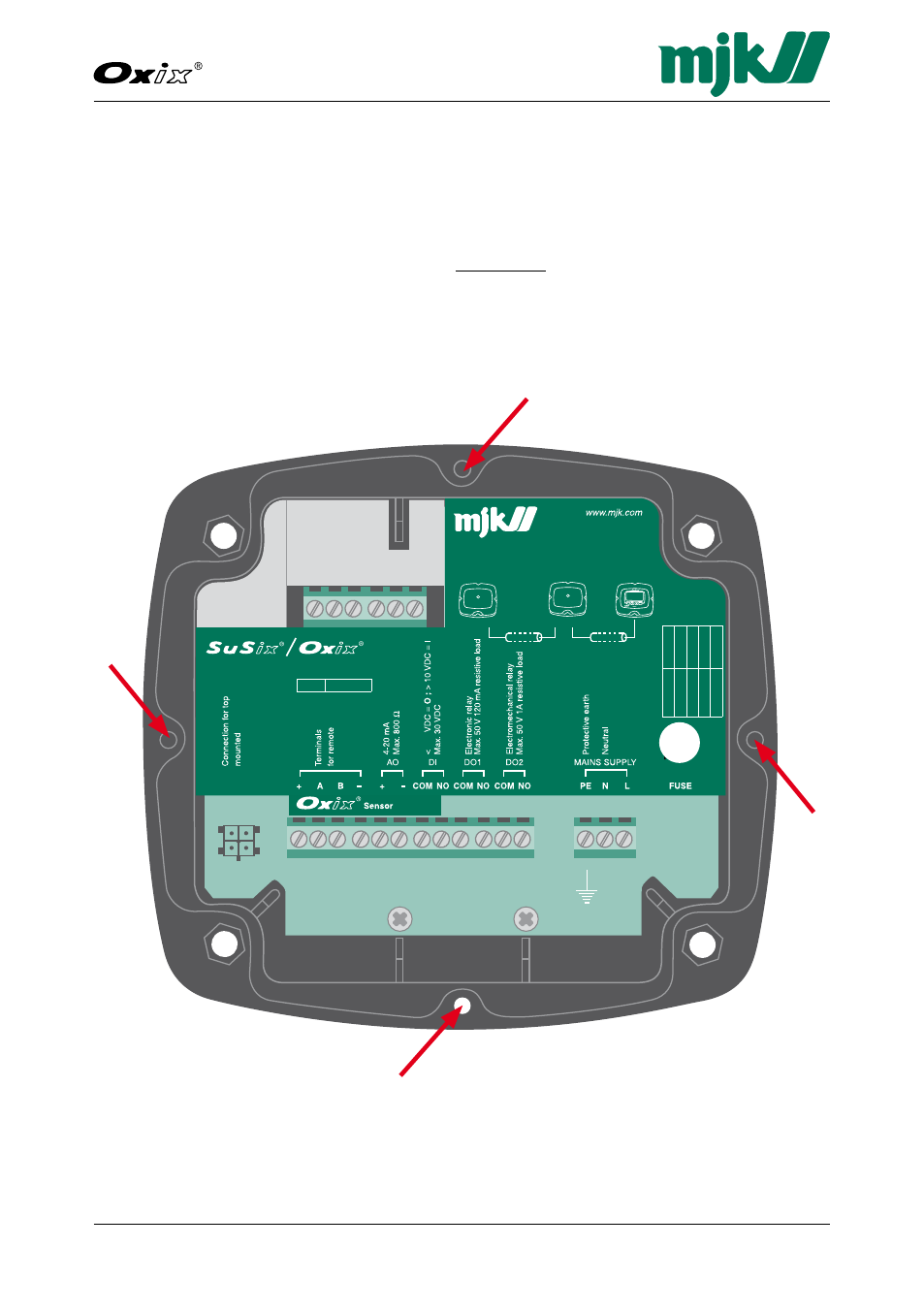

Loosen the four screws (positions indicated by arrows) and remove the dis-
play unit to gain access to the terminals.
Mains
supply
-mA- -D02- -D01- -DI- -Display-
+ + A B C2 N02 C NO N01 PE N L - - C1
+DC GND A B
Red
Black White Gr
een
Shield
521275
Line
2 wire
shielded cable.
4 wire
shielded cable.
displa
y unit
displa
y unit
Display unit Converter #4 Converter #1
Max. four MJK converters with Modbus
can be connected to one display unit:
521274
2,5
Main supply Supply
Fuse
10-30
V DC
1 A
T
24
V A
C
500 mA
T
115
V A
C
125 mA
T
230
V A
C
63 mA
T
Sensor supply
Fuse 200 mA T
