Dissolved Oxygen Transmitter
Graph Display

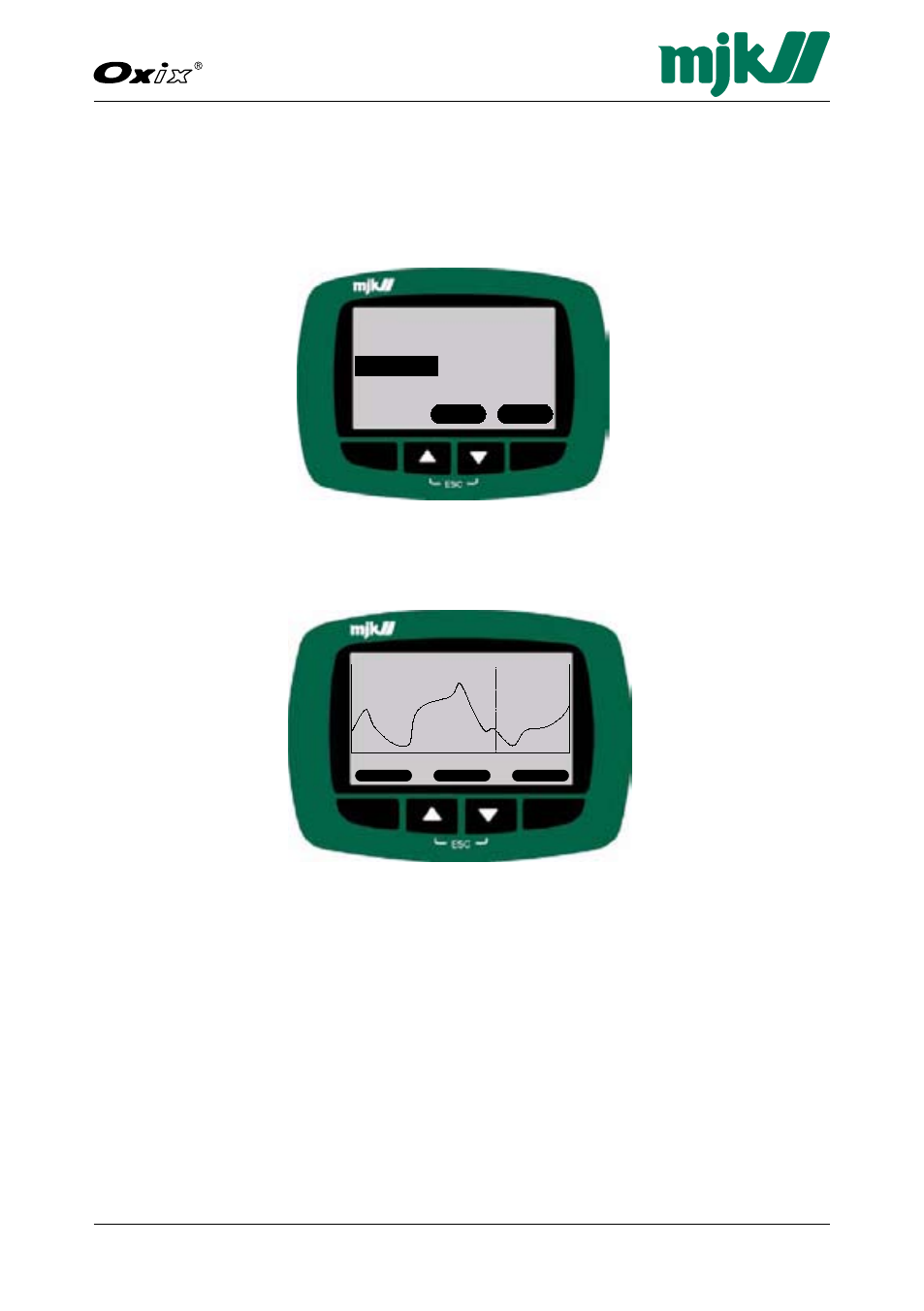

The content of the Data Logger can displayed on the Display Unit by pressing
the up/down keys, highlighting "Oxygen sat." and selecting "Graph"
100 %
2008-09-21 11:25:43 84 %
<< >> < >
Oxix1
Oxygen 98 %
Select Graph
The Display Unit then shows the Graph screen. To return to the Main Menu
display screen, select "esc" by pressing the up/down keys simultaneously.
100 %
2008-09-21 11:25:43 84 %
<< >> < >
Oxix1
Oxygen 98 %
Select Graph
The Y axis is automatically scaled according to the maximum value of the mA
output.
Double-arrow keys jump forward and backward one screen frame at a time.
Single-arrow keys move the cursor forward and backward on the screen.
The actual values at the cursor position is shown at the bottom of the screen.
