38 GB Oxix Manual 080915
FW: 841013-009, 846001-002, 841513-009
Dissolved Oxygen Transmitter
Display Read-out, one connected unit
All Oxix ® display read-outs are illustrated and described in this manual.
Chapter 6. Oxix ® Menus (on page 41 ) gives a detailed description of the 5-line
LCD screen displays shown during setup, configuration and normal opera-
tion.

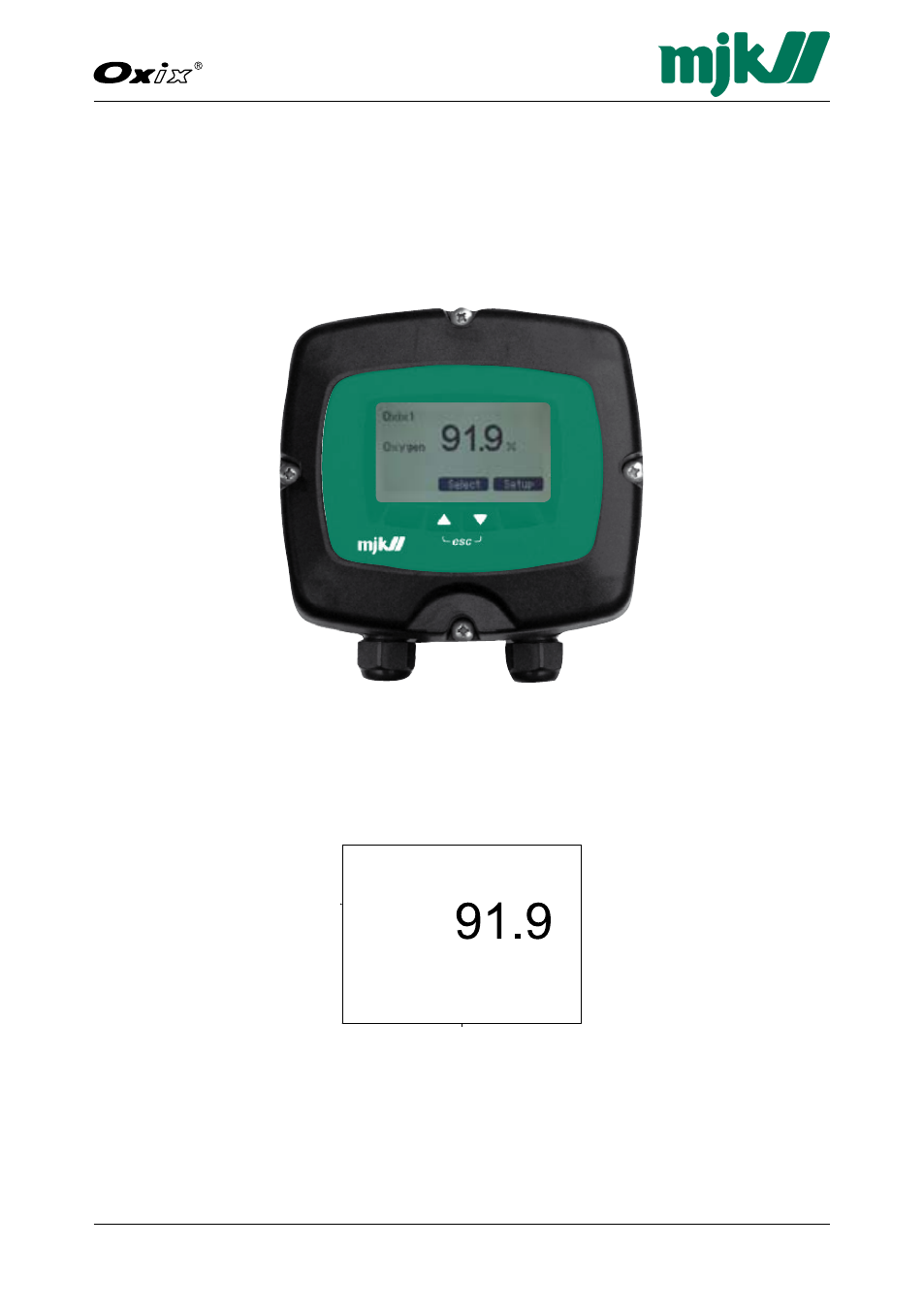

Display and keyboard for reading and programming
The display shown above will in the remaining part of this manual be stylized to
appear like this:
Specify main Screen
Datalogger
Password
Sensor name
Converter setup
Display setup
Back Select OK
Login
Activate/deactivate
Set new password
Back Select OK
Set log interval
0020 sec
Back Select >
Datalogger
Sensor name
Oxix 1
Back Select >
Sensor name
Select line
Linie 1 - Sensor name
Linie 2 - Oxygen sat.
Linie 3 -
Linie 4 -
Linie 5
Back Select OK
Specify main Screen Converter setup
Language
Set Clock
Modbus
Factory settings
Display SW version
Back Select OK
Display setup
Averaging
Units
mA output
Cleaning
High Alarm
Low Alarm
Sensor Error
Status
Factory settings
Service menu
Back Select OK
Select line content
Not in use
Sensor name
Measurement
Temperature
Clock
Back Select OK
Password
Type password
0000
Back Select >
Set new password
0000
Back Select >
Activate
Deactivate
Back Select OK
Login
Activate/
Deactivate
Set new password
Oxix1
Oxygen sat. %
Select Set up
Main Menu
Converter Overview Menu
Oxix1 91.9 %
Susix1 578 mg/L
Back Select Display
Display Overview Menu
Display setup
Sensor name
Aeration Tank Inlet
Back Select >
Sensor name
GB Oxix menuer #1 Main menu FW: 841013-009, 846001-002, 841513-009 Page 1 of 7 15. september 2008
