ViSolid
®
700 IQ (SW) Commissioning
3 - 11 ba76040e02 07/2013
Note
Do not suspend the sensor on the sensor connection cable. Use a
sensor holder or an armature. Information on this and other
IQ S
ENSOR N ET accessories is given in the YSI catalog and on the
Internet.
Connecting the sensor
to the sensor
connection cable

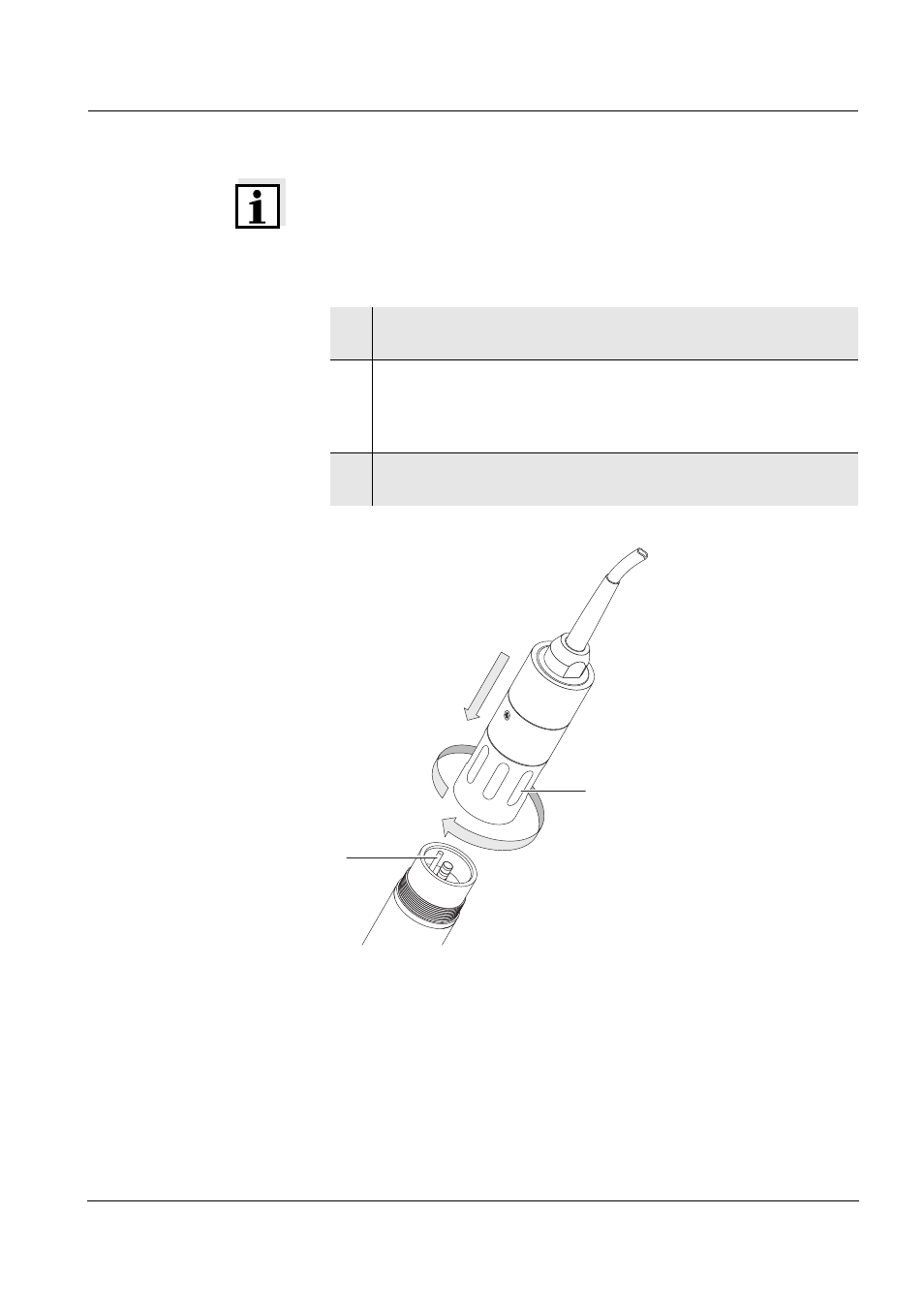

Fig. 3-8 Connect the sensor
4 Take the protective caps off the plug connections of the sensor
and the SACIQ sensor connection cable, and keep them safe.
5 Plug the socket of the SACIQ (SW) sensor connection cable
onto the plug head connector of the sensor. At the same time,
rotate the socket so that the pin in the plug head connector (1)
clicks into one of the two holes in the jack.
6 Then screw the coupling ring (2) of the sensor connection
cable onto the sensor up to the stop.
SACIQ
1
2
