System 182 Installation
3 - 23 ba76025e01 02/2012
Mounting the Universal
Transmitter in the panel

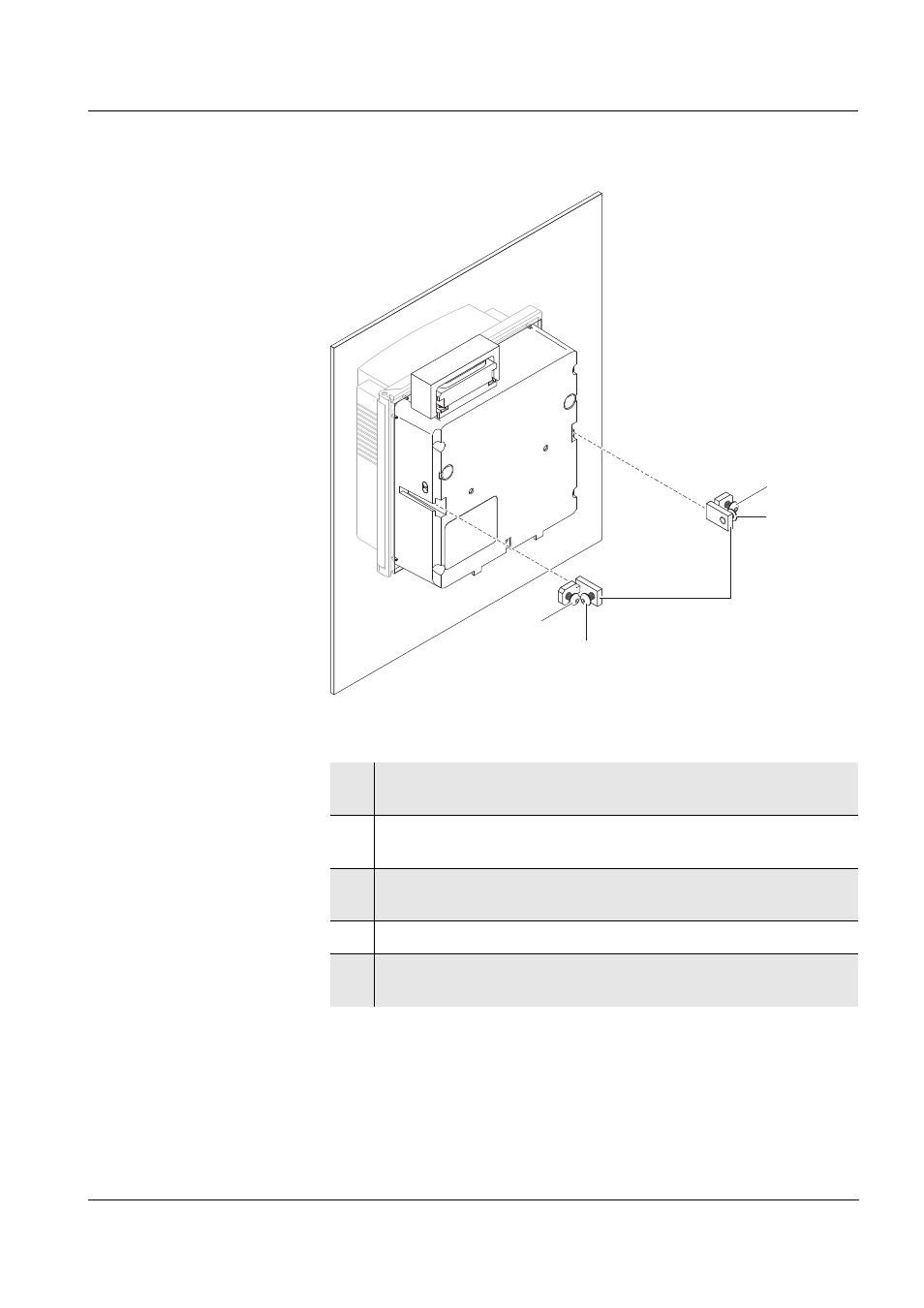

Fig. 3-20 Mounting the Universal Transmitter in the panel
1 Insert the Universal Transmitter in the panel aperture from the
front.
2 Slightly unscrew the screws (pos. 2 and 3) of the two angle
brackets (pos. 1 in Fig. 3-20), but do not remove them.
3 Push in the two angle brackets - as shown in Fig. 3-20 - into
the lateral guides of the Universal Transmitter up to the stop.
4 Tighten the screws (pos. 2).
5 Screw in the screws (pos. 3) until the screws rest snugly
against the panel.
