6 channel display, Channel display – Xylem HandyLab 680 User Manual
Page 38
Operation
HandyLab 680
38
ba77041e01
03/2014
4.6
Channel display
The HandyLab 680 manages the connected sensors and displays
which sensor is plugged to which connection.
15.03.2014 08:00
Info
Channel display

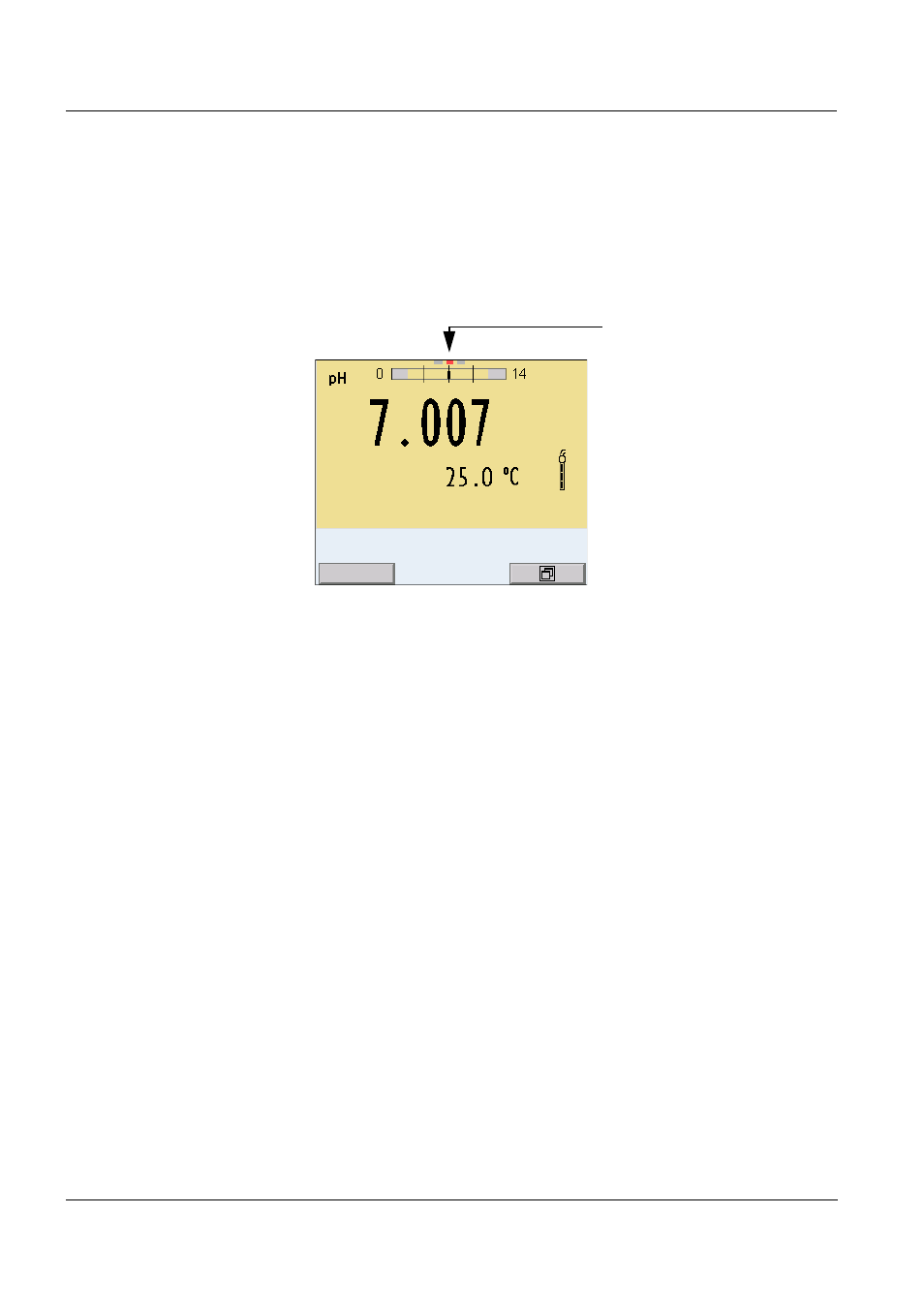

Display of the plug position
for the respective parameter
The red bar indicates for
each connected sensor to
which plug position of the
meter it is connected.
