HandyLab 680 Operation
27 ba77041e01 03/2014

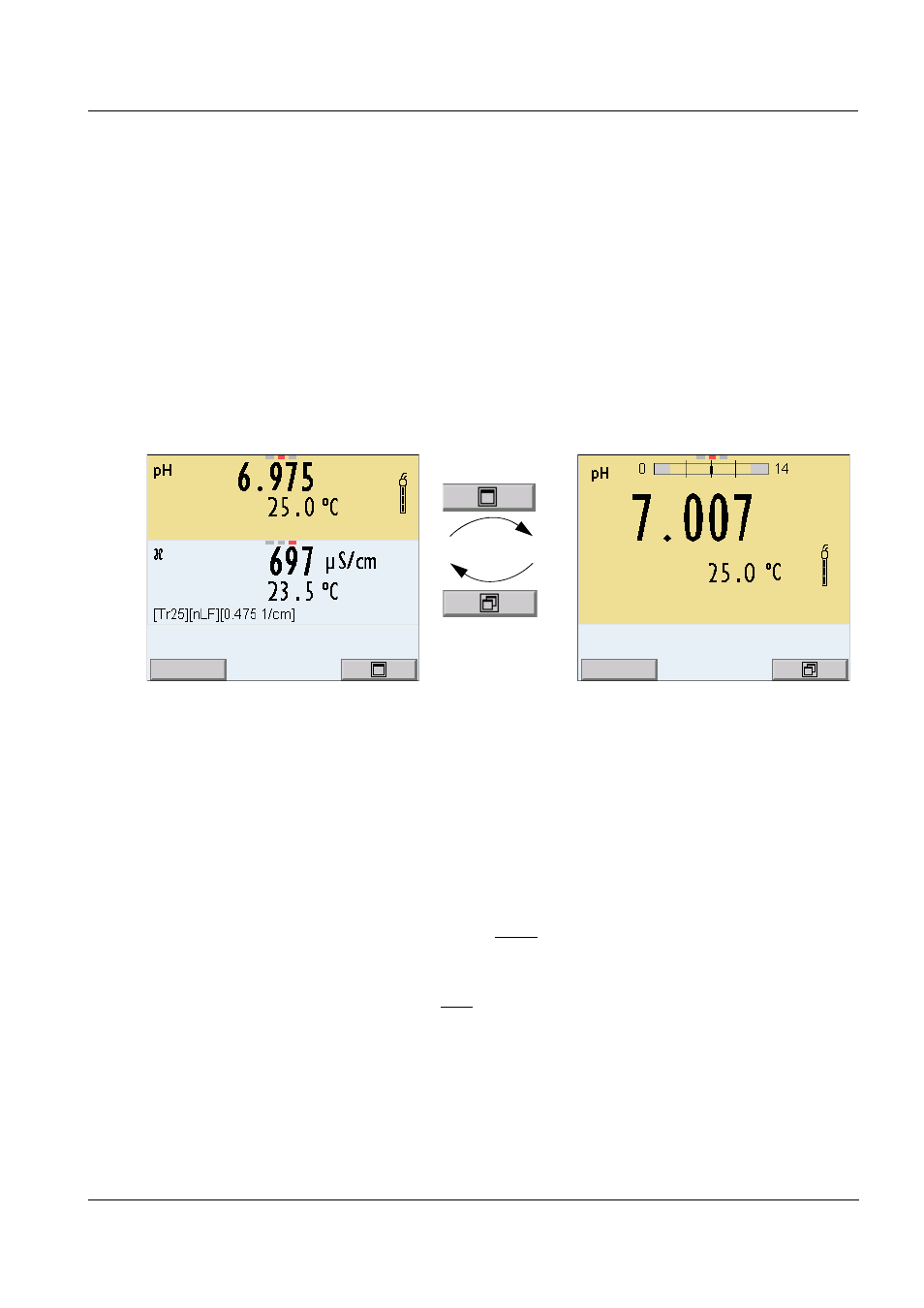

4.3.2 Display of several sensors in measuring mode
The measured values of the connected sensors can be displayed in the
following ways:
 Clear display of all connected sensors
 Detailed display of one sensor
(e.g. incl. CMC feature with pH sensors)
With the softkey you can very easily switch between the two display
types. The suitable softkey is displayed, depending on the operating
situation.
4.3.3 Navigation
Measured value display In the measured value display, you can
 use <><> to select one of several connected sensors. The
selected sensor is displayed with a colored background.
The following actions / menus refer to the selected sensor
 open the menu for calibration and measurement settings with
 open the system menu with the sensor-independent settings by
pressing
_
>long keystroke, approx. 2 s).
 change the display in the selected measuring window (e. g. pH ><−
mV) by pressing .
15.03.2014 08:00 Info 15.03.2014 08:00 Info
