AQUAFORCE Installation, Operation, and Maintenance
34
4.11 Q-Start
Paths: Status Screens / Set up(3)
Press the
PV/1 key at the Main Set Up menu display. Then press the ENTER key.

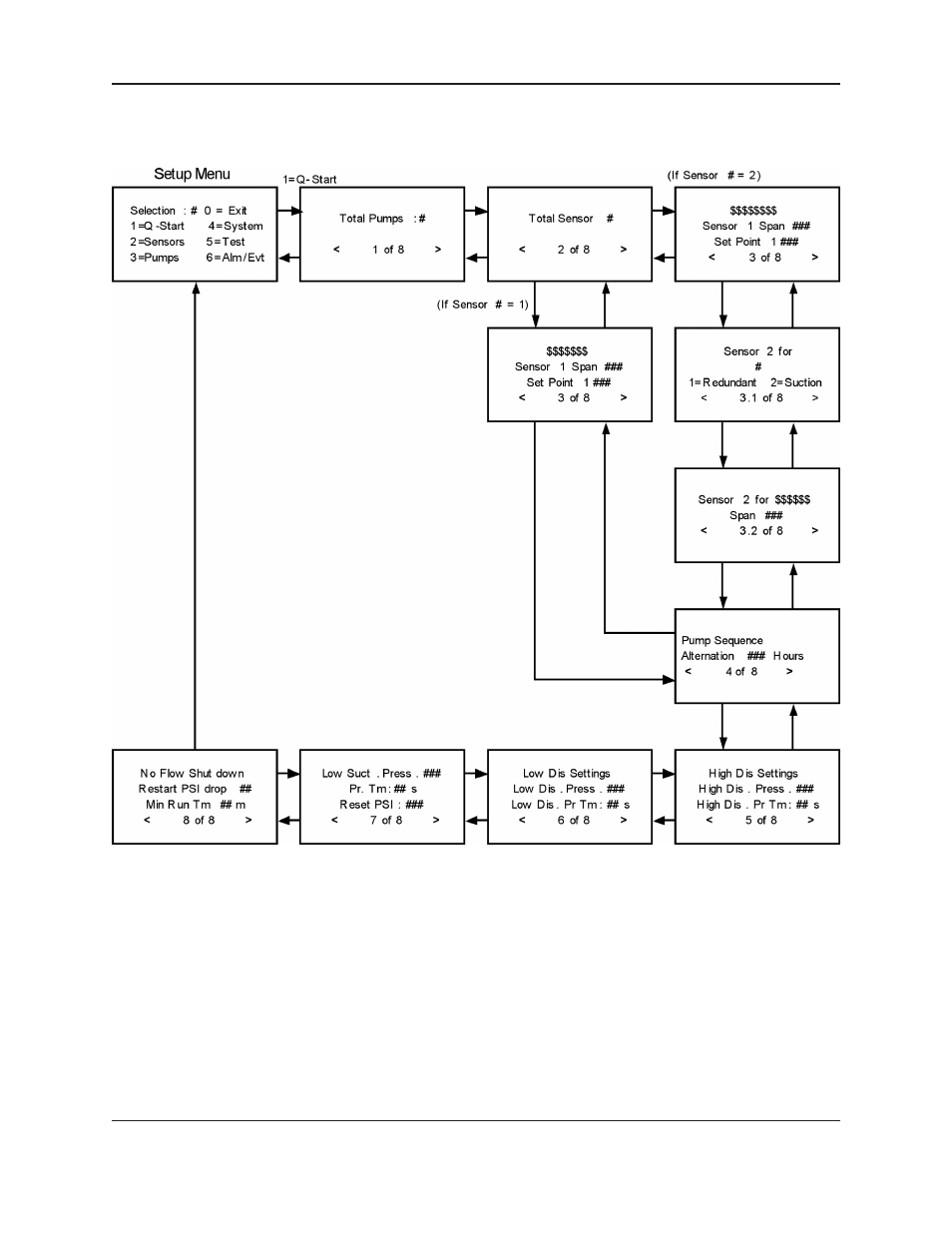

Q-Start will prompt the user for the parameters required to start up the system quickly. Some of these values will
already be correct due to the factory setup that is done for each AquaForce Pump Controller. Use
PREV/( )
and
NEXT/( ) to navigate through these screens. The new settings will come in effect only if all the screens
have been navigated as shown in the flow chart above.
Note: Press Up (▲) and Down (▼) keys together to exit the Q-Start at any point of time. Exiting the Q-start
intermittently before the last screen has been navigated, changes made under Q-Start will not come in effect.
▲
▲
