Configuration Jumpers
Jumper
Name
Pins What happens at system reset??
J1H2
Password
Clear 1-2 If these pins are jumpered, administrator and user
passwords will be cleared on the next reset. These
pins should not be jumpered for normal operation.
2-3 These pins should be jumpered for normal system
operation
J1H3
Recovery
Boot 1-2 If these pins are jumpered, the system will attempt
to recover the BIOS by loading the BIOS code into
the flash device from a floppy disk. This jumper is
typically used when the BIOS has become corrupted.
These pins should not be jumpered for normal
operation.
2-3 These pins should be jumpered for normal system
operation.

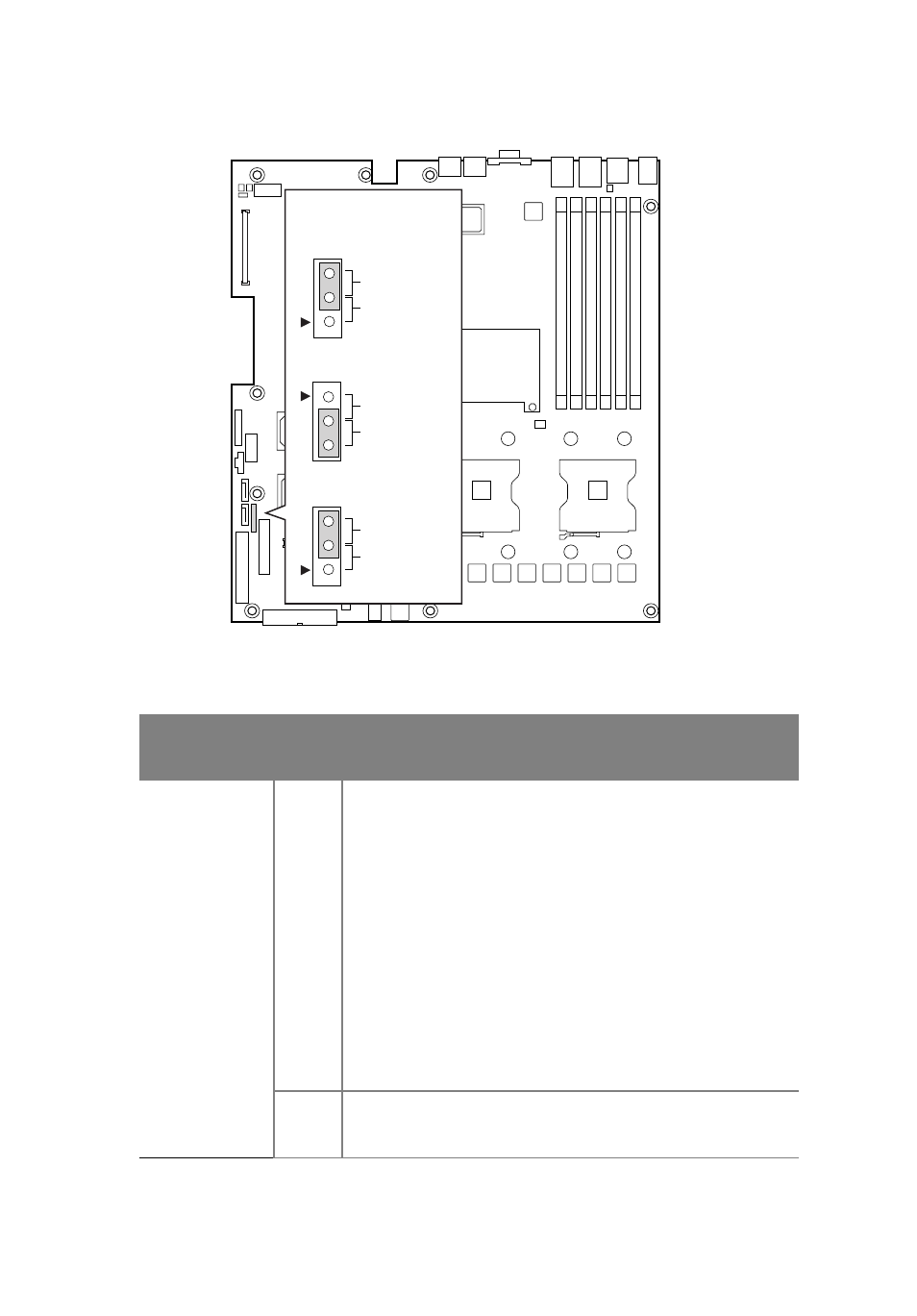

J1H2, J1H3, J1H5
3
2
J1H2 Pass Clr
3
2
3
2
J1H3 Rcvr Boot
J1H5 CMOS Clr
Protect
Erase
Recovery Boot
Normal Boot
BMC Control
Force Erase
