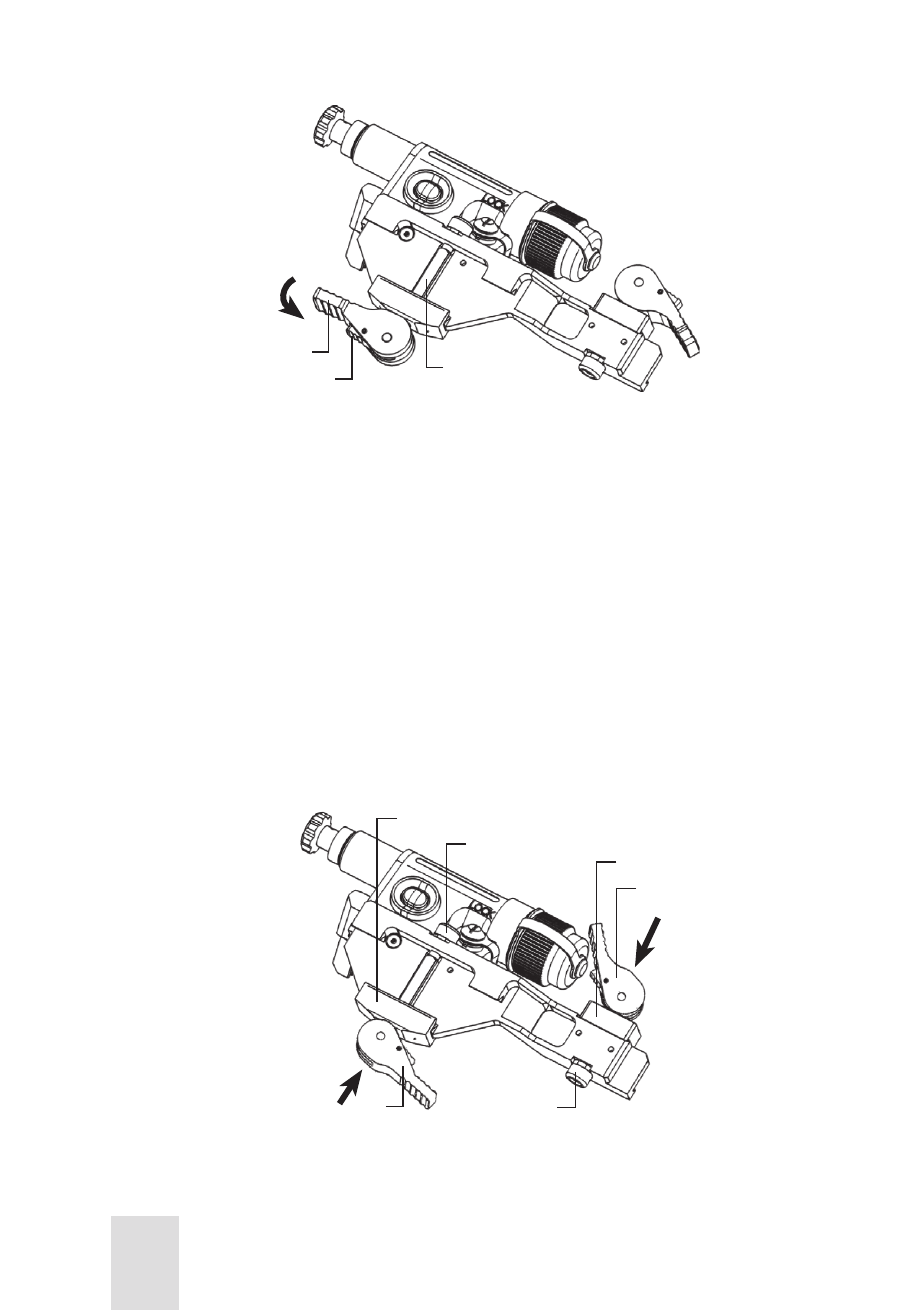

FIGURE 3-9. CLAMPING DEVICE ON THE MOUNT UNDERSIDE

3.1.7 CLAMPING DEVICE ADJUSTMENT

Adjustment procedures are identical for both of the AIM-PRO clamping de-

vices.
Adjust the holding power of the AIM-PRO clamping device as follows:
1. In order to detach the clamping device, remove the NVM/ 3X Magnifier

from the AIM-PRO, or remove the AIM-PRO from the weapon.

2. With the clamping device (A) unlocked (as shown in Figure 3-10), push the

cam (B) towards the arrow so that the nut (C) is released from the hole.

3. To tighten/ loosen the clamping device, push down on the cam (B) and

turn the nut (C) CW or CCW, respectively, by one-two increments (see

note below). When the cam (B) is released, the backward-moving springs

will push the nut (C) back into the hole.

B

C

FIGURE 3-10. CLAMPING DEVICE ADJUSTMENT

A

B

C

A
