3.1.2 COLLIMATOR INSTALLATION
The AIM-PRO collimator is fixed with two screws in the matching groove
(Figure 3-2, A). It can be mounted in one of two possible positions, using
the appropriate threaded openings found in the mount base and collimator
body (see below).
Position 1: Shown in Figure 3-2; to be used with the NYX-14 or PVS-14 analog
night vision monoculars (NVM).
Position 2: Shown displaced by 8mm (dash line); to be used with the Ar-
masight Spark or Sirius devices.
See Figure 3-3 (Part 3.1.3) for the correct position of the AIM-PRO collimator
when used with the NYX-14 Night Vision Monocular.
A

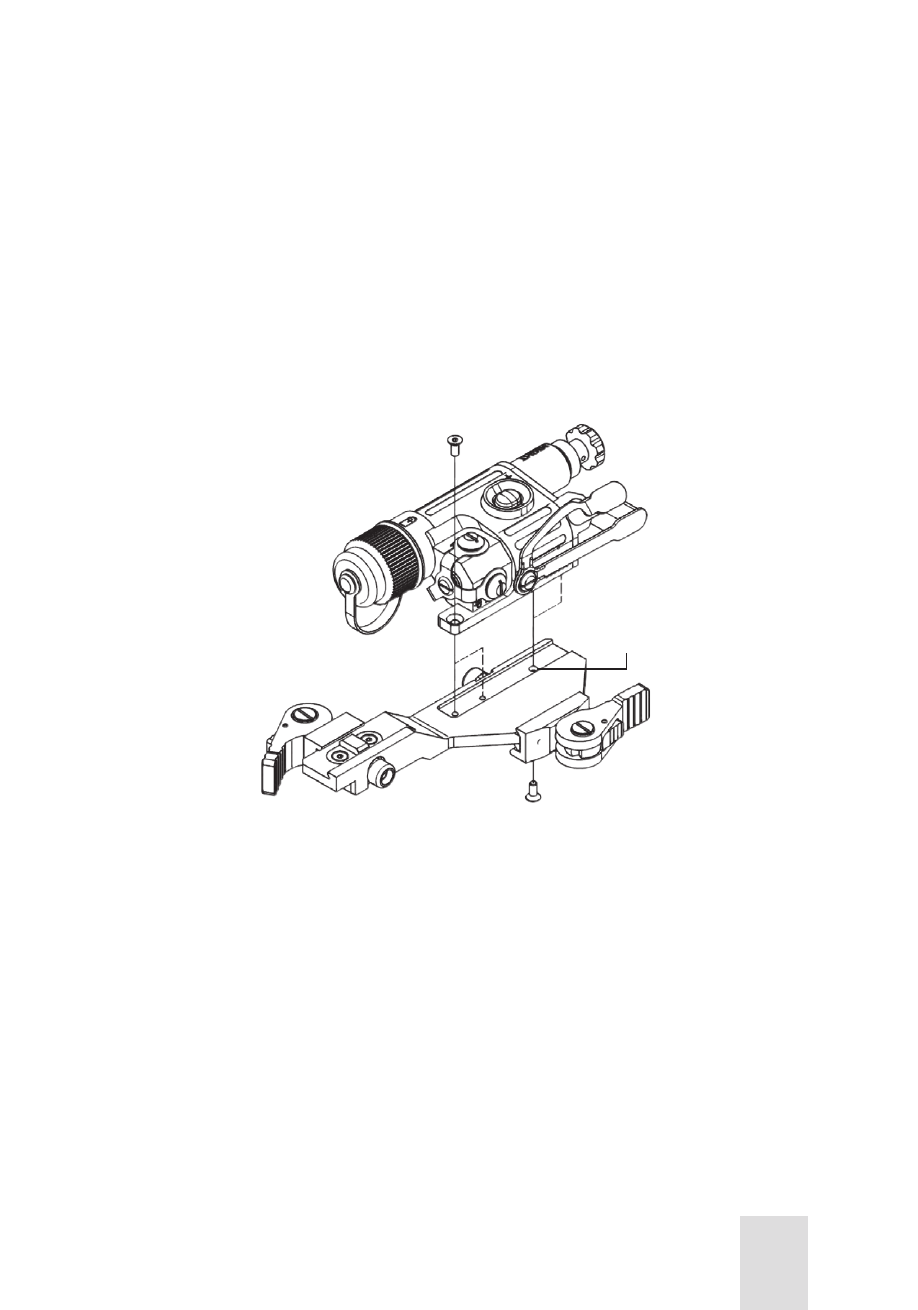

FIGURE 3-2. COLLIMATOR INSTALLATION
Reposition the collimator as follows:
1. Using a 1.5mm Allen key, unscrew both fixing screws.
2. Shift the collimator to the required position within the matching groove
(A).
3. After applying a small amount of thread lock to the threads, install and
tighten the screws.
3.1.3 MOUNTING THE NVM TO THE AIM-PRO
A. Mounting the Armasight NYX-14/ Spark/ Sirius Night Vision Mon-
ocular to the AIM-PRO
Figure 3-3 shows the fully-assembled AIM-PRO connected to the NYX-14
Night Vision Monocular.
