3.4 PLACE OF INSTALLATION
The UPS should be installed in a restricted area where only qualified personnel should be admitted.
The place of installation should be clean, dust-free, and provided with proper ventilation or air-
conditioning.
Verify for sufficient floor load capacity (see Section 3.1.1).
We strongly advice that the ambient temperature should not exceed 68° - 77°F (20° - 25°C), max. 95°F
(35°C). See Section 3.5.
NOTE !
Insufficient space on both sides of the UPS in respect to the wall can cause a
dangerous increase of the internal operating temperature.

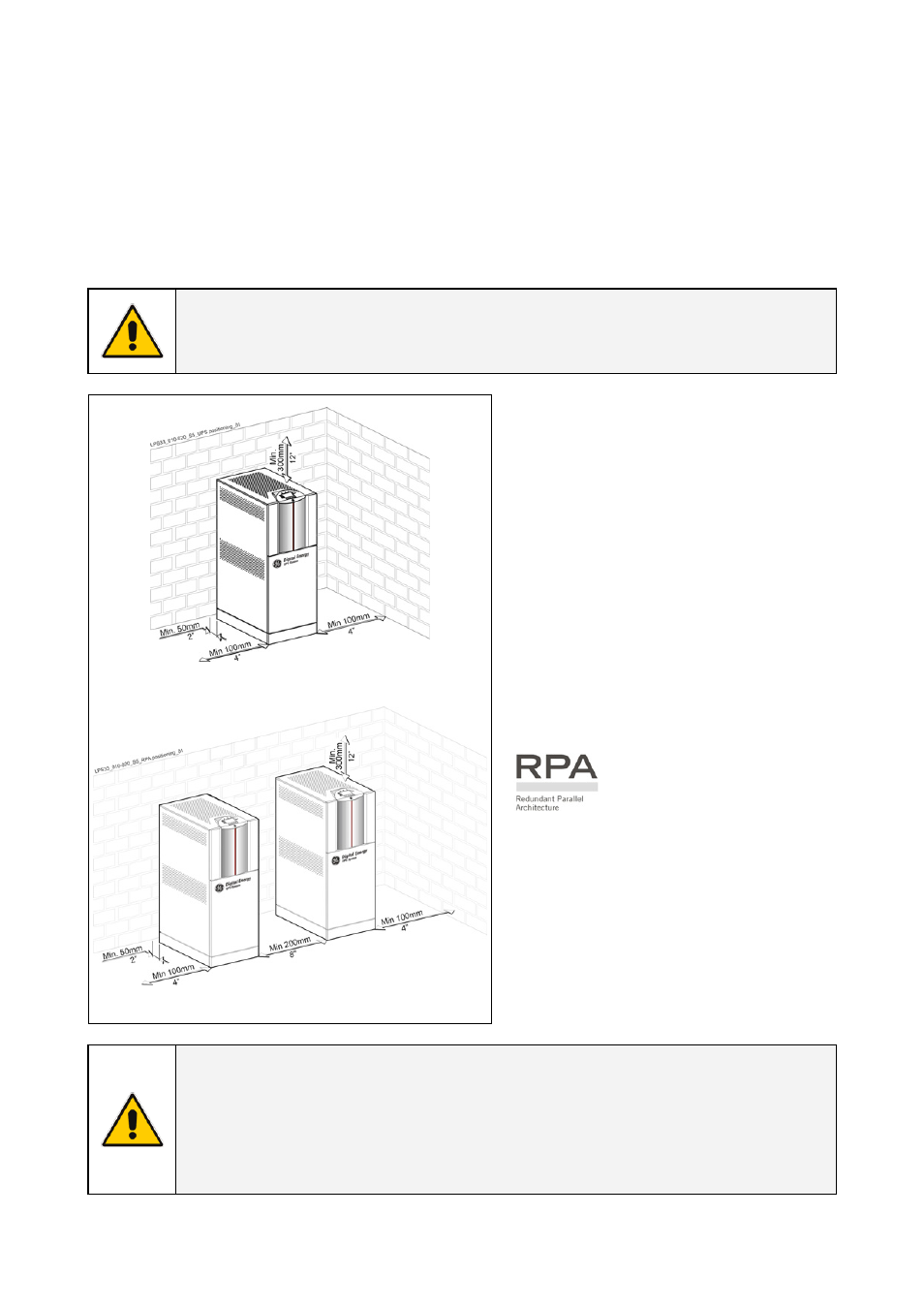

Fig. 3.4-1 LP 33U Series positioning
Fig. 3.4-2 LP 33U Series RPA parallel system positioning
LP 33U Series positioning
For easier access in case of maintenance
operation and for a free circulation around
the cabinet, we recommend to maintain the
following minimum distances:
Right & left side:
4”
(100mm)
Rear side:
2”
(50mm)
Top of the UPS: 12”
(300mm)
Right & left side:
4”
(100mm)
Rear side:
2”
(50mm)
Between units:
8”
(200mm)
Top of the UPS: 12”
(300mm)
NOTE !
Operating temperature is very important for valve regulated battery (maintenance
free).
Operation at temperatures higher than 68°F (20°C) will reduce life expectancy.
Respect the prescription of the battery supplier and other local standards.
The installation and cabling of the battery must be done by qualified people.
