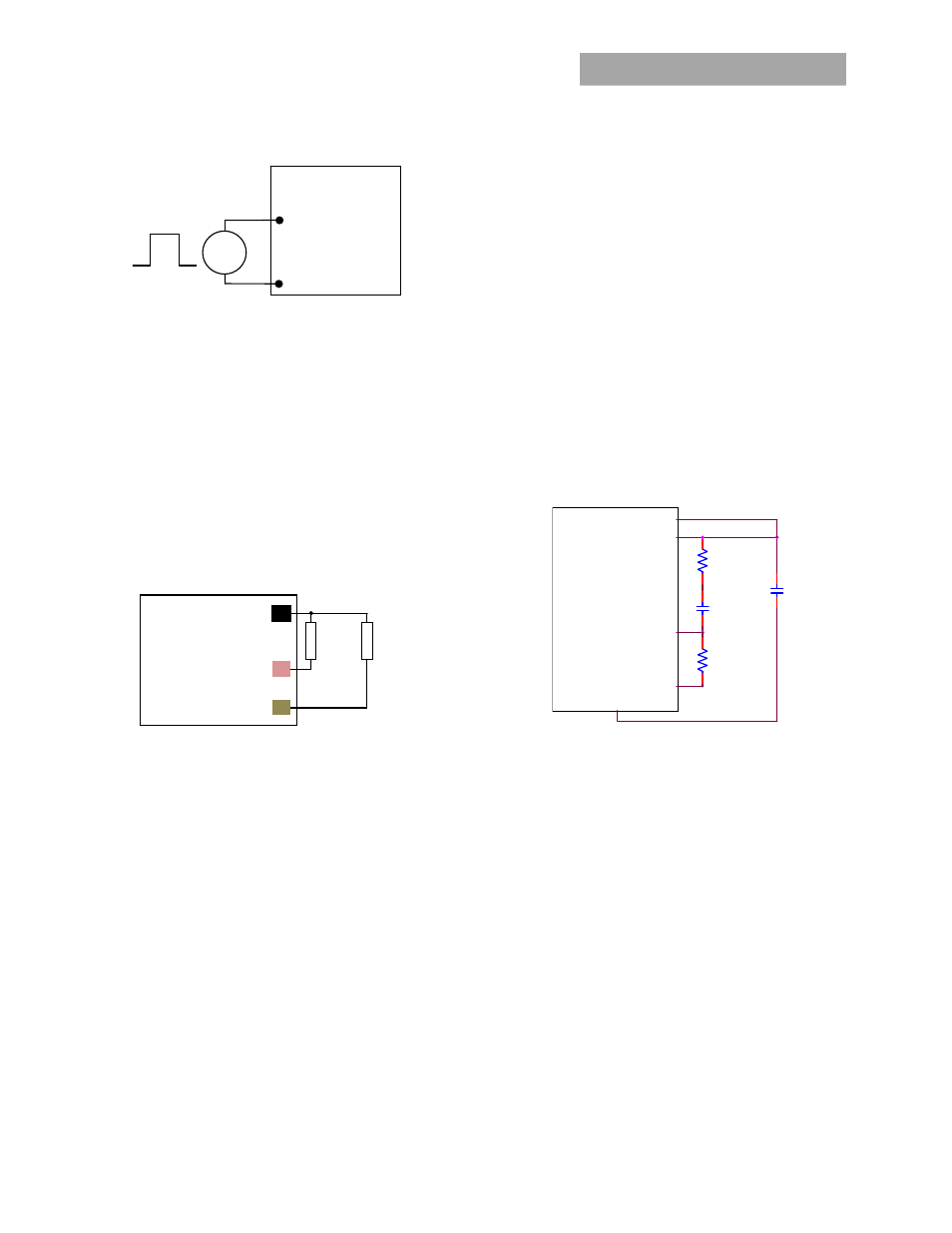

Figure 45. External source connections to synchronize
switching frequency of the module.
Measuring Output Current, Output Voltage and Input
Voltage
Please see the Digital Feature Descriptions section.
Dual Layout
Identical dimensions and pin layout of Analog and Digital
PicoDLynx modules permit migration from one to the other
without needing to change the layout. To support this, 2
separate Trim Resistor locations have to be provided in the
layout. As shown in Fig. 46, for the digital modules, the
resistor is connected between the TRIM pad and SGND and in
the case of the analog module it is connected between TRIM
and GND.
Caution – For digital modules, do not connect SIG_GND to
GND elsewhere in the layout
Figure 46. Connections to support either Analog or Digital
PicoDLynx on the same layout.
Tunable Loop TM
The module has a feature that optimizes transient response
of the module called Tunable Loop TM .
External capacitors are usually added to the output of the
module for two reasons: to reduce output ripple and noise
(see Figure 38) and to reduce output voltage deviations from
the steady-state value in the presence of dynamic load
current changes. Adding external capacitance however
affects the voltage control loop of the module, typically
causing the loop to slow down with sluggish response.
Larger values of external capacitance could also cause the
module to become unstable.
The Tunable Loop TM allows the user to externally adjust the
voltage control loop to match the filter network connected
to the output of the module. The Tunable Loop TM is
implemented by connecting a series R-C between the VS+
and TRIM pins of the module, as shown in Fig. 47. This R-C
allows the user to externally adjust the voltage loop
feedback compensation of the module.
Figure. 47. Circuit diagram showing connection of R
TUME
and C
TUNE
to tune the control loop of the module.
Recommended values of R
TUNE
and C
TUNE
for different output
capacitor combinations are given in Table 2. Table 2 shows
the recommended values of R
TUNE
and C
TUNE
for different
values of ceramic output capacitors up to 1000uF that
might be needed for an application to meet output ripple
and noise requirements. Selecting R
TUNE
and C
TUNE
according
to Table 2 will ensure stable operation of the module.
In applications with tight output voltage limits in the
presence of dynamic current loading, additional output
capacitance will be required. Table 3 lists recommended
values of R
TUNE
and C
TUNE
in order to meet 2% output
voltage deviation limits for some common output voltages
in the presence of a 3A to 6A step change (50% of full load),
with an input voltage of 12V.
Please contact your GE technical representative to obtain
more details of this feature as well as for guidelines on how
to select the right value of external R-C to tune the module
for best transient performance and stable operation for
other output capacitance values.
VS+
MODULE
SIG_GND
TRIM
VOUT
RTune
CTune
RTrim
CO
GND
MODULE
(PVX006 / PDT006) Rtrim1
for
Digital
GND(Pin 7)
SIG_GND
TRIM
Rtrim2
for
Analog
