GE Industrial Solutions 6A Digital PicoDLynx User Manual
6a digital picodlynx, Non-isolated dc-dc power modules, Data sheet

GE
Data Sheet
April 29, 2013
©2013 General Electric Company. All rights reserved.
6A Digital PicoDLynx
TM
: Non-Isolated DC-DC Power Modules
3Vdc –14.4Vdc input; 0.45Vdc to 5.5Vdc output; 6A Output Current
Features
Compliant to RoHS II EU “Directive 2011/65/EU”
Compatible in a Pb-free or SnPb reflow environment
Compliant to IPC-9592 (September 2008), Category 2,
Class II
DOSA based
Wide Input voltage range (3Vdc-14.4Vdc)
Output voltage programmable from 0.6Vdc to 5.5Vdc
via external resistor. Digitally adjustable down to
0.45Vdc
Digital interface through the PMBus
TM #
protocol
Tunable Loop
TM
to optimize dynamic output voltage
response
Flexible output voltage sequencing EZ-SEQUENCE
Power Good signal
Fixed switching frequency with capability of external
synchronization
Output overcurrent protection (non-latching)
Over temperature protection
Remote On/Off
Ability to sink and source current
Cost efficient open frame design
Small size: 12.2 mm x 12.2 mm x 7.25 mm (0.48 in x
0.48 in x 0.29 in)
Wide operating temperature range [-40°C to
105°C
(Ruggedized: -D), 85°C(Regular)]
UL* 60950-1Recognized, CSA
†
C22.2 No. 60950-1-03
Certified, and VDE
‡
0805:2001-12 (EN60950-1) Licensed
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Servers and storage applications
Networking equipment
Industrial equipment
Description
The 6A Digital PicoDLynx
TM
power modules are non-isolated dc-dc converters that deliver up to 6A of output current. These
modules operate over a wide range of input voltage (V
IN
= 3Vdc-14.4Vdc) and provide a precisely regulated output voltage from
0.45Vdc to 5.5Vdc, programmable via an external resistor and further adjustable through PMBus. Features include a digital
interface using the PMBus protocol, remote On/Off, adjustable output voltage, over current and over temperature protection. The
PMBus interface supports a range of commands to control and monitor the module. The Tunable Loop
TM
feature allows the user to
optimize the dynamic response of the converter to match the load with reduced amount of output capacitance leading to savings
on cost and PWB area.
* UL is a registered trademark of Underwriters Laboratories, Inc.
† CSA is a registered trademark of Canadian Standards Association.
‡ VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
# The PMBus name and logo are registered trademarks of the System Management Interface Forum (SMIF)

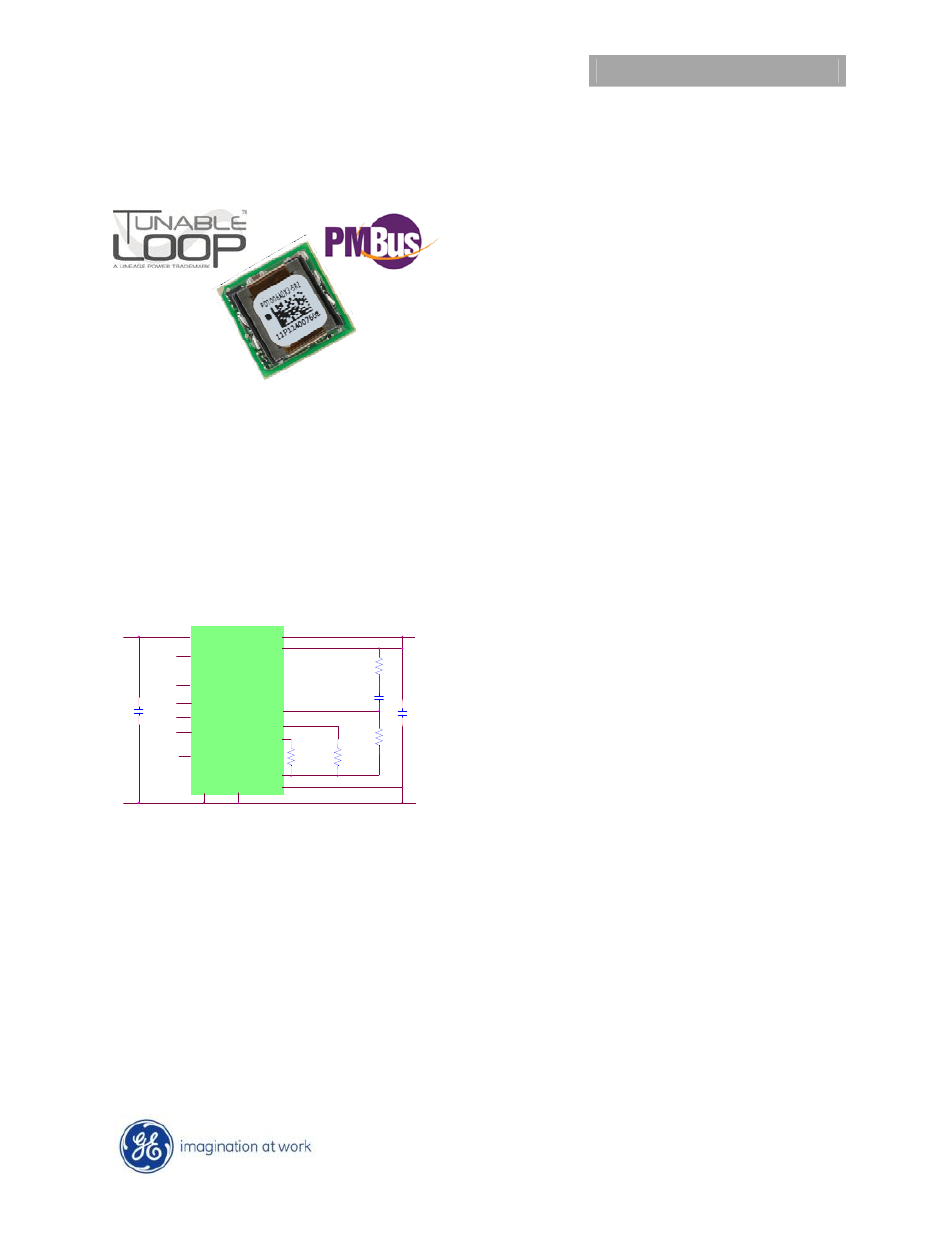

TRIM
VOUT
VS+
GND
RTUNE
CTUNE
RTrim
VIN
Co
Cin
Vout+
Vin+
ON/OFF
SEQ
MODULE
PGOOD
SMBALRT#
SIG_GND
ADDR1
RADDR0
CLK
DATA
ADDR0
VS-
RADDR1
GND
SYNC
RoHS Compliant
