EPM 1500 SUB-METER – INSTRUCTION MANUAL 3–1
EPM 1 500 Single Point
Submetering System
Chapter 3: Using the Meter
GE Energy
Industrial Solutions
Using the Meter
3.1 Menu Navigation
3.1.1 User Interface
The following figure shows the EPM 1500 user interface located on the front panel of the
meter. It is easy to navigate the various sub-menus to read metering data, reset values and
view configuration data.

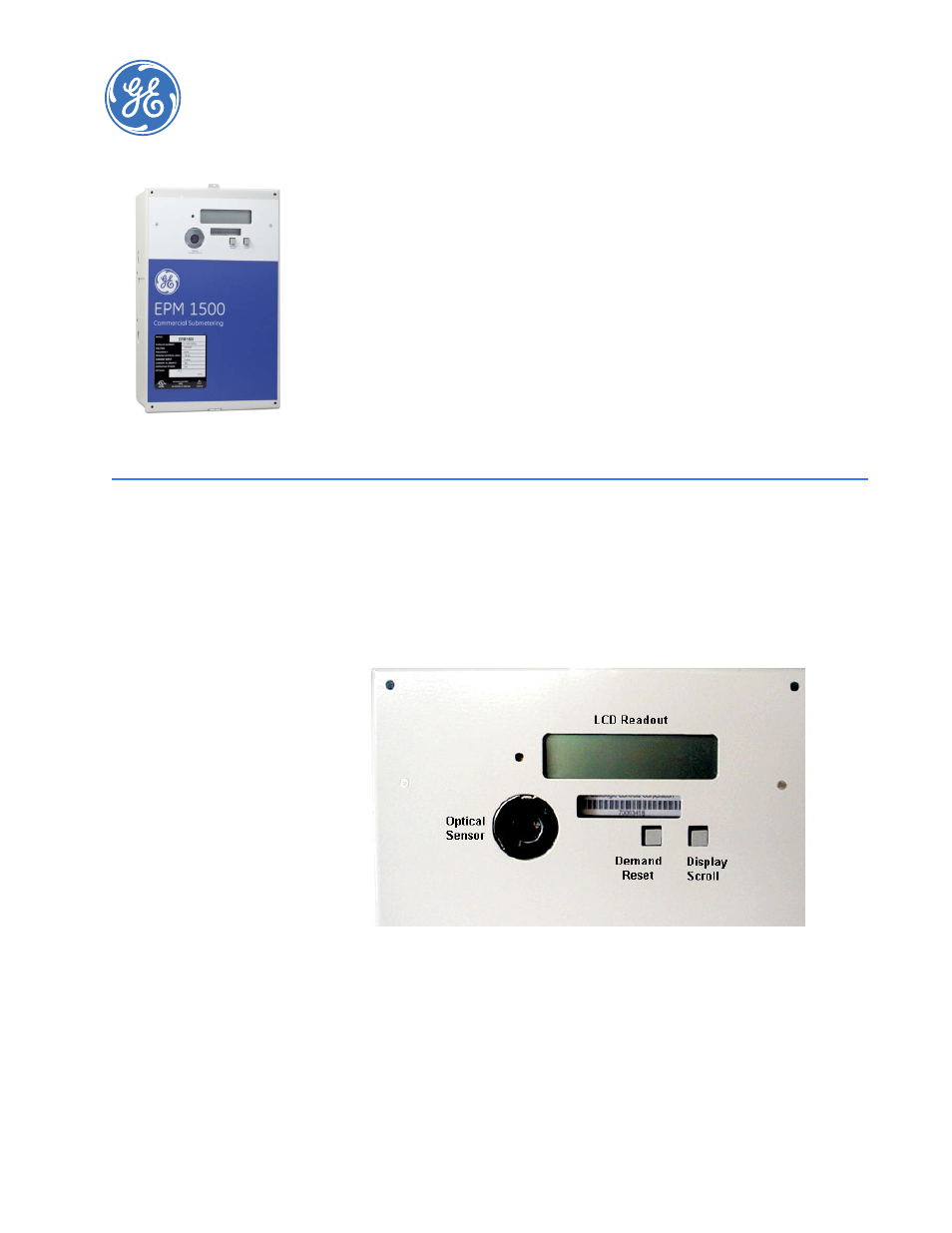

FIGURE 3–1: EPM 1 500 User Interface
Press and hold the “Display Scroll” button. After two seconds, the LCD will display the
REVERSE message. Two seconds later, the LCD will display FORWARD . Two seconds later,
a different sub-menu register heading as shown on the following page (the top row) in will
be displayed in two-second intervals. Note that the EPM 1500 defaults to the kWh register.
709719A1.CDR
