Figure 12-2: millennium controller display, And boards, Reference figures, continued – GE Industrial Solutions GPS 4812_24 User Manual
Page 88
Galaxy Power System 4812/24
12 - 8 Troubleshooting Preparations
Issue 9 Januray 2008
Reference Figures, continued

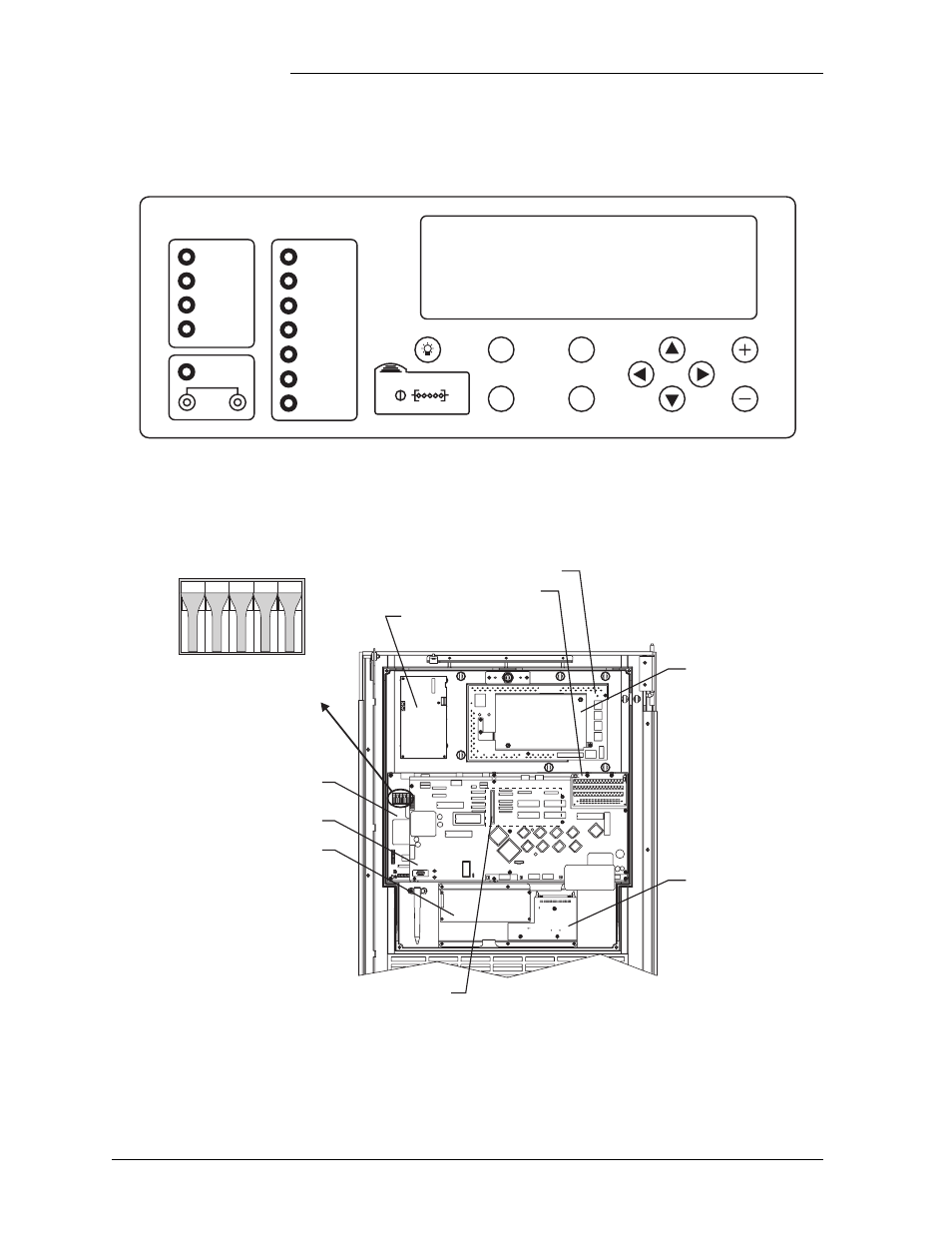

Figure 12-2: Millennium Controller Display
Galaxy Millennium Controller
Alarm Status
Remote
Modules
Battery on
Discharge
Critical
Major
Minor
Normal
AC System
Battery
Controller
Distribution
Rectifier
Modem
Equipment Status
Escape
Help
Menu
Enter
V
Figure 12-3: Location of Millennium Controller Fuses
and Boards
BSJ Intelligent
Controller Board
BSH Basic
Controller Board
BSL Alarm Termination Board
BLJ Terminal Board
BIC Bay
Interface Card
BSK2 Display
Control Board
BSW Data Switch Board
(mounting location)
BSM5 Modem Board or
EBW1 Gateway Board
F1 - Peripheral Monitor Power
F2 - Intelligent Power
F3 - Basic Power
F4 - Voltage Sense
F5 - Alarm Battery Supply
Controller Fuses
F1 F2 F3 F4 F5
Millennium Display Board
