Galaxy Power System 4812/24
Issue 9 Januray 2008 Galaxy Controllers 3 - 5
Galaxy Vector Controller
Design The Galaxy Vector Controller consists of an electronics board and a
terminal connection board. The Vector provides a wide range of control
and monitoring features and issues appropriate alarms in the event a
failure occurs.
User Interface and
Display
The Vector’s primary user interface is a panel that includes an LCD
display, three LEDs, and an array of pushbutton keys. Figure 3-2
illustrates the Vector’s front panel.

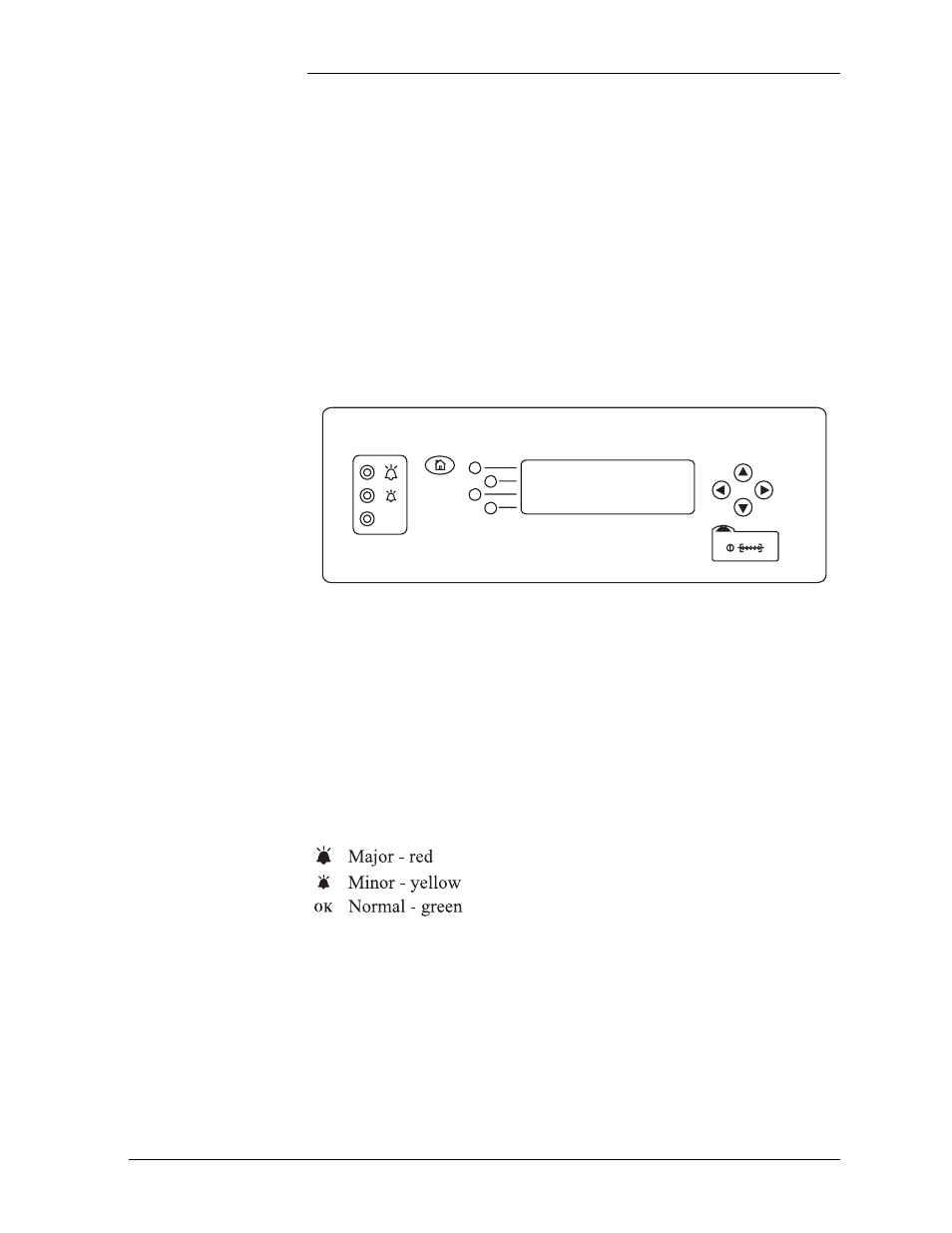

Figure 3-2: Galaxy Vector Controller Front Panel
Galaxy Vector Controller
OK
Default Display The default display shows the system voltage, load current, and plant
state. When active alarms are present, the last line of the display will
read “
← View Alarms.” Press the corresponding button to view the
active alarms.
LEDs LEDs indicate the alarm state of the system.
