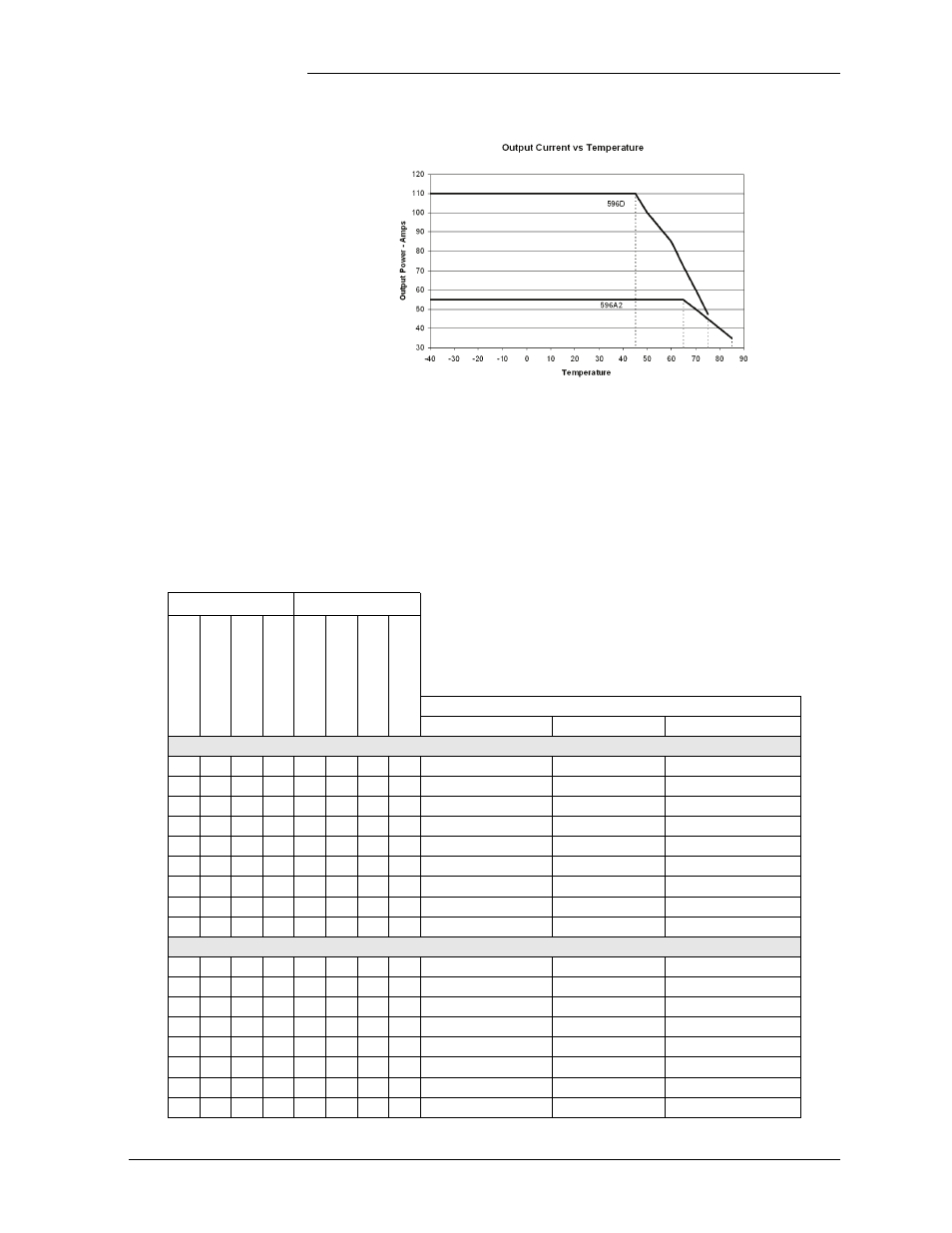

Figure 9-1: Output Current vs. Temperature
Galaxy Power System 4812/24
Issue 9 Preliminary Januray 2008 Specifications 9 - 5
AC Input Panels
Applications and
Cross Reference
Table 9-C identifies panel applications and reference documents.
Table 9-C: AC Input Panels
Cabinet Panel
Ha
lf-H
eight
Fu
ll-Heigh
t
Sh
el
ves
Max Rectifie
rs
T
erminal Block
Cir
cuit Br
eaker
s
Ph
ase to Ph
ase
Ph
ase to Neut
ral
Reference Document
H569-436 ED83142-30 Product Manual
596A2 Rectifier
X 2 8 X X G71H G6 Figure 5-2
X 2 8 X X G73F G6 Figure 5-2
X 3 12 X X G72F G7 Figure 5-1
X 2 8 X X G74F G6M Figure 5-2
X 2 8 X X G74H G6M Figure 5-2
X 2 8 X X X G76H G8 Figure 5-5
X 2 8 X X X G79F G8 Figure 5-5
X 3 12 X X X G77F G9 Figure 5-4
X 4 16 X X X G78F G9 Figure 5-4
596D Rectifier
X 1 4 X X G171H G21 Figure 5-3
X 2 8 X X G173F G23 Figure 5-2
X 3 12 X X G172F G19 Figure 5-1
X 1 4 X X X G175H G22 Figure 5-6
X 2 8 X X X G176H G22 Figure 5-5
X 2 8 X X X G179F G22 Figure 5-5
X 3 12 X X X G177F G20 Figure 5-4
X 4 16 X X X G178F G20 Figure 5-4
