2 LAYOUT
2.1 LAYOUT LP 33U Series / 10 & 20 KVA

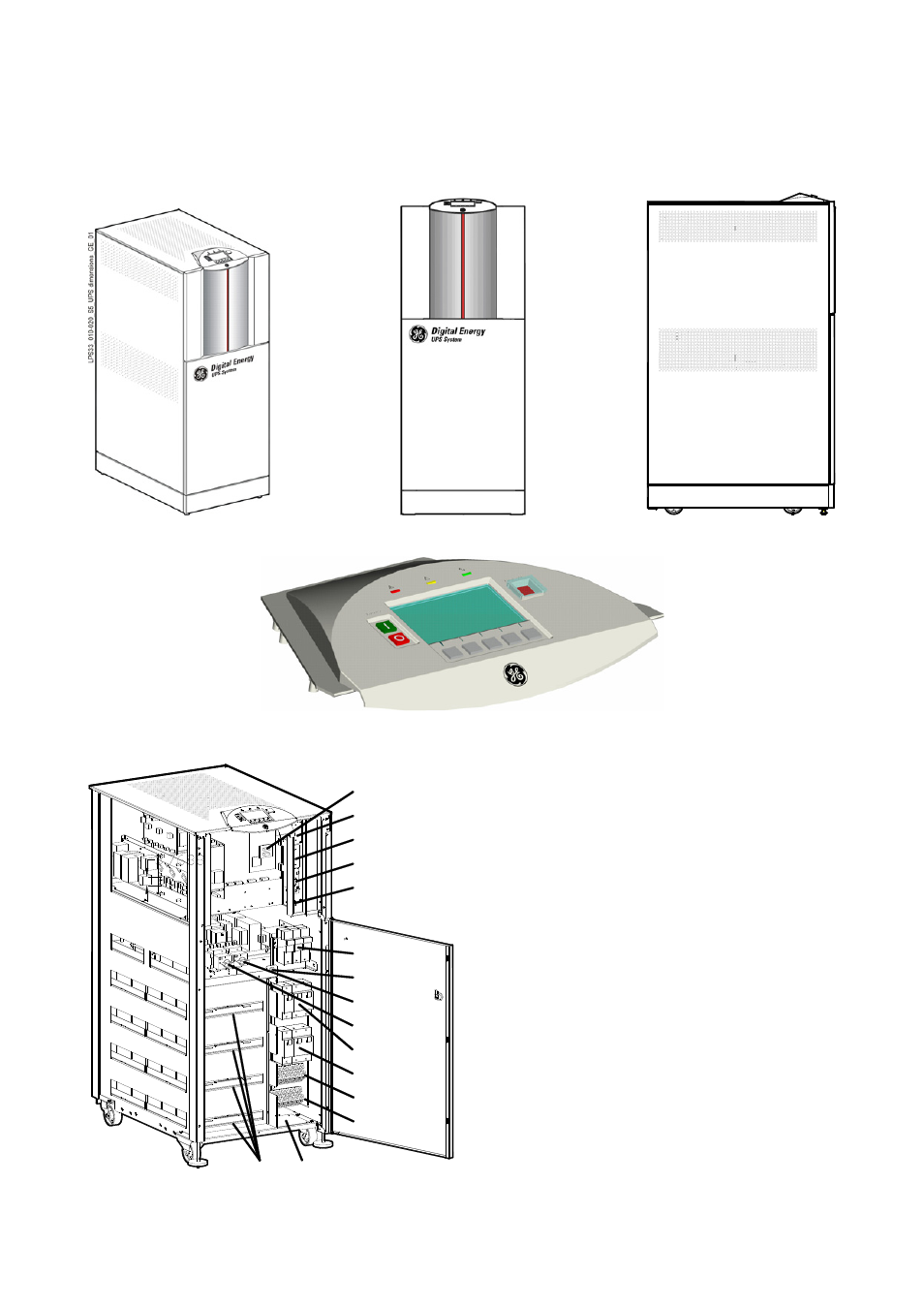

Fig. 2.1-1 General view Fig. 2.1-2 Front view
LPS33_010-020_S5_UPS lateral_01
Fig. 2.1-3 Side view
Fig. 2.1-4 Control panel
CI Customer Interface (option)
BS Battery shelf
F1 - F2 - F3 Rectifier fuses
F9 - F10 - F11 Battery fuses
F13 - F14 - F15 Battery fuses (only for 20 kVA)
OB Opening for bottom cable entry
Q1 UPS output switch
Q2 Manual bypass switch
RPA RPA board (option)
RC Relay card
RS232 Serial port RS232
SNMP Advanced SNMP card (option)
Total Off Total Off push-button
X1 Terminals for utility input
SNMP
RPA
CI
RC
RS232
Q2
F1- F2 - F3
F13-F14-F15
F9-F10-F11
OFF
ON
OFF
ON
X1
Q1
Total Off
BS OB
X2
Fig. 2.1-5 Front view without panels X2 Terminals for load output
