PAGE 18 23 SEP 1999 CH.3: GEN250/251 COMM.
6.

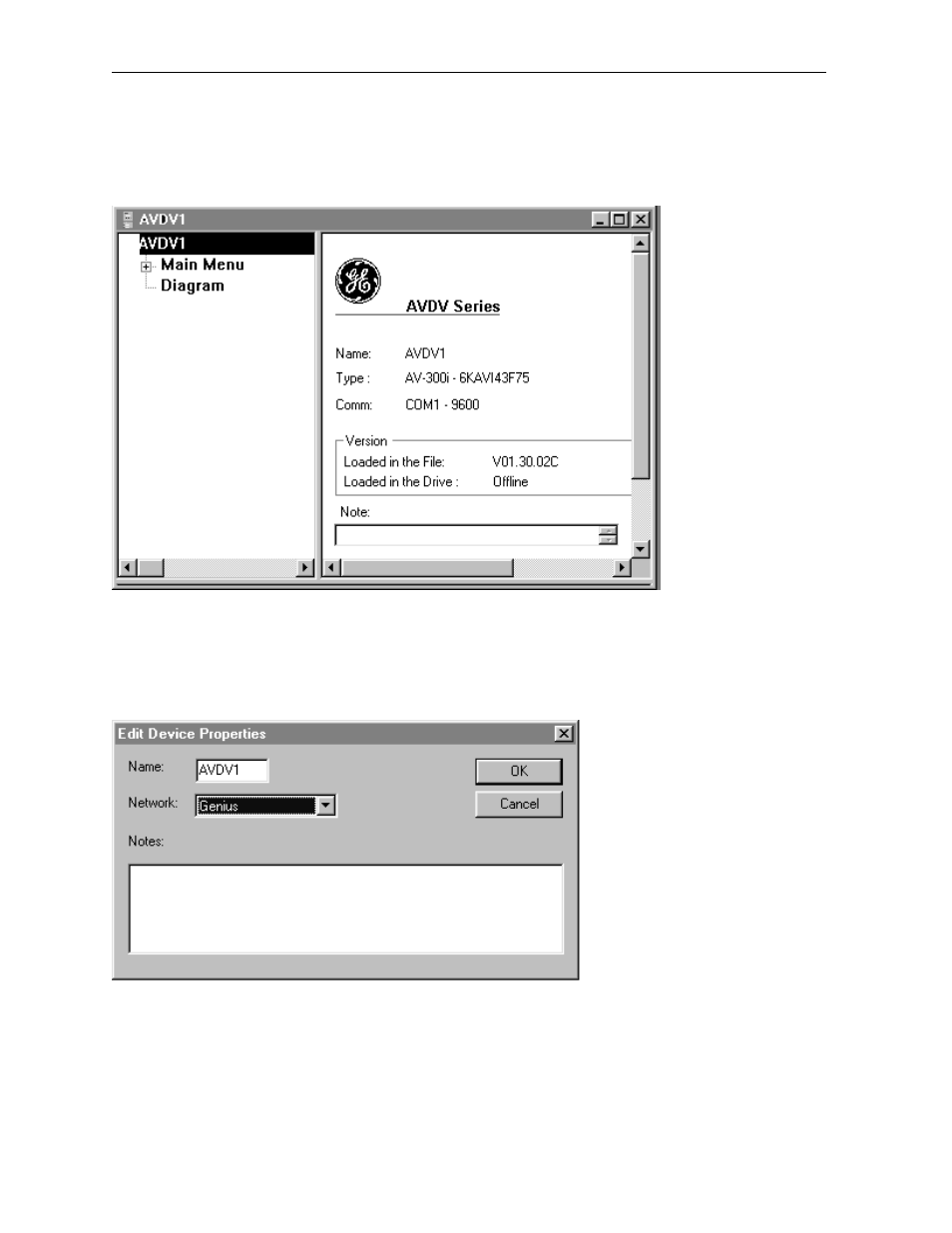

The following screen appears. This step requires the user to name the configuration file for the
drive that is being configured. It also requires that the user select the Genius network.
In this example, the drive configuration name is AVDV1. If a different drive name is desired (such as
AVDV2), double-click on the highlighted name (or right-click on the name and select Modify).
Figure 3.6
7.
The following screen appears. Type in the drive name in the Name block, and from the Network
block, select Genius from the pull-down menu. Press OK.
Figure 3.7
NOTE: It is highly recommended that the user refer to the GE Control Toolbox Help File at this time to
obtain highly useful information regarding the Genius Network Configuration. Select Help, click on
Contents, click Index tab, and type Genius Configuration.
