3.4.2 SBI (GEN250/251) Configuration Procedures
In this configuration example, the user followed the steps in Section 3.4.1 and has predetermined
which parameters and priorities to choose for the two types of data in Genius – Directed Control
Data and Global Data.
To configure for Directed Control Data, the parameter for Word0 is going to be “Discrete Bit Word,”
and the parameter for Word1 is going to be “Speed ref 1.” The user is going to select the words to
be high priority. The user must configure the bits as well. Bit0 is going to be “Enable Drive,” and
the parameter for Bit1 is going to be “Start/Stop.” To configure Global Data, the user employs the
similar procedures although the desired parameters and priorities can vary.
1. Install GE Control System Toolbox Software by following the manufacturer’s instructions.After
openng the GE Toolbox Software, the following screen appears. Select File, New.

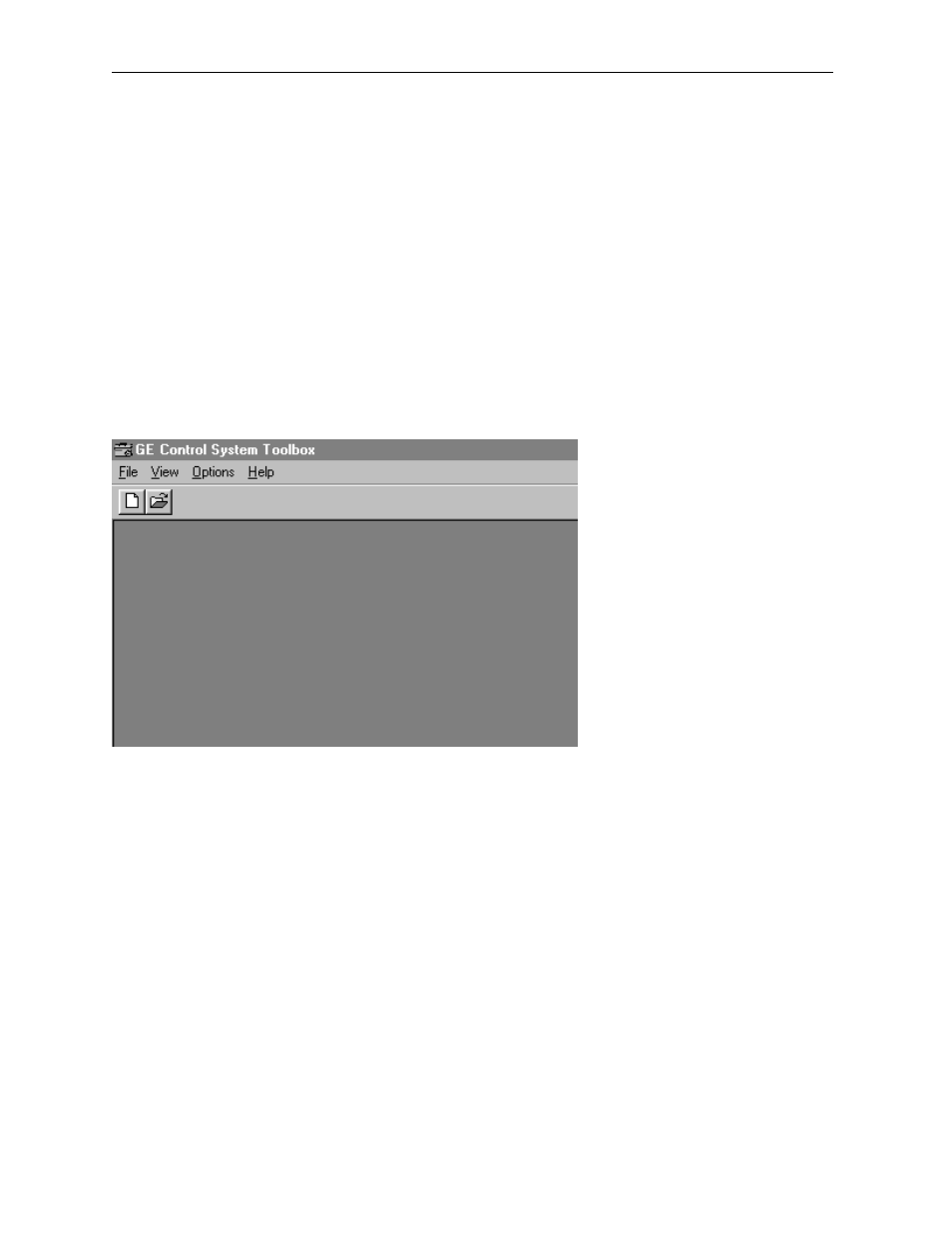

Figure 3.1
2. The following screen appears. Select AVDV Series Drive and press OK.
