Data Sheet
May 4, 2012 12V Mega TLynx TM : Non-Isolated DC-DC Power Modules:
6.0 – 14Vdc Input; 0.8Vdc to 3.63Vdc Output; 30A output current
LINEAGE POWER 17

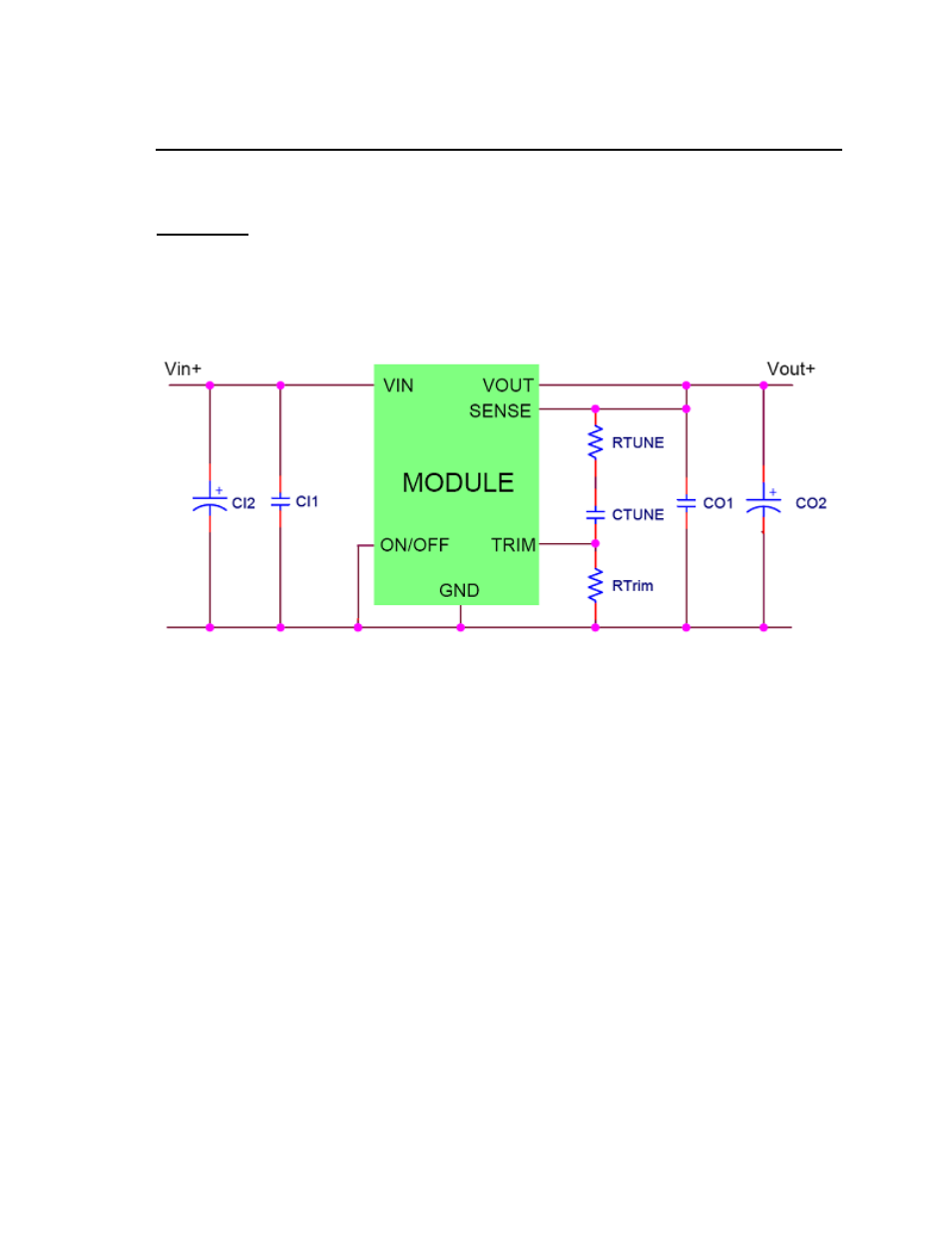

Example Application Circuit
Requirements:
Vin:
12V
Vout: 1.8V
Iout: 22.5A max., worst case load transient is from 15A to 22.5A
ΔVout: 1.5% of Vout (27mV) for worst case load transient
Vin, ripple 1.5% of Vin (180mV, p-p)
CI1
2x22 μF/16V ceramic capacitor (e.g. TDK C Series)
CI2 100 μF/16V bulk electrolytic
CO1 3x47 μF/6.3V ceramic capacitor (e.g. TDK C Series, Murata GRM32ER60J476ME20)
CO2 2x470 μF/4V Polymer/poscap, Low EST (e.g. Sanyo Poscap 4TPE470MCL/4TPF470ML)
CTune 15nF ceramic capacitor
RTune 430 ohms SMT resistor
RTrim 8k Ω SMT resistor (recommended tolerance of 0.1%)
